Feature

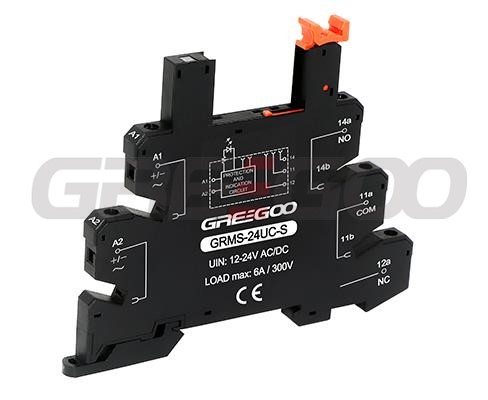

PLC Interface Solid State Relay Base
- Ultra-thin design with a thickness of only 6.40mm
- Multiple control voltages available: 12VUC, 24VUC, 230VUC
- DIN rail mounting
- Non-polarized wiring for DC power supply at the control terminal
- Control and load terminals can use busbars for up to 20 bridge connections
- Screw-tightened wiring
- Safe isolation between control and load terminals
- One changeover port
- LED operating status indicator
Specification

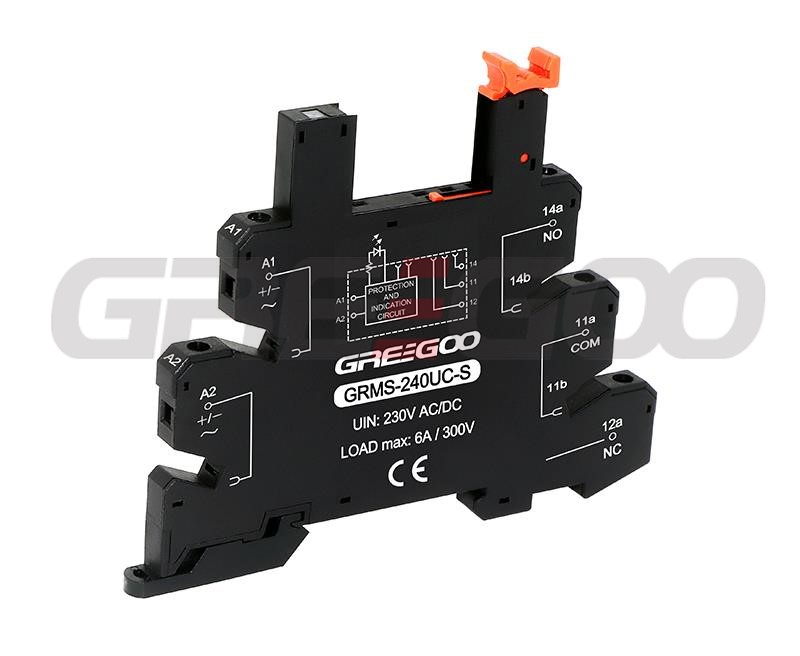

| Parameter | GRMS-24UC-S | GRMS-240UC-S |
| Control Voltage | 12V-24V AC/DC ±10% | 230V AC/DC ±10% |
| Load Voltage | 300VAC | 300VAC |
| Load Current | 6A | 6A |
| Operating Status Indicator | LED | LED |
| Coil Voltage for Relay Replacement | 12VDC / 24VDC | 12VDC / 24VDC |
| Contact Type | 1 Changeover Contact | 1 Changeover Contact |
| Wire Type | Soft, Hard/Single-strand, Multi-strand Copper Wire | Soft, Hard/Single-strand, Multi-strand Copper Wire |
| Flame Retardant Rating | V0 | V0 |
| Protection Rating | IP20 | IP20 |
| Insulation Voltage | 4KV(1Min) | 4KV(1Min) |
| Wiring Method | Screw Connection | Screw Connection |
| Tightening Torque | 0.4Nm | 0.4Nm |
| Max Wiring Cross-section | 2.5mm² | 2.5mm² |
| Installation Method | DIN Rail Mounting (TS35) | DIN Rail Mounting (TS35) |

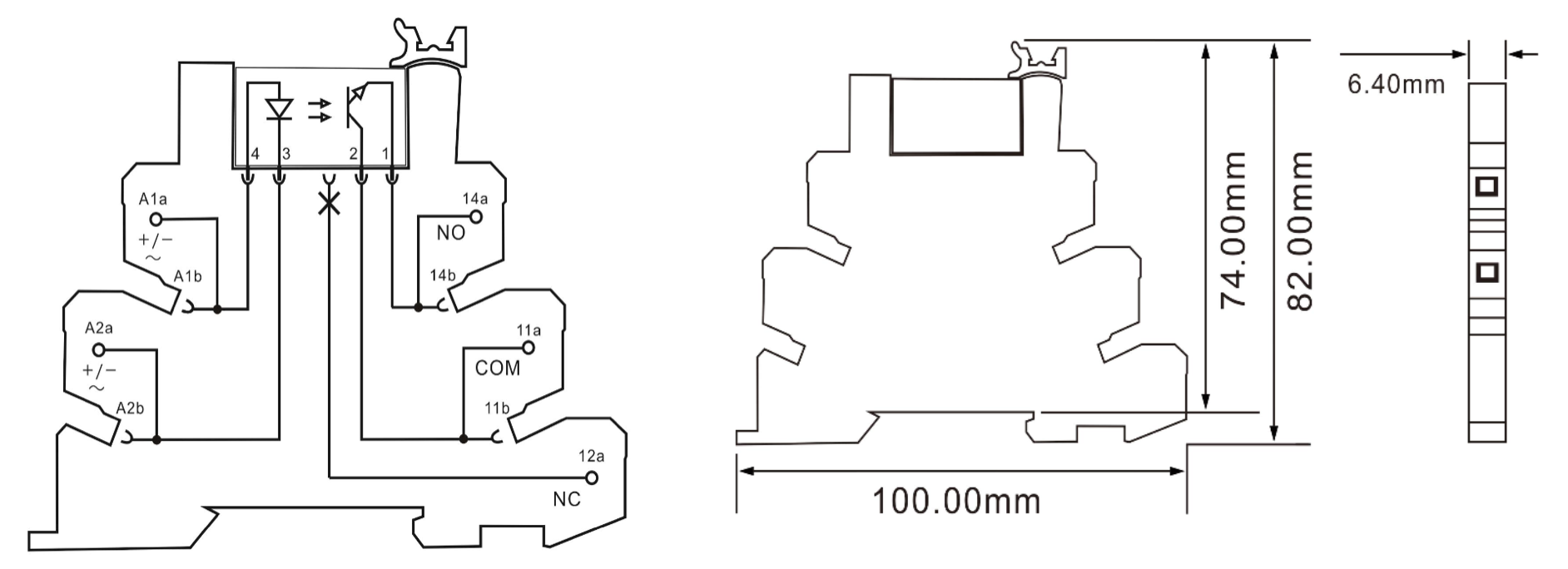

Diagram & Dimension
