MOS420N10P Mosfet Module
Home Products SOT-227B SOT-227 PackagePower MOSFET moduleMOS420N10P Mosfet Module

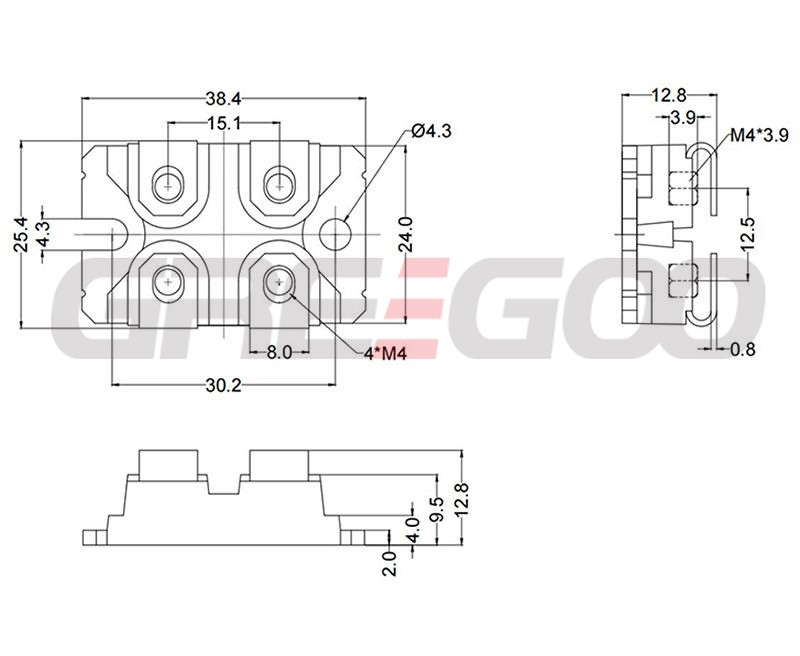

MOS420N10P Mosfet Module
Features:
- High power density
- Easy to mount
- Easy to use and parallel
- Fast intrinsic Rectifier
- Very short recovery time
- Isolation voltage 2500 VAC
- International standard package
Applications:
- DC-DC converters
- DC choppers
- Pulse generators
- Switched-mode and resonant-mode power supplies
Absolute Maxinmun Ratings
(Tc=25℃ unless otherwise specified)
Symbol |
Parameter |
Test Cobditions |
Value |
Units |
VDSS |
Drain-to-Source Voltage |
TJ = 25°C TJ =150°C |
100 |
V |
VGSS |
Gate-to-Source Voltage |
|
±20 |
V |
ID |
Continuous Drain Current |
TC=25 ℃ |
420 |
A |
IDM |
Pulsed Drain Current |
TC=25 ℃ |
1000 |
A |
EAS |
Single Pulse Avalanche Energy |
TC=25 ℃ |
4.2 |
J |
PD |
Maximum Power Dissipation ( TC=25 ℃) |
|
1100 |
W |
TJ |
Operating Junction Temperature Range |
|
-55 to 150 |
℃ |
TSTG |
Storage Temperature Range |
|
-55 to 150 |
℃ |
Visol |
Isolation Breakdown Voltage |
AC,50Hz,RMS,t=1min |
2500 |
V |
Torque |
Module to Sink |
M4 |
1.0-1.5 |
Nm |
Module Electrodes |
1.0-1.5 |
Nm |
||
Weight |
|
|
30 |
g |
Rthjc |
Junction to Case Thermal Resistance |
|
0.13 |
℃/w |
RthCK |
Case-to-Heat sink Thermal Resistance |
|
0.05 |
℃/w |
Electrical Characteristics (TC=25℃ unless otherwise noted )
Symbol |
Parameter |
Test Conditions |
Min. |
Typ. |
Max. |
Units |
BVDSS |
Drain-to-Source Breakdown Voltage |
VGS= 0V, ID= 250uA |
100 |
- |
- |
V |
IDSS |
Drain-to-Source Leakage Current |
VDS= 100V, VGS= 0V |
- |
- |
5 |
uA |
IGSS |
Gate-to-Source Leakage Current |
VGS=20V, VDS= 0V |
- |
- |
100 |
nA |
|
|
VGS= -20V, VDS= 0V |
- |
- |
-100 |
nA |
VGS(th) |
Gate Threshold Voltage |
VGS= VDS, ID= 250uA |
2.0 |
- |
4.0 |
V |
VRD(ON) |
Static Drain-to-Source On-Resistance
|
VGS=10V, IC=200A |
- |
- |
3.5 |
mΩ |
gfs
|
Forward Transconductance |
VDS=15V,ID=100A |
|
90 |
|
S |
Qg |
Total Gate Charge |
VDD=50V, ID=100A, VGS=10V
|
- |
242 |
|
nC |
Qgs |
Gate-to-Source Charge |
|
- |
60 |
|
nC |
Qgd |
Gate-to-Drain (Miller) Charge |
|
- |
135 |
|
nC |
t d(on) |
Turn-on Delay Time |
VDD=50V, ID=60A, VGS=10V Rg=3.3Ω |
- |
50 |
- |
ns |
t r |
Turn-on Rise Time |
|
- |
100 |
- |
ns |
t d(off) |
Turn-off Delay Time |
|
- |
110 |
- |
ns |
t f |
Turn-off Fall Time |
|
- |
230 |
- |
ns |
Ciss |
Input Capacitance |
VGS=0V, VDS=25V, f=1.0MHZ |
- |
50 |
- |
nF |
Coss |
Output Capacitance |
|
- |
4200 |
- |
pF |
Crss |
Reverse Transfer Capacitance |
|
- |
600 |
- |
pF |
Source-Drain Diode(TC=25℃ unless otherwise noted)
Symbol |
Parameter |
Test Conditions |
Min. |
Typ. |
Max. |
Units |
ISD |
Continuous Source Current
|
|
|
|
420 |
A |
ISM |
Pulsed Source Current |
|
|
|
1600 |
|
VSD |
Diode Forward Voltage |
IS=200A,VGS = 0V
|
- |
- |
1.5 |
V |
t r r |
Reverse Recovery Time |
VR = 50V IF= 25A, di/dt=100A/μs |
- |
150 |
|
ns |
I RM |
Diode peak Reverse Recovery Current |
|
- |
8 |
|
A |
Qr r |
Reverse Recovery Charge |
|
- |
0.48 |
|
uC |
