Model Rated voltage ratio KV Accuracy class Rated capacity VA Max capacity VA Rated insulation level KV
JDZ11-15 15/0.1/0.22 0.2/3 15/500 700 17.5/55/105
0.5/3 30/500


LZZBW-15 voltage transformer is suitable for AC power system with rated frequency of 50Hz or 60Hz and rated voltage of 15kV for electric energy measurement, voltage measurement and relay protection.

Installation place: indoors

Ambient temperature: the highest temperature is 40 ℃ , the lowest temperature is -5 ℃ , dailyaverage temperature does not exceed 30℃ .

Atmospheric conditions: There is no serious pollution in the atmosphere.

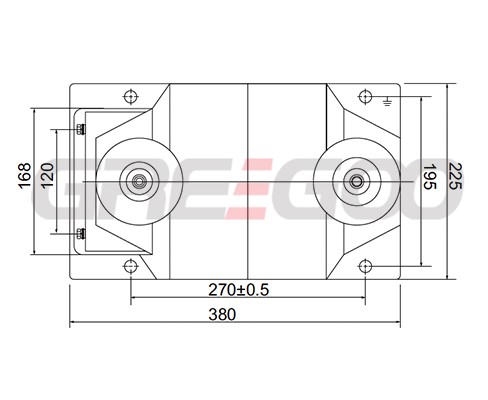

This series of voltage transformers is a pillar type structure, which is fully enclosed with epoxy resin, which is resistant to pollution and humidity. It is also suitable for use in tropical areas. The transformer does not require special maintenance, and the creepage distance at the secondary outlet terminal of the transformer is long, can do power frequency withstand voltage test.
