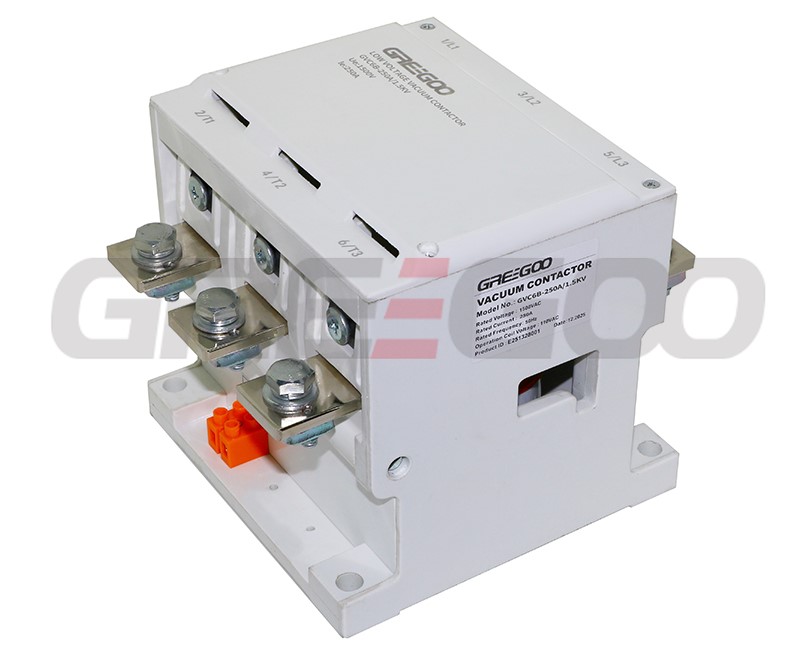

GVC6B-250A/1.5KV Vacuum Contactor
Home Products Vacuum ContactorAdvanced type Vacuum Contactor (GVC6)GVC6B-250A/1.5KV Vacuum Contactor
Product details
GVC6B-250A/1.5KV Vacuum Contactor
| Part numbers | GVC6B-250A/1.5KV | |
| Nominal Current | A | 250 |
| Nominal Voltage | kV | 1.5 |
| Rated Making Capacity | A | 2500 |
| Rated Breaking Capacity | A | 2000 |
| Pick-up power | VA | 350 |
| Holding Power | W | 15 |
| Mechanical Life | Cycles | 1×106 |
| Electric Life | Cycles | 6×104 |
| Control Power Voltage | V(AC/DC) | 36/110/127/220/380 |
| Auxiliary contacts | 4NO 3NC | |
| Auxiliary contacts capacity | AC-15: Ue: AC380V le:1A DC-13: Ue: DC250V le:0.8A |
|
| Weight | Kg | 8 |
| Dimensions | mm | 181x180x175 |

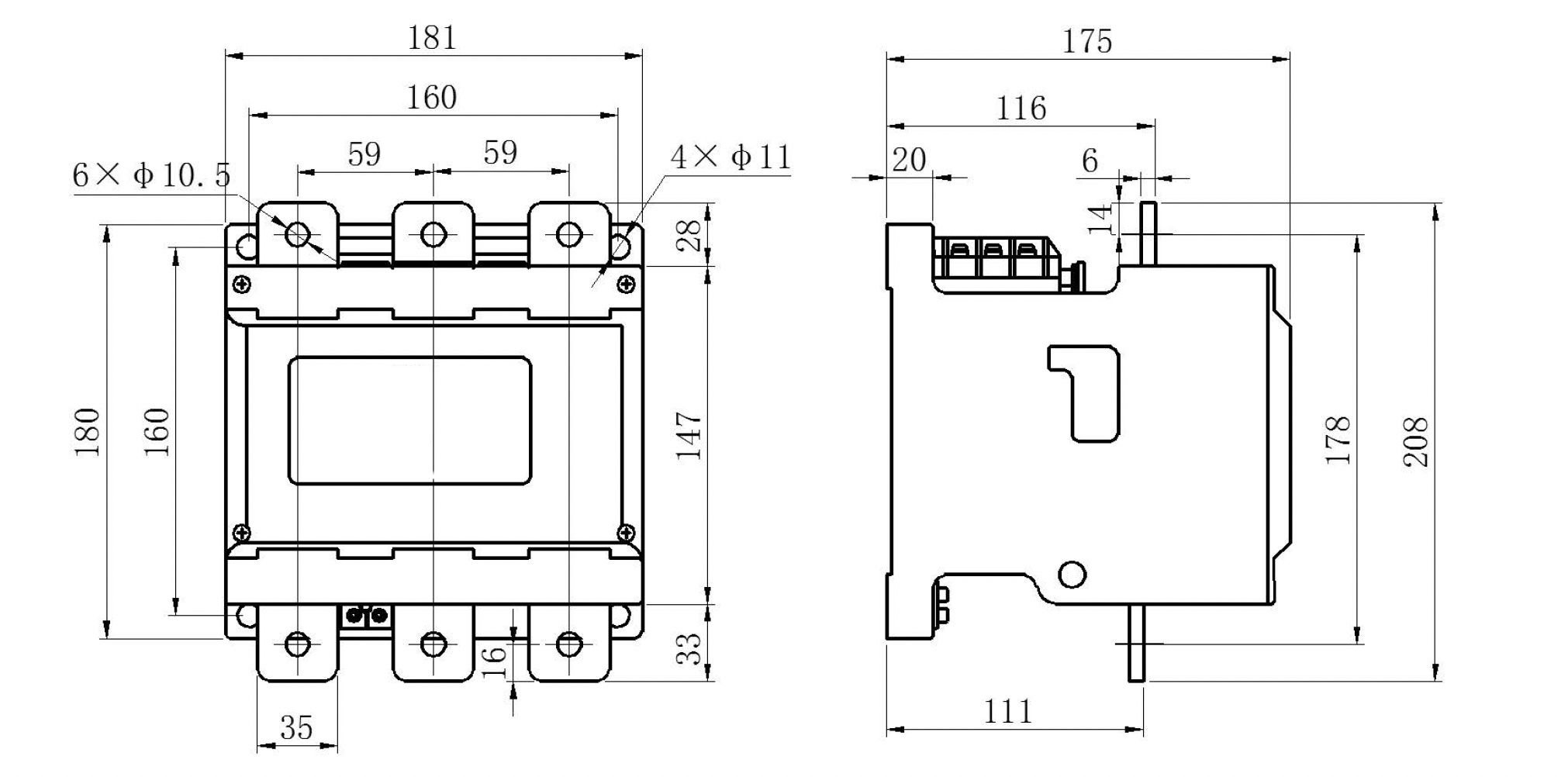

Dimensions
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products
GVC6B-400A/1.5KV Vacuum Contactor
GVC6B-400A/1.5KV Vacuum Contactor
GVC6E-800A/1.5KV Vacuum Contactor
GVC6E-800A/1.5KV Vacuum Contactor

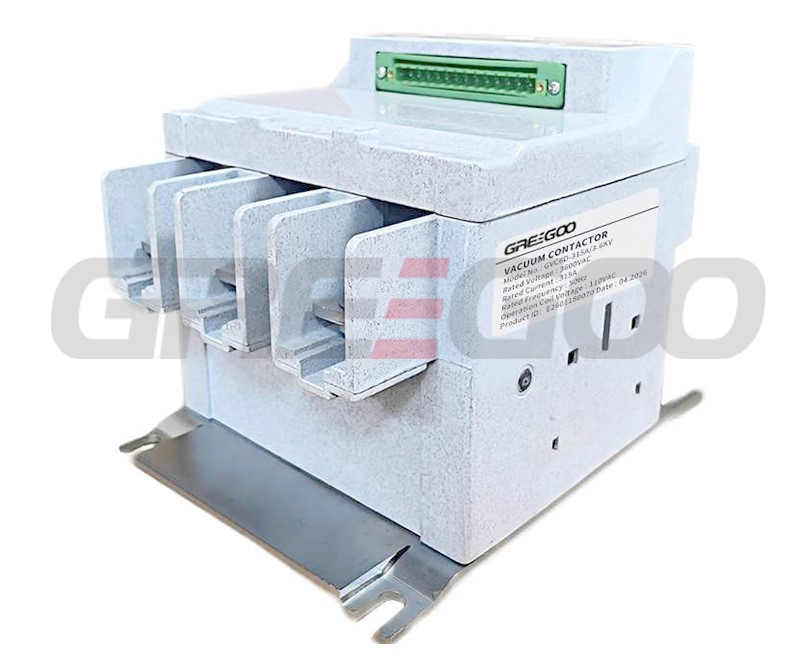

GVC6D-315A/3.6KV Vacuum Contactor
GVC6D-315A/3.6KV Vacuum Contactor

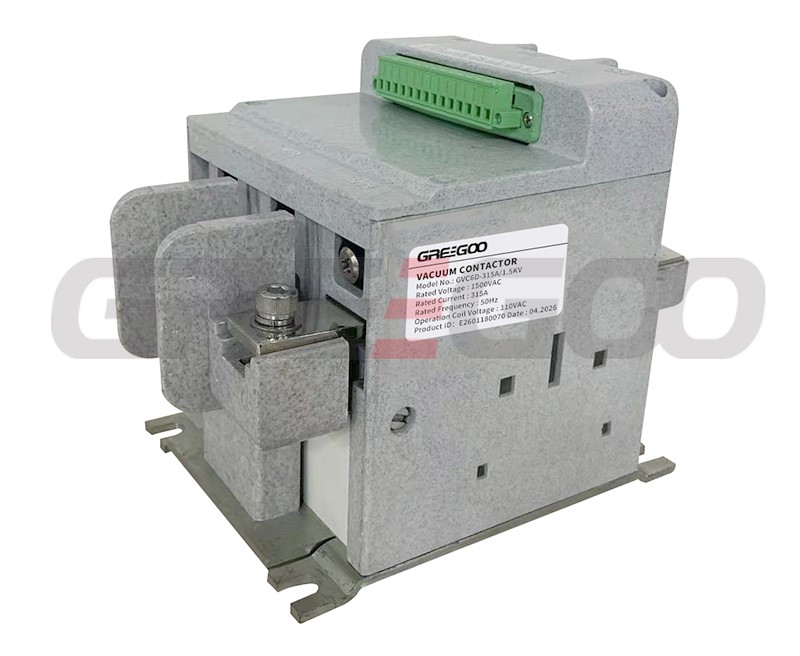

GVC6D-315A/1.5KV Vacuum Contactor
