Product Details

1.5KV Vacuum Contactor 160A 250A 400A

GVC11 series Vacuum Contactor and starter are full closed product adopting new technology, which have the characteristics of high operating voltage, small size, stability, long life, reliability, low pick-up power, low circuit resistance and easier maintenance etc.

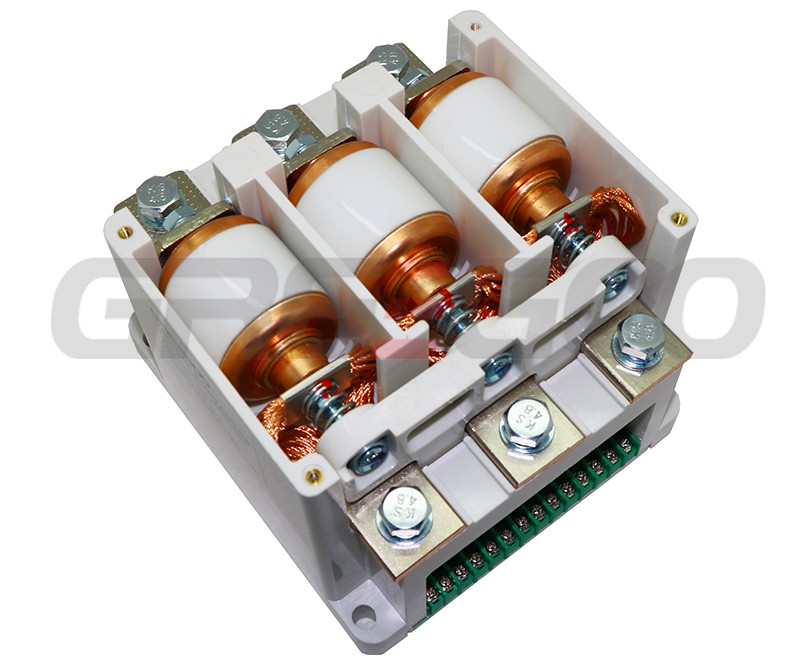

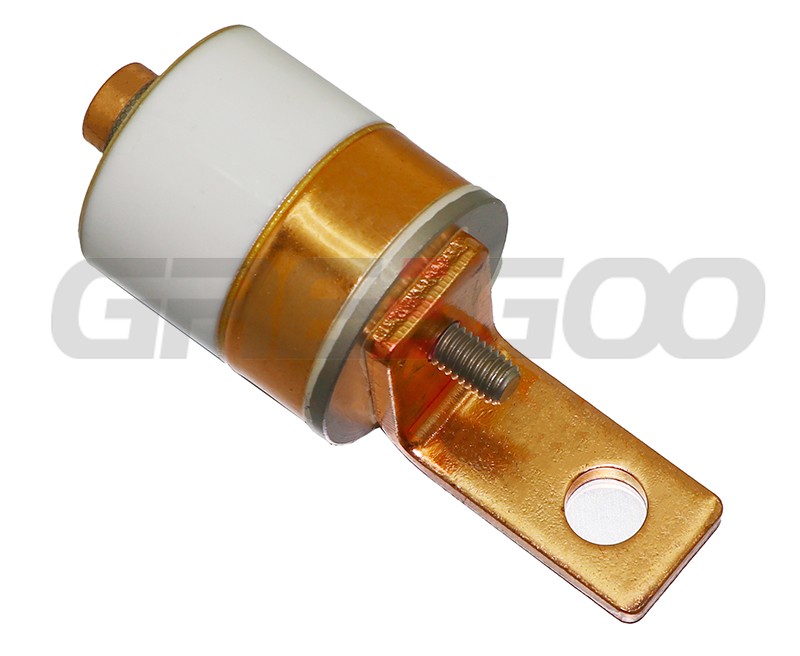

GVC11-160A/1.5KV Vacuum Contactors

Rated working voltage	kV	1.5
Rated working current	A	160
Rated making capability	A/50 times	1600
Rated breaking capability	A/50 times	1280
Limited breaking capacity	A/3 times	1600
Pick-up power	W (transient)	265
Hold power	A	30
Mechanical life	times	1x106
Electrical life	times	6x104
Weight	kg	3.5
Control power voltage	V(AC)	110,220
Auxiliary switch	3NO 1NC
Auxiliary contact capacity	AC-15:Ue:AC380V le:0.7A
Auxiliary contact capacity	DC-13: Ue:DC220V le:0.1A

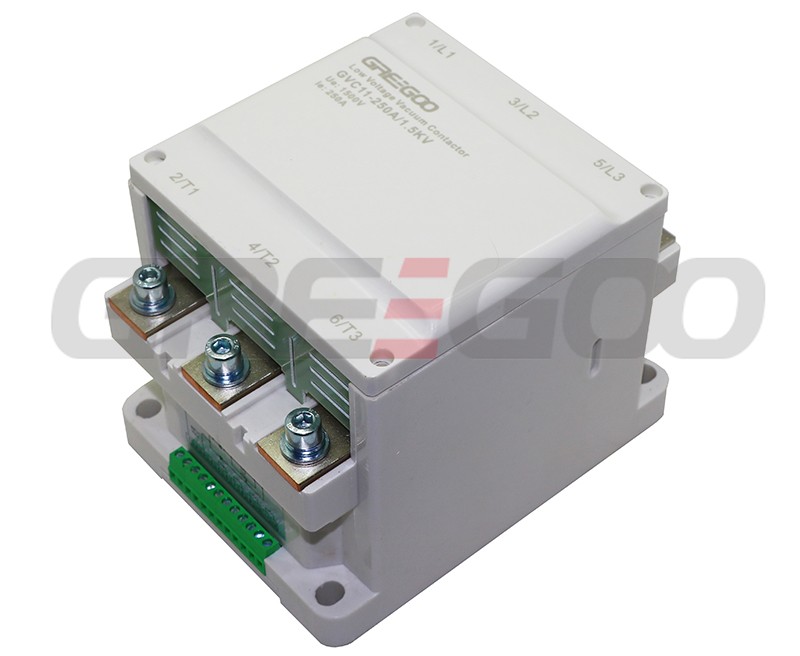

GVC11-250A/1.5KV Vacuum Contactors

Rated working voltage	kV	1.5
Rated working current	A	250
Rated making capability	A/50 times	2500
Rated breaking capability	A/50 times	2000
Limited breaking capacity	A/3 times	2500
Pick-up power	W (transient)	265
Hold power	A	30
Mechanical life	times	1X106
Electrical life	times	6X104
Weight	kg	5
Control power voltage	V(AC)	110,220
Auxiliary switch	3NO 1NC
Auxiliary contact capacity	AC-15:Ue:AC380V le:0.7A
Auxiliary contact capacity	DC-13: Ue:DC220V le:0.1A

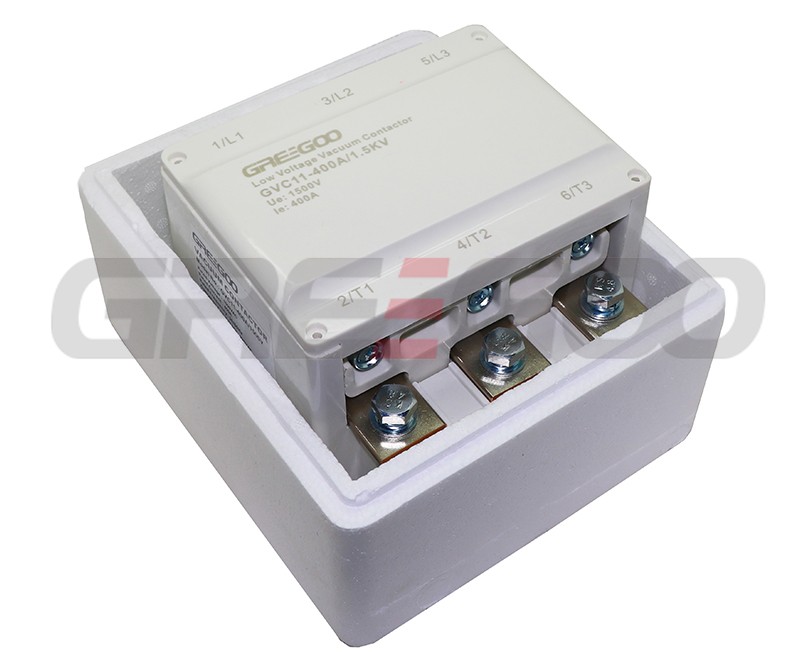

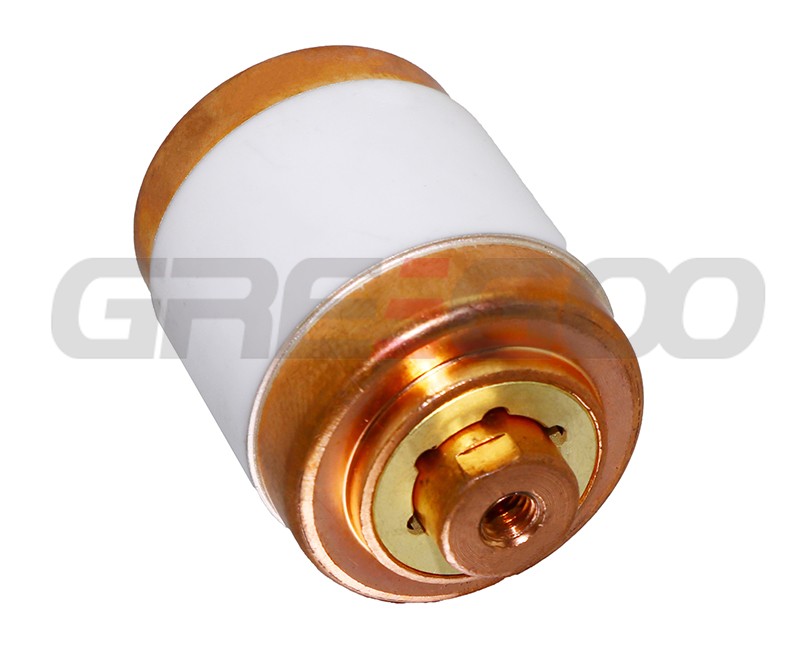

GVC11-400A/1.5KV Vacuum Contactors

Rated working voltage	kV	1.5
Rated working current	A	400
Rated making capability	A/50 times	4000
Rated breaking capability	A/50 times	3200
Limited breaking capacity	A/3 times	4500
Pick-up power	W(transient)	342
Hold power	A	38
Mechanical life	times	1X106
Electrical life	times	6X104
Weight	kg	7.5
Control power voltage	V(AC)	110,220
Auxiliary switch	4NO 2NC
Auxiliary contact capacity	AC-15:Ue:AC380V le:0.7A
Auxiliary contact capacity	DC-13:Ue:DC220V le:0.1A
