Product details

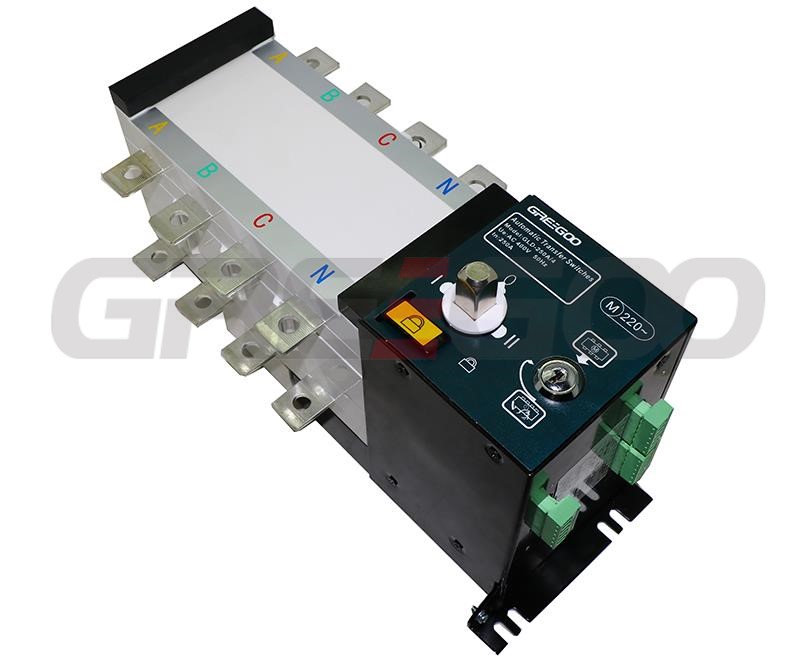

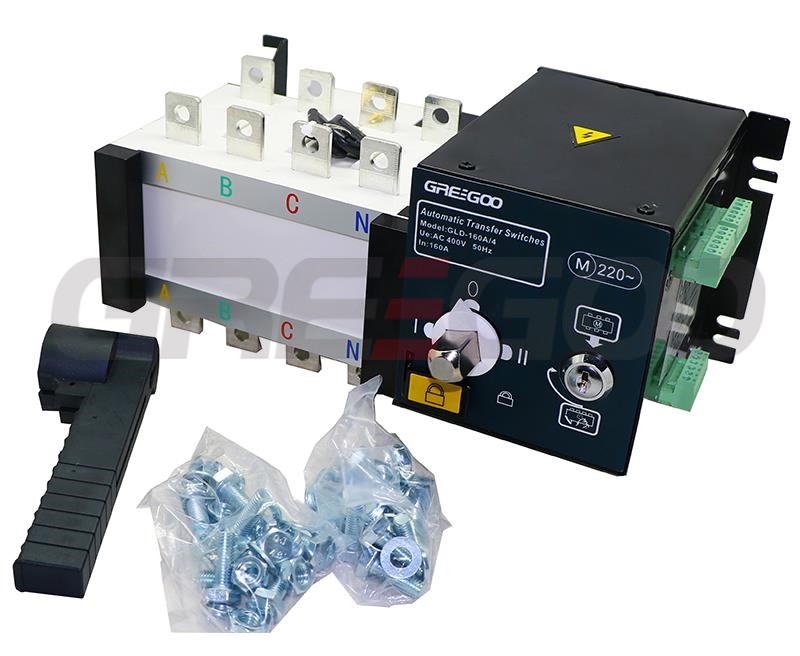

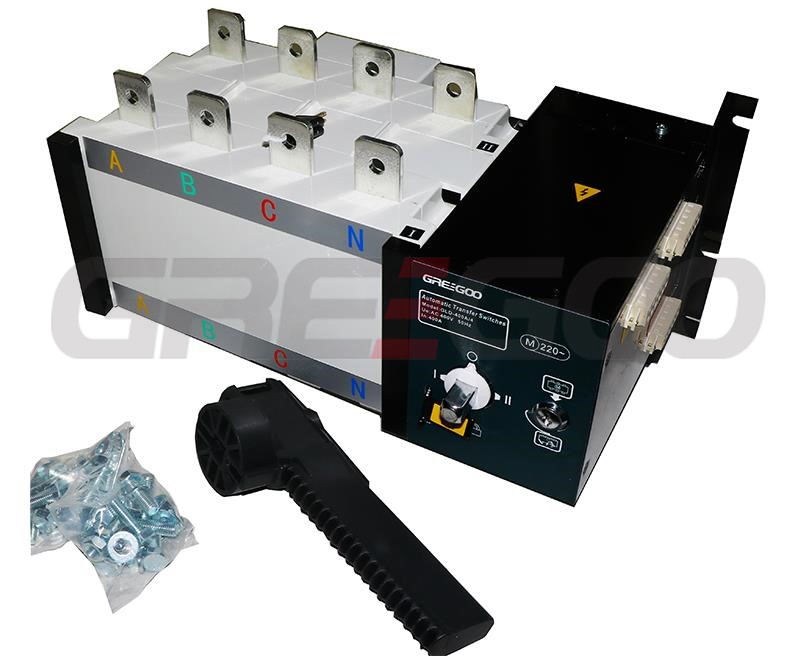

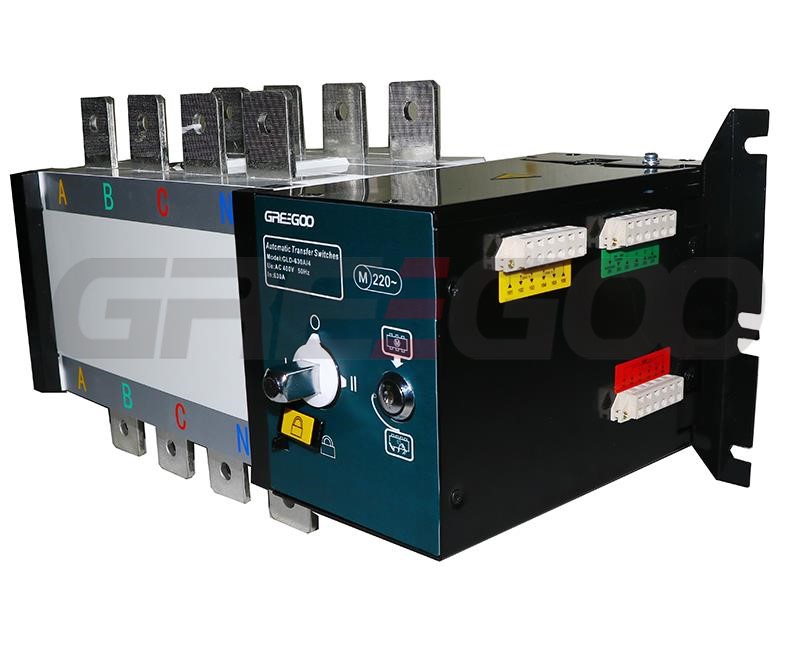

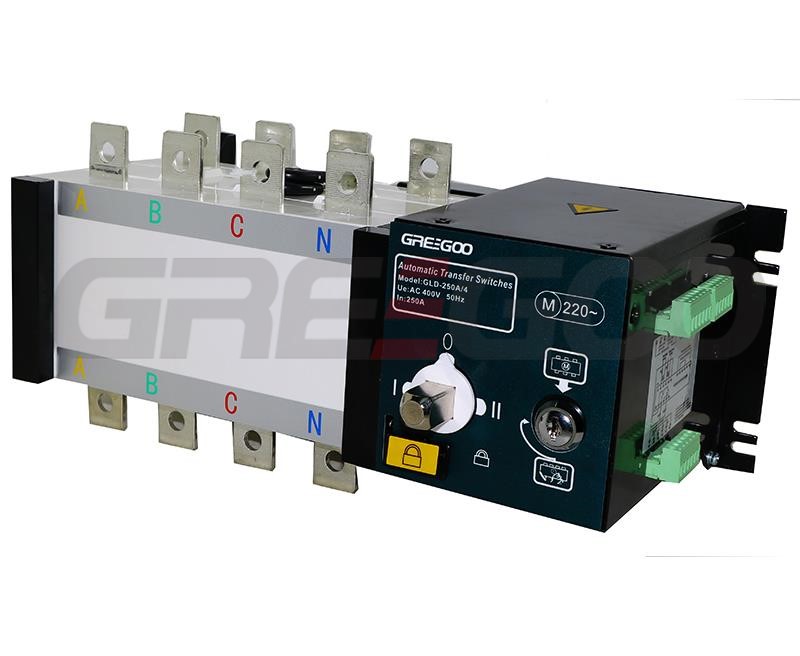

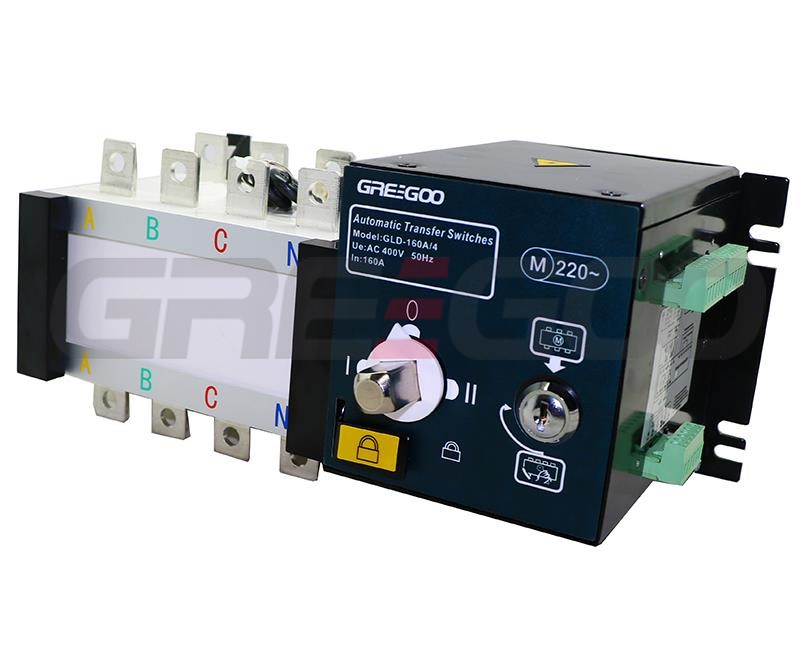

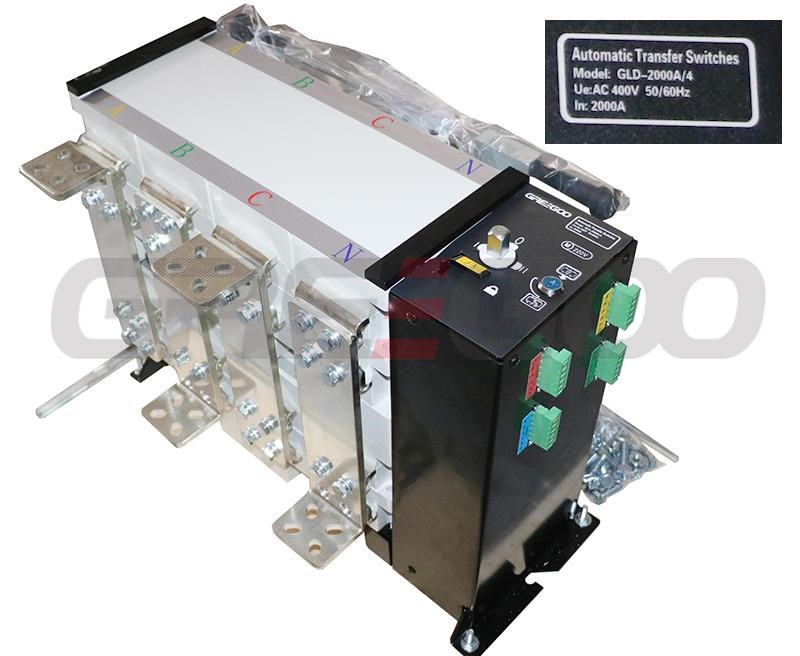

GLD 100A to 3200A Automatic Transfer Switch

The GLD series automatic transfer switch device integrates switching and logic control into one unit, eliminating the need for an external controller and enabling electromechanical integration. It features voltage detection, frequency detection, communication interface, fire feedback, and electrical and mechanical interlock functions, allowing for automatic, electric remote, and emergency manual control.

The operation is managed by a logic control board that executes various logic commands to control the motor and gearbox operations. The motor drives the switch spring energy storage and instant release acceleration mechanism, enabling rapid circuit connection, disconnection, or conversion. This is achieved through a clearly visible state for safe isolation, significantly enhancing electrical and mechanical performance.

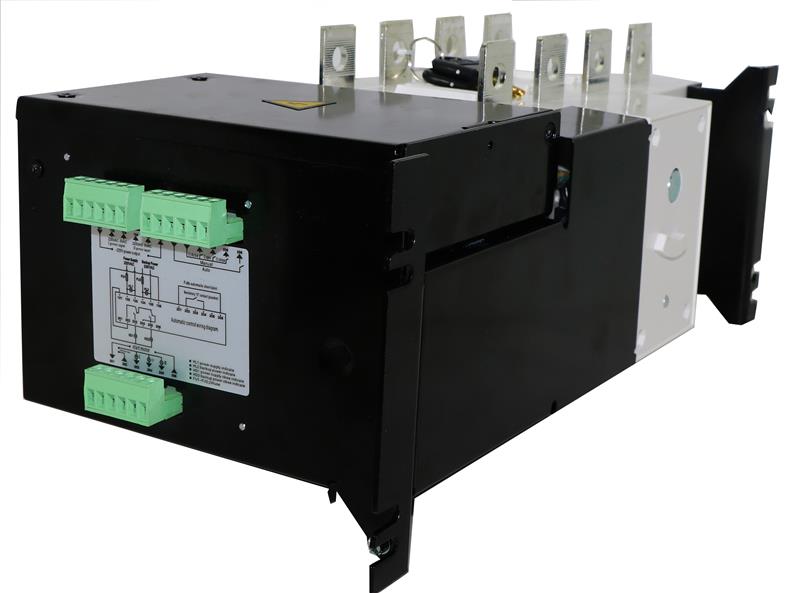

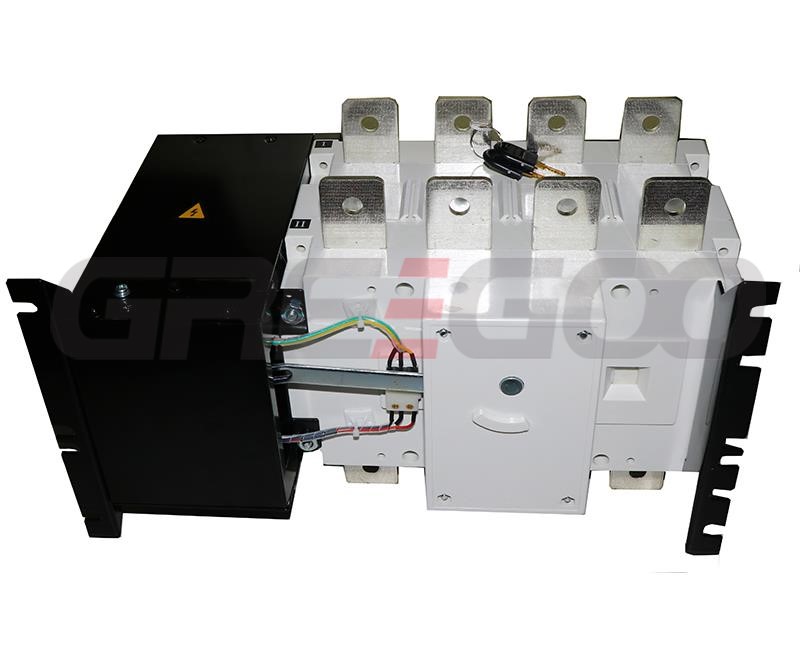

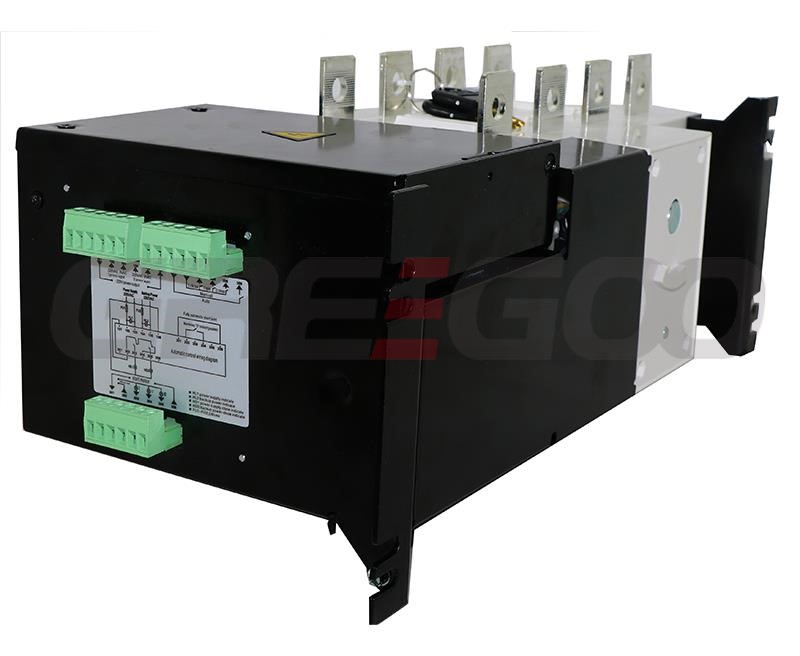

Switches rated below 100A are designed with a compact and sturdy metal casing. For switches rated above 100A, the control part is housed in a metal casing and offers both automatic and electric control modes. The switch part is made with an unsaturated polyester glass fiber reinforced molded plastic casing, providing strong dielectric performance, protection capability, and reliable operational safety.

The switch is suitable for automatic transfer between the main power supply and backup power supply in power systems, or for automatic transfer and safe isolation between two load devices. The switch is aesthetically pleasing, simple, and compact in size.

GLD 100-3200A ATS
Part Numbers: 3P GLD-100A/3 GLD-125A/3 GLD-160A/3 GLD-250A/3 GLD-400A/3 GLD-630A/3 GLD-800A/3 GLD-1000A/3 GLD-1250A/3 GLD-1600A/3 GLD-2000A/3 GLD-2500A/3 GLD-3200A/3
Part Numbers: 4P GLD-100A/4 GLD-125A/4 GLD-160A/4 GLD-250A/4 GLD-400A/4 GLD-630A/4 GLD-800A/4 GLD-1000A/4 GLD-1250A/4 GLD-1600A/4 GLD-2000A/4 GLD-2500A/4 GLD-3200A/4
Rated Current: 100A 125A 160A 250A 400A 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A
Rated Insulation Voltage U1 750V 750V 750V 750V 750V 750V 1000V 1000V 1000V 1000V 1000V 1000V 1000V
Rated Impaction Withstand Voltage Uimp 8KV 8KV 8KV 8KV 8KV 8KV 12KV 12KV 12KV 12KV 12KV 12KV 12KV
Rated Working Voltage Ue AC440V AC440V AC440V AC440V AC440V AC440V AC440V AC440V AC440V AC440V AC440V AC440V AC440V
Rated Working Current AC-31A 100 125 160 250 400 630 800 1000 1250 1600 2000 2500 3200
Rated Working Current AC-35A 100 125 160 250 400 630 800 1000 1000 1250 1250 2000 2500
Rated Working Current AC-33A 100 125 160 250 400 400 800 1000 1000 1000 1000 1250 1250
Rated Making Capacity 10Ie 10le 10le 10le 10le 10le 10le 10le 10le 10le 10le 10le 10le
Rated Breaking Capacity 8Ie 8le 8le 8le 8le 8le 8le 8le 8le 8le 8le 8le 8le
Rated Limiting Short-Circuit Current 100KA 100KA 100KA 100KA 70KA 70KA 100KA 100KA 120KA 120KA 120KA 120KA 120KA
Rated Short Time Withstand Current IS 7KA 7KA 9KA 9KA 13KA 13KA 26KA 26KA 80KA 80KA 80KA 80KA 80KA
Change-Over Time 0.6s 0.6s 0.6s 0.6s 0.6s 1.2s 1.2s 1.2s 1.2s 1.2s 2.4s 2.4s 2.4s
Voltage of Control Power Supply AC220V AC220V AC220V AC220V AC220V AC220V AC220V AC220V AC220V AC220V AC220V AC220V AC220V
Energy Consumption of the Motor Start 330W 330W 325W 355W 355W 355W 400W 440W 600W 600W 600W 600W 600W
Energy Consumption of the Motor Continuous 55W 55W 62W 74W 74W 74W 90W 98W 120W 120W 120W 120W 120W
Weight 3P Kg 7.5 7.5 8.8 9 16.5 17 32 36 40 49 95 98 135
