G75FF120TK-G5 IGBT Module
Home Products IGBT Power ModuleBest Selling IGBT ModulesG75FF120TK-G5 IGBT Module
Product details

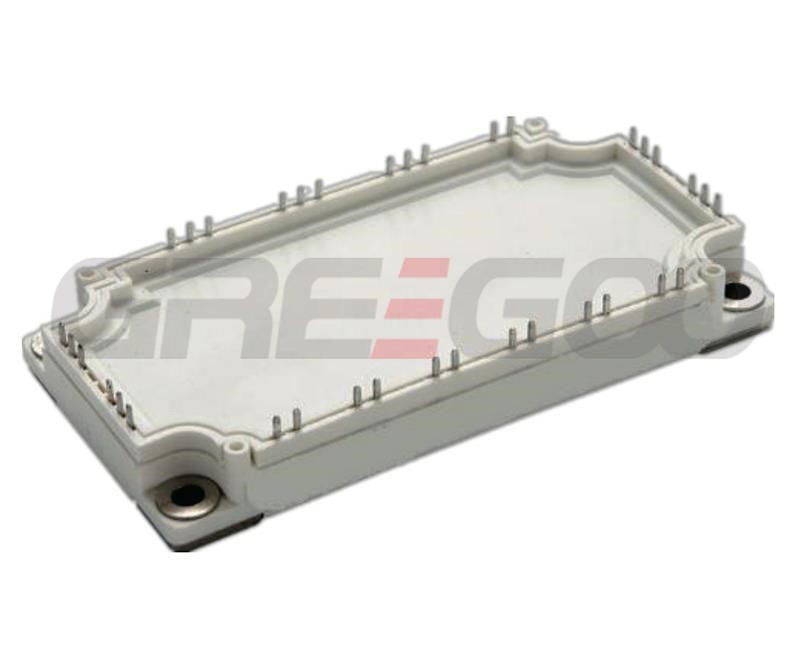

G75FF120TK-G5 IGBT Module
Features
High short circuit capability,self limiting short circuit current
IGBT CHIP(Highly rugged SPT design)
VCE(sat) with positive temperature coefficient
Ultra Low Loss, High ruggedness
Free wheeling diodes with fast and soft reverse recovery
Temperature sense included
Applications
AC motor control
Inverter and power supplies
Motion/servo control

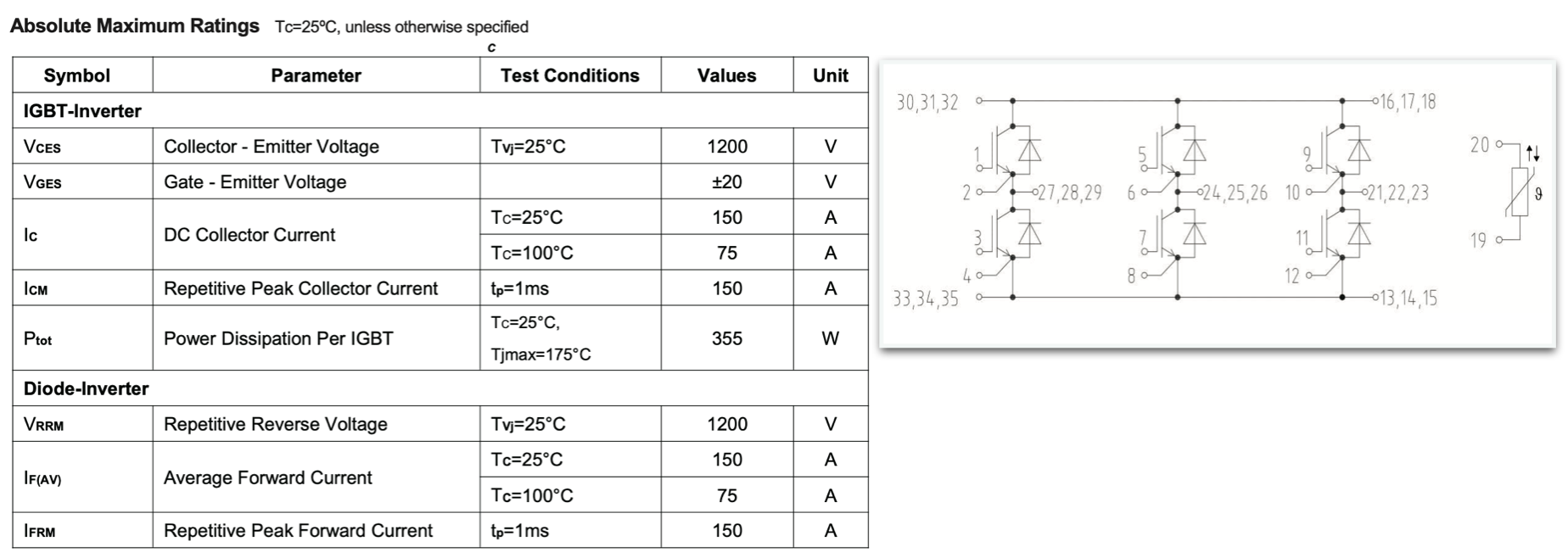

Specification
