G15P12P2 G10P12P2 IGBT Module
Home Products IGBT Power ModuleMore IGBT Modules Replacement ListG15P12P2 G10P12P2 IGBT Module
G15P12P2 G10P12P2 IGBT Module
Applications
Motor Drivers
AC and DC Servo Drive Amplifier
UPS (Uninterruptible Power Supplies)
Features
Low switching losses
Low VCE(sat) with positive temperature coefficient
Including fast & soft recovery anti-parallel FWD
Low inductance case
High short circuit capability(10us)
Isolated heatsink using DBC technology
Maximum junction temperature 175℃

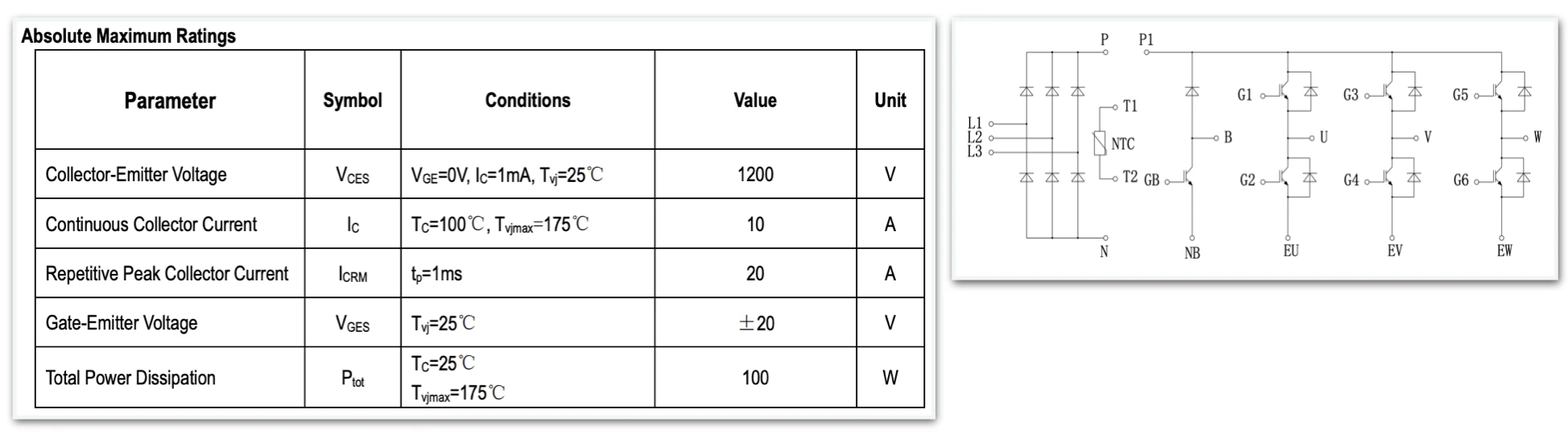

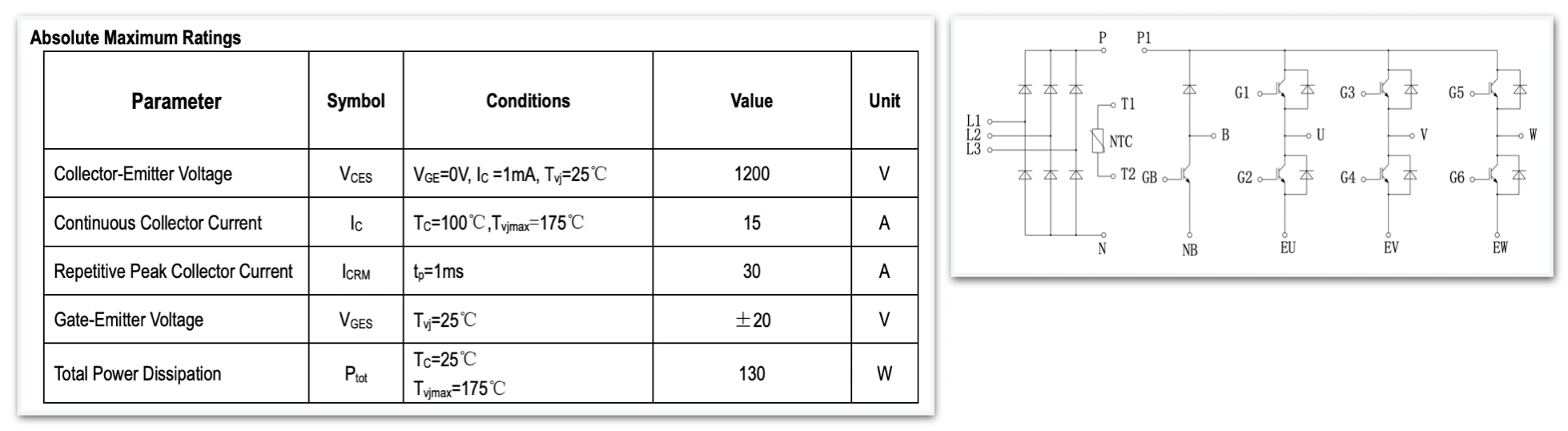

| Part Number | Collector-Emitter Voltage VCES min. (V) |
Collector Current Ic @ Tc=80℃ (A) |
Saturation Voltage VCE(sat) typ. (V) |
Switching Energy Loss Eon Eoff typ. Tj=125℃ (mJ) |
Max Junction-to-Case Thermal Resistance Rthi-c max. (℃/W) |
Package |
| G30P065P2 | 650 | 30 | 1.65 | 1.24 | 0.62 | P2 |
| G10P12P2 | 1200 | 10 | 1.85 | 1.53 | 1.43 | P2 |
| G15P12P2 | 1200 | 15 | 1.85 | 2.58 | 1.05 | P2 |
| G20TF065P2 | 650 | 20 | 1.65 | 1.24 | 0.62 | P2 |
| G30TF065P2 | 650 | 30 | 1.65 | 1.81 | 0.44 | P2 |
| G25TF12P2 | 1200 | 25 | 1.85 | 4.55 | 0.38 | P2 |
| G35TF12P2 | 1200 | 35 | 1.85 | 6.25 | 0.27 | P2 |
| G30TL065P2 | 650 | 30 | 1.65 | 1.81 | 0.44 | P2 |
| G50TL065P2 | 650 | 50 | 1.65 | 2.57 | 0.37 | P2 |
Need more information?
Contact us to request pricing, availability and customization options.
