CM400DY-66H High Voltage IGBT Module

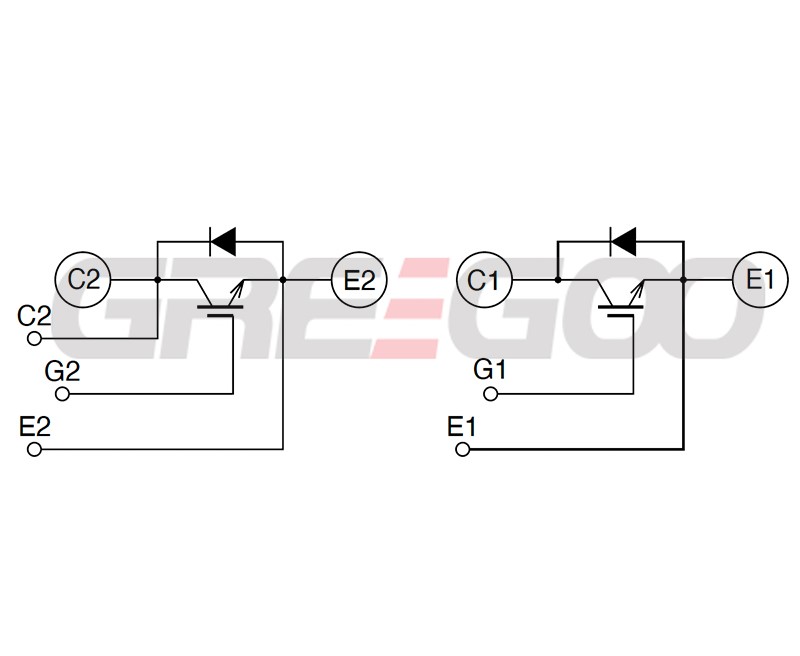

Configuration: Dual IGBT (two elements in a half-bridge pack) with built-in freewheeling diodes.

Collector-Emitter Voltage (Vces): 3300V.

Continuous Collector Current (Ic): 400A (at Tc = 60°C).

Max Collector Current (Pulse) (Icm): 800A.

Max Power Dissipation (Pc): 3400W (at Tc = 25°C, IGBT part).

Isolation Voltage (Viso): 6000V (rms, sinusoidal, AC 60Hz, 1 min).

Operating Junction Temperature (Tj): -40°C to 150°C.

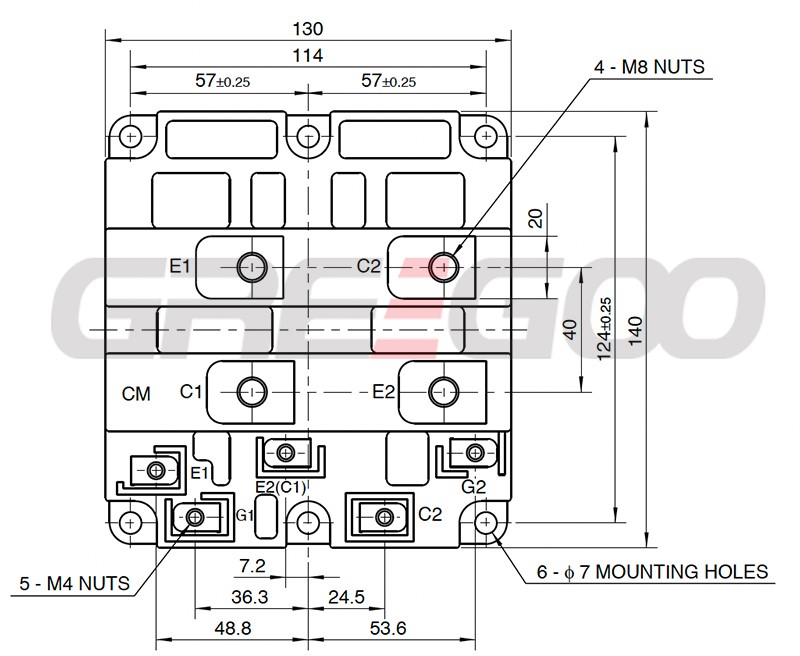

Mounting Type: Chassis mount (insulated baseplate).

Mass: Approximately 1.5 kg.

Features:

High Power Handling: Capable of handling high voltages and currents, suitable for heavy-duty industrial use.

Insulated Type: The insulated baseplate enhances thermal dissipation and ensures safer operation.

Durable Design: Built for long-term industrial use and designed to withstand thermal and electrical stress.

Applications:

Inverters, Converters, DC choppers, Induction heating, DC to DC converters, Railway traction systems
