Product Details

DSEI2X61-12P Fast Recovery Epitaxial Diode

Features
• Planar passivated chips
• Low leakage current
• Very short recovery time
• Improved thermal behaviour
• Very low Irm-values
• Very soft recovery behaviour
• Avalanche voltage rated for reliable operation
• Soft reverse recovery for low EMI/RFI
• Low Irm reduces:

Power dissipation within the diode
Turn-on loss in the commutating switch

Applications
• Antiparallel diode for high-frequency switching devices
• Antisaturation diode
• Snubber diode
• Free wheeling diode
• Rectifiers in switch mode power supplies (SMPS)
• Uninterruptible power supplies (UPS)

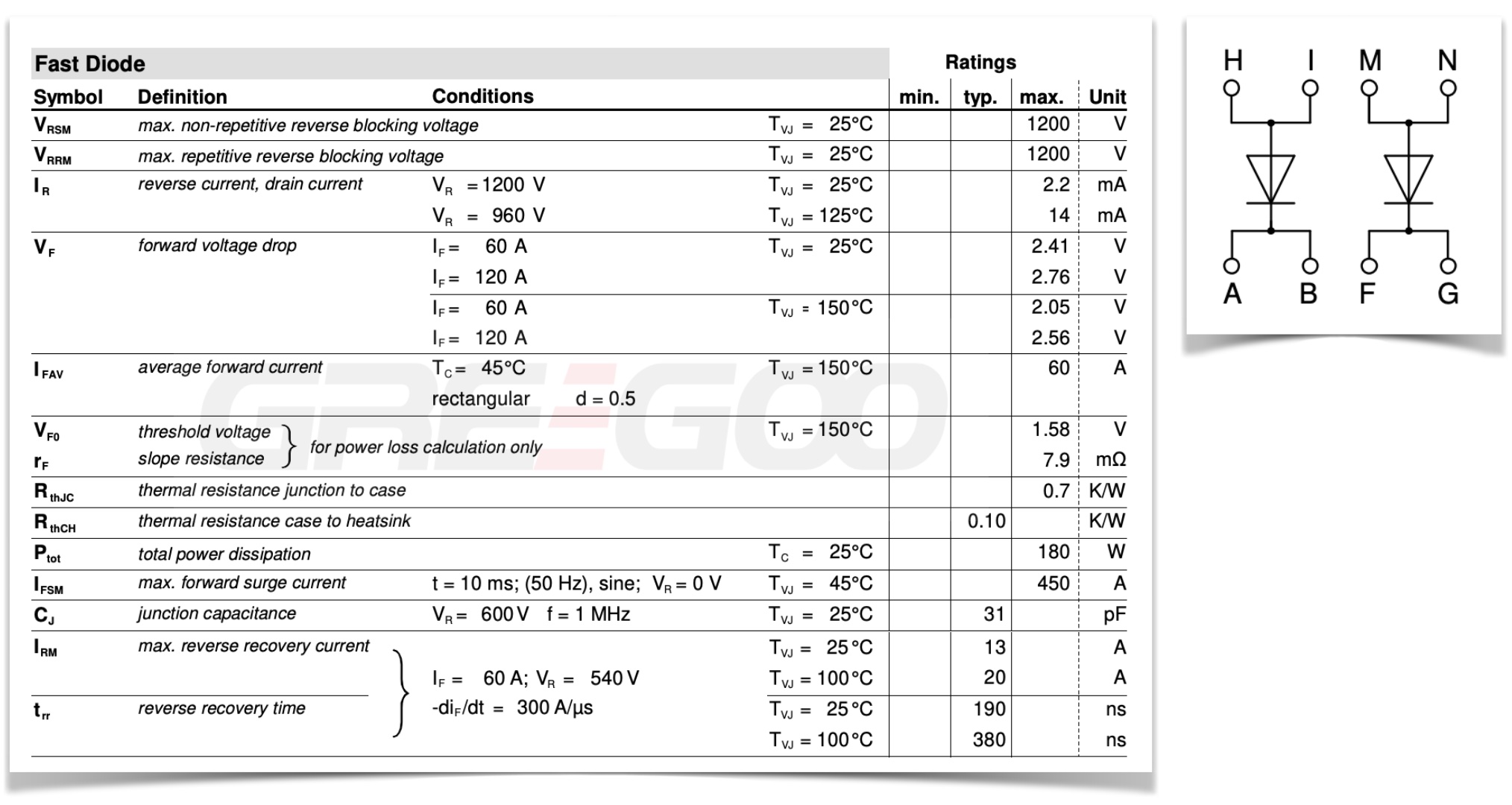

Specification

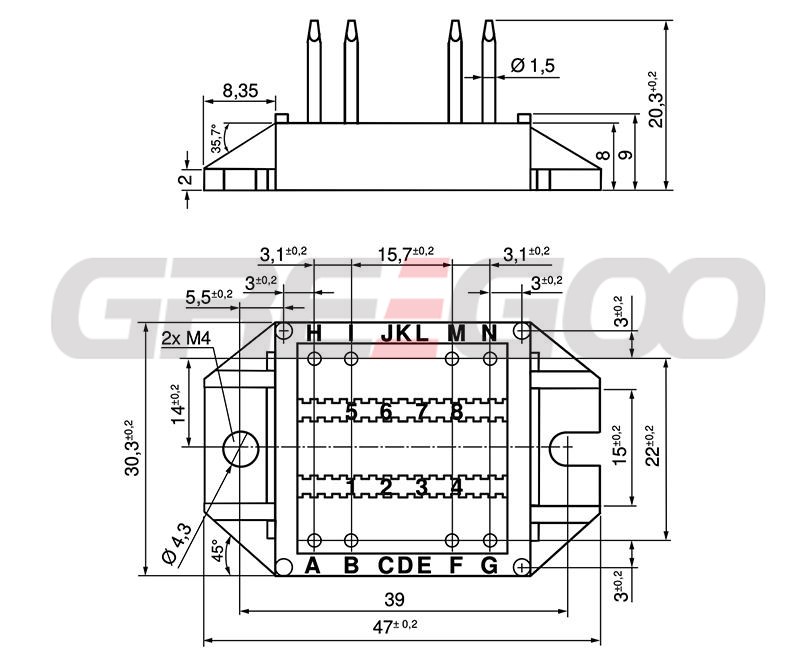

DSEI2X61-12P FRED Module

DSEI2X61-12P
