CMV10 miniature snap action switch

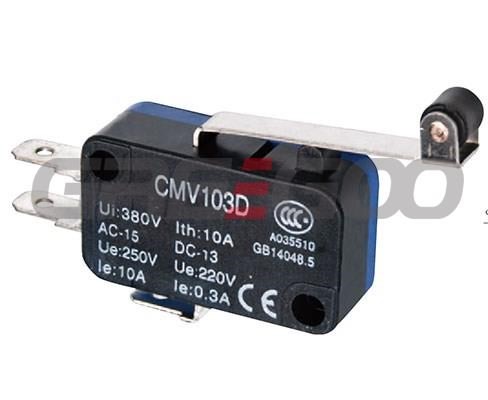

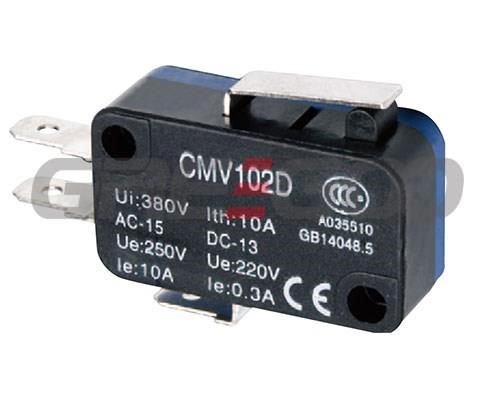

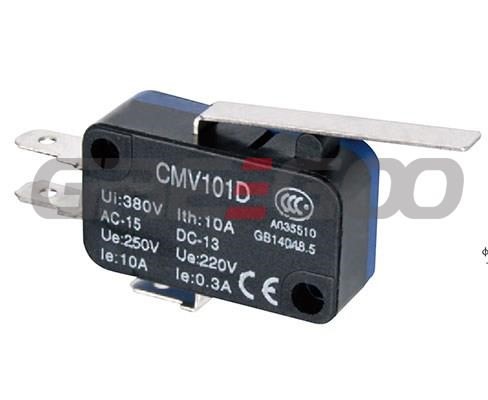

Models	CMV100D	CMV101D	CMV102D	CMV103D	CMV104D	CMV105D	CMV106D
OF (Max.)	2.4N	1.23N	2.4N	1.23N	2.7N	0.69N	1.2N
RF (Min.)	0.49N	0.14N	0.49N	0.14N	0.49N	0.06N	0.14N
PT (Max.)	1.2mm	4.0mm	1.6mm	4.0mm	1.5mm	9.0mm	4.0mm
OT (Min.)	1.0mm	1.6mm	0.8mm	1.6mm	0.8mm	2.0mm	1.5mm
MD (Max.)	0.4mm	1.5mm	0.6mm	1.5mm	0.6mm	2.8mm	1.5mm
OP(mm.)	14.7±0.4mm	15.2±1.2mm	15.2±0.5mm	20.7±1.2mm	20.7±0.6mm	15.2±3mm	18.7±1.2mm
