80KV high voltage vacuum relay

Home Products Vacuum Relay and Capacitor30KV to 80KV Vacuum Relay80KV high voltage vacuum relay

80KV high voltage vacuum relay
80KV high voltage vacuum relay
80KV high voltage vacuum relay
80KV high voltage vacuum relay
Specification

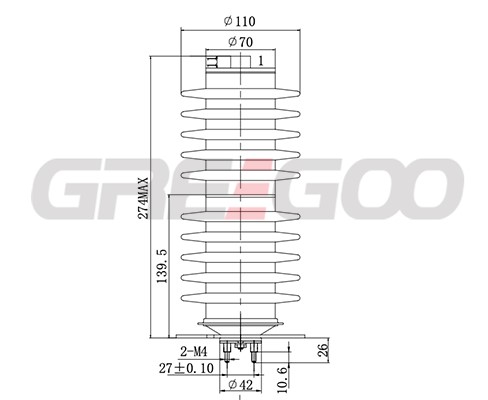

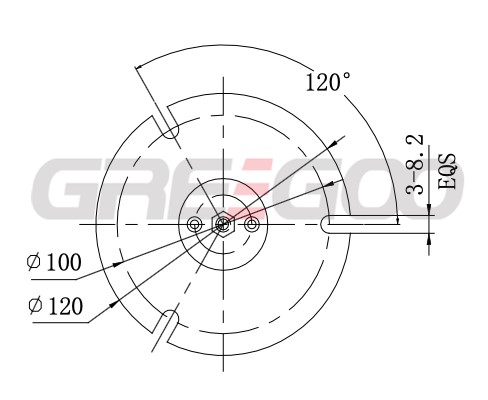

80KV high voltage vacuum relay

Product Specification

Unit

GHR-5/004

Contact Form



B

Contact Arrangement



SPST-NC

Test Voltage,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz)

KV Peak

100

Rated Operating Voltage,

(kV,Peak),
Contacts & to Base
(15 μA Leakage Max.)

DC or 60Hz

KV Peak

80

2.5MHz

KV Peak

-

16MHz

KV Peak

-

32MHz

KV Peak

-

Continuous Current, Carry Max

DC or 60Hz

Amps

14

2.5MHz

Amps

-

16MHz

Amps

-

32MHz

Amps

-

Coil Hi -Pot (V RMS, 60 Hz)

V

500

Capacitance

Across Open Contacts

pF

3

Contacts to Ground

pF

3.5

Resistance, Contact Max @ 1A, 28Vdc

Ω

0.02

Operate Time, Max

ms

-

Release Time, Max

ms

50

Operating Temperature Ambient

°C

-55~ 125

Shock, 1/2 Sine11ms (Peak)

G’s

50

Vibration, Sine (10-2000 Hz Peak)

G’s

10

Mechanical Life

Cycles             .

2 million                .

Weight

g

3800

Coil Rating
  • Nominal Voltage DC: 24 Volts
  • Pick-Up Voltage DC (Max): 17 Volts
  • Drop-Out Voltage DC (Min): 1-10 Volts
  • Coil Resistance: 120 Ohms (±10%)
Product Details
  • Copper contacts, capable of carrying large surge currents instantaneously, commonly used in capacitor charging and discharging systems.
  • Vacuum medium, capable of effectively extinguishing the arc when disconnected under load.
