Product Details

75mV DC Current Shunt Russia Type

Baseboard Mounted Shunts (75mV)
● High accuracy, class 0.5%
● High temperature stablility
● Insulating baseboard mounted
● Suitable for portable applications
● Manganine resistance bars

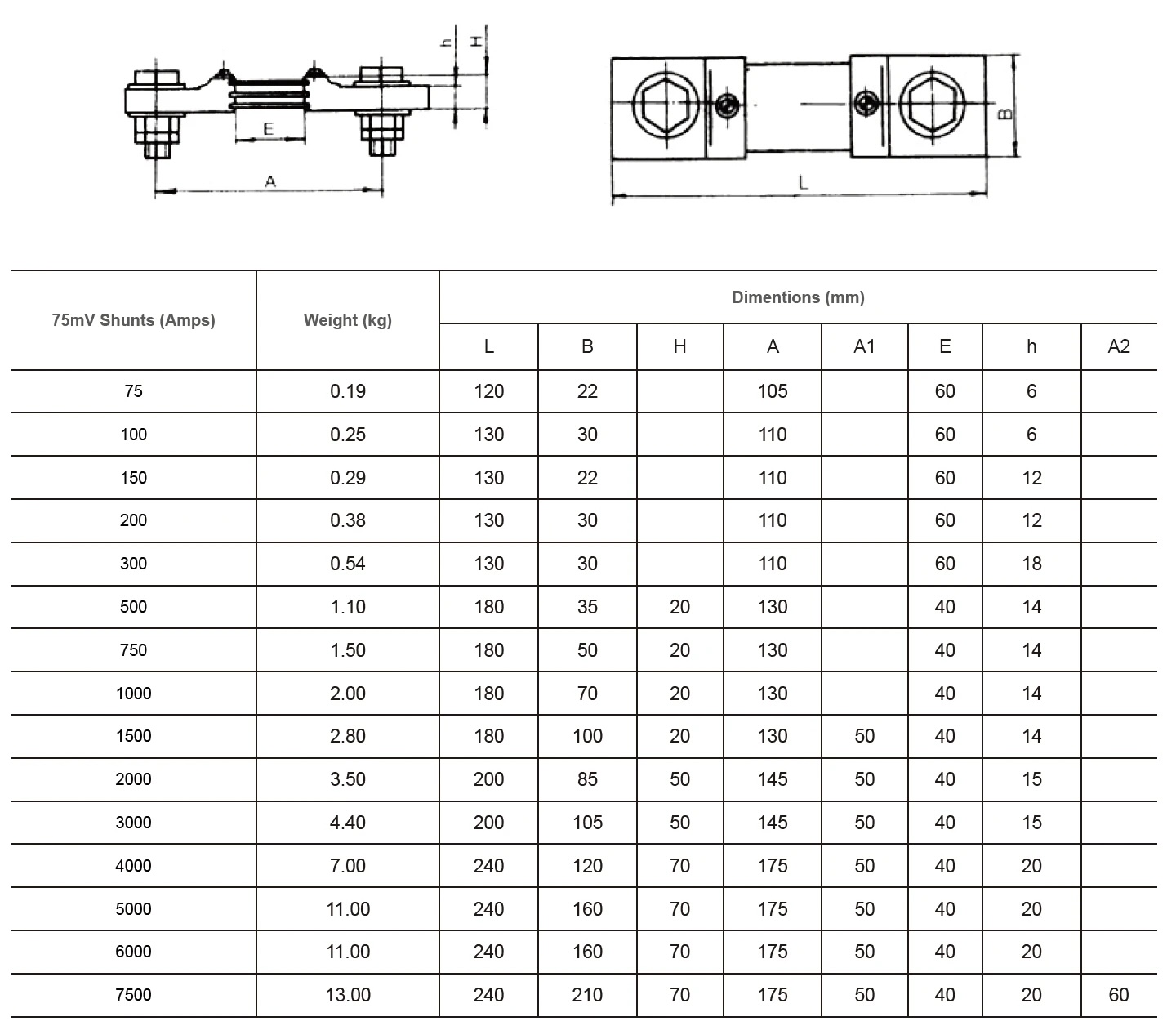

Dimensions

Russia type shunt

FAQ

Download

DC Current Shunt DC Ammeter Shunt Shunt Resistor (PDF)

Inquiry

Need more information?

Contact us to request pricing, availability and customization options.

*Title
*Name
Tel
*E-mail
Company
Country
*Message
*Code

Shunt Resistor FL-21

5A to 6000A, 50mV, 60mV and 75mV etc.

FL-15 Baseboard Shunt

5A to 1200A 60mV

FL-2D DIN43703 Switchboard Shunt

5A to 10000A DIN43703

FL-2 DC Shunt up to 20000A

A robust, precision-engineered solution for demanding DC current measurement needs, with options for customization to meet specific application requirements.
