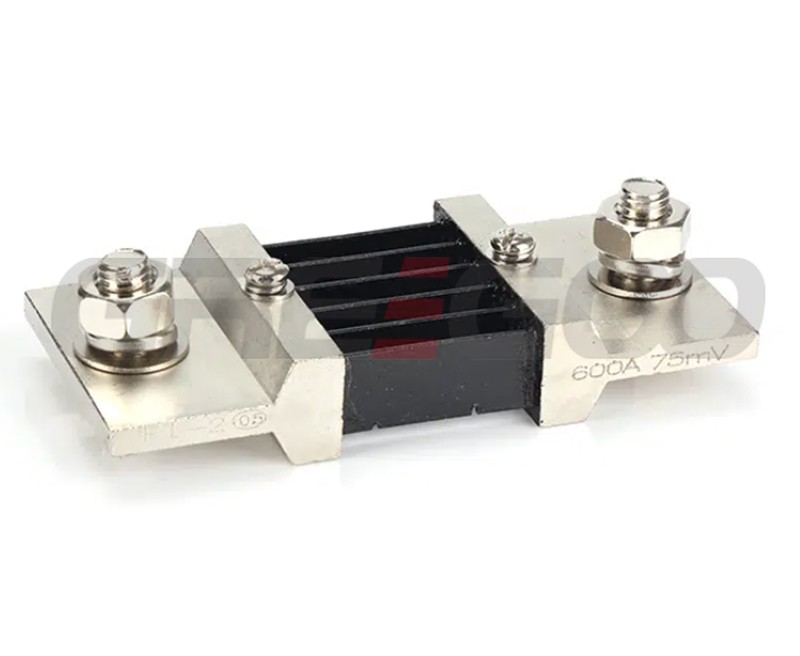

FL-2 DC Shunt up to 20000A

High Precision: Offers a measurement accuracy of ±0.1% (with optional upgrades to ±0.05% or ±0.01%), ensuring reliable current monitoring.
Low Resistance Design: With a resistance value of 0.05mΩ, it minimizes power loss and voltage drop, enhancing efficiency in high-current circuits.
Strong Thermal Endurance: Operates effectively from -40°C to 85°C with a temperature coefficient of ≤50 ppm/°C, ensuring stability across a wide temperature range.
Enhanced Durability: Constructed with manganin and thick copper terminals, providing long-term stability and resistance to thermal stress.
Customizable: Tailored specifications and a 150mV voltage drop (customizable) allow for flexible integration into diverse systems.
Cost-Effective Integration: The large-body form factor with extended thermal surface reduces the need for additional cooling, lowering overall system costs.

Electric Mobility Systems: Ideal for monitoring current in electric vehicles (EVs) and battery management systems (BMS) to ensure performance and safety.

Industrial Energy Management: Used in factories and plants to track current in high-power equipment, optimizing energy usage.
Advanced Battery Packs: Essential for precise current measurement in energy storage systems, such as those in renewable energy or UPS setups.
Other High-Current Systems: Suitable for applications requiring accurate current monitoring in motors, power supplies, and industrial automation.

Model: FL-2 DC Current Shunt

Rated Current: 1A to 10,000A

Voltage Drop: 50mV, 60mV, 75mV, 100mV, 150mV (customizable)

Accuracy Tolerance: ±0.1% (optional ±0.05% / ±0.01%)

Resistance Value: 0.05 mΩ to 75 mΩ

Temperature Coefficient: ≤50 ppm/°C or customizable

Operating Temperature: -40°C to 85°C

Mounting Type: Bolt-on / Panel Mount

Material: Manganin thick copper terminals
