40kA PV SPD
| Desctription | Symbol | Unit | Parameters & Models | |||
| Maximum continous operational voltage | Uc | V | 500 | 600 | 800 | 1000 |
| Nominal discharge current 8/20uS | In | kA | 20 | 20 | 20 | 20 |
| Maximum discharge current 8/20uS | Imax | kA | 40 | 40 | 40 | 40 |
| Voltage protection level | Up | Kv | 1.8 | 2.0 | 2.5 | 3.0 |
| Protection degree | IP | 20 | 20 | 20 | 20 | |
| Response time | ns | 25 | 25 | 25 | 25 | |
| Material | PA6 | PA6 | PA6 | PA6 | ||
| Fire retardent (comply with) | UL94V-0 | UL94V-1 | UL94V-2 | UL94V-3 | ||
| Standards | IEC61643-1:1998 | |||||
|
Model selection (G for Ground MW for modular width） |

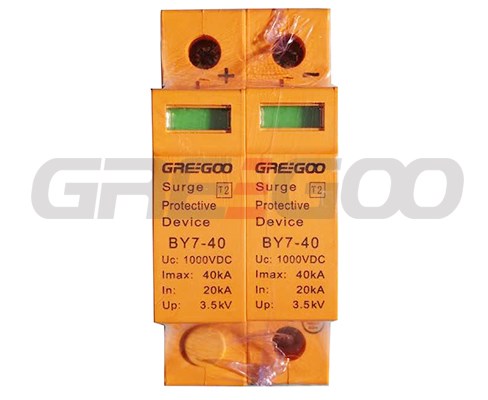

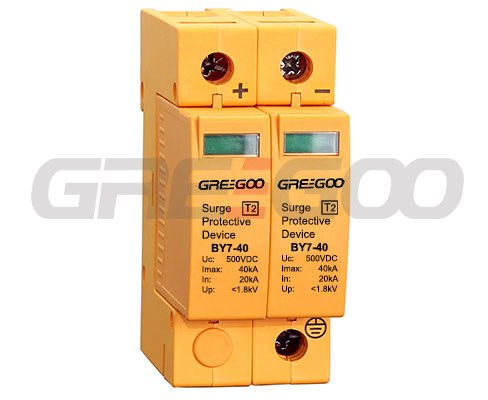

+, -, G (2MW) | BY7-40/2-500 | BY7-40/2-600 | BY7-40/2-800 | BY7-40/2-1000 | |

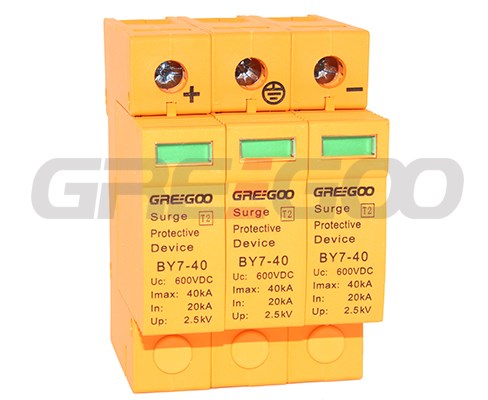

| +, -, G (3MW) | BY7-40/3-500 | BY7-40/3-600 | BY7-40/3-800 | BY7-40/3-1000 | ||
|

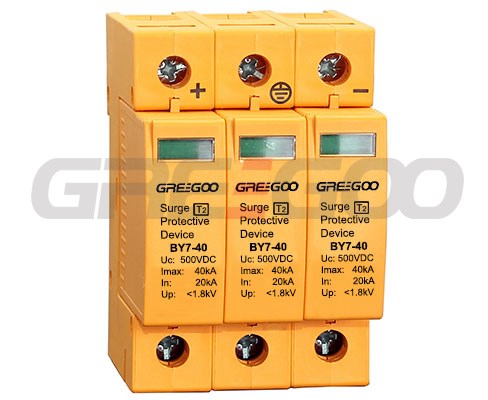

+/-, NPE (2MW) +, -, NPE (3MW) |
BY7-40/1+1-500
BY7-40/2+1-500
|
BY7-40/1+1-600
BY7-40/2+1-600
|
BY7-40/1+1-800 BY7-40/2+1-800 |
BY7-40/1+1-1000 BY7-40/2+1-1000 |
||
| Local indication: Green indicates normal state and red indicates failure. | ||||||
