Product details

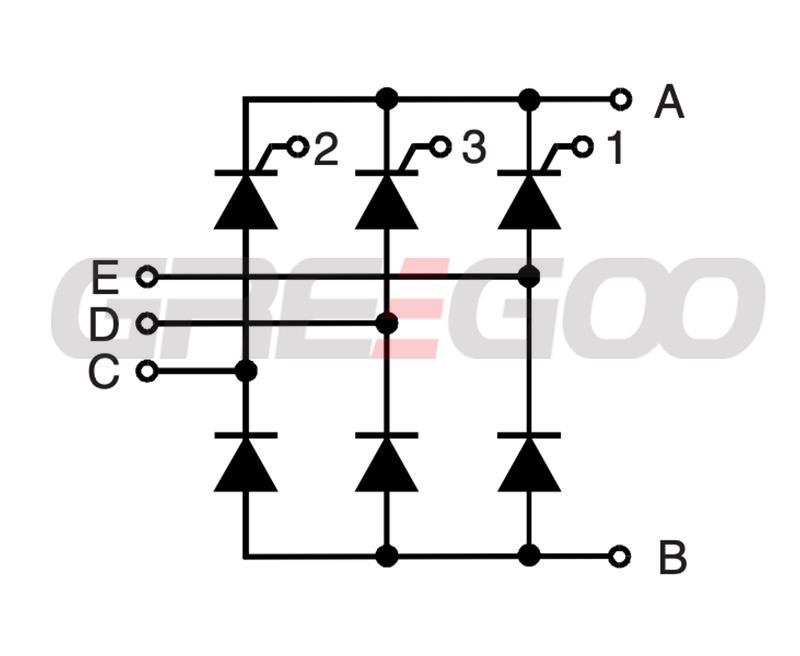

3 phase half controlled diode bridge module
| Part Numbers | VRRM | ldAV | Tc | lFSM | V(F0) | Housing | Equivalent | |
| @Tc | 10ms,45℃ | @Tvj max | ||||||
| V | A | ℃ | A | V | IXYS | SEMIKRON | ||
| GDH70XDA08~16 | 800~1600 | 70 | 85 | 550 | 0.85 | XDA | VVZ70-08~16io7 | |
| GDH110XFA08~16 | 800~1600 | 110 | 85 | 1150 | 0.85 | XFA | VVZ110-08~12io7 | |
| GDH115SWF12~16 | 1200~1600 | 110 | 85 | 950 | 1.1 | SWF | SKDH115/12~16 | |
| GDH145SWF12~16 | 1200~1600 | 140 | 85 | 1250 | 0.9 | SWF | SKDH145/12~16 | |
| GDH175XFA08~16 | 800~1600 | 167 | 85 | 1500 | 0.85 | XFA | VVZ175-08~16io7 | |
