25KV HV Relay GHR-6/055 and GHR-6/055A
- GHR-6/055 is durable tungsten contacts for hot load switching; GHR-6/055A carries 150A at DC
- Vacuum dielectric for low and stable contact resistance
|

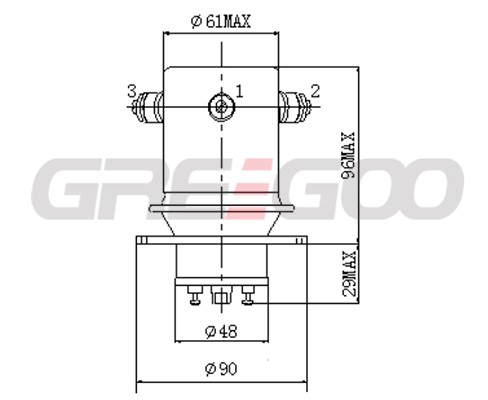

Specification |
Units |
GHR-6/055 |
GHR-6/055A |
||
|
Contact Form |
|
C |
C |
||
|
Contact Arrangement |
|
SPDT |
SPDT |
||
|
Test Voltage,(kV,Peak),Test Max.,Contacts &to Base (15 μ A Leakage Max.,dc or 60Hz) |
KV Peak |
30 |
30 |
||
|
Rated Operating Voltage,(kV,Peak), Contacts &to Base (15 μ A Leakage Max.) |
DC or 60Hz |
KV Peak |
25 |
25 |
|
|
2.5MHz |
KV Peak |
一 |
18 |
||
|
16MHz |
KV Peak |
一 |
12 |
||
|
32MHz |
KV Peak |
一 |
一 |
||
|
Continuous Current Carry Max |
DC or 60Hz |
Amps |
75 |
150 |
|
|
2.5MHz |
Amps |
一 |
70 |
||
|
16MHz |
Amps |
一 |
45 |
||
|
32MHz |
Amps |
一 |
一 |
||
|
Coil Hi-Pot (V RMS,60 Hz) |
V |
500 |
500 |
||
|
Capacitance |
Across Open Contacts |
pF |
5 |
5 |
|
|
Contacts to Ground |
pF |
5 |
5 |
||
|
Resistance,Contact Max @1A,28Vdc |
Ω |
0.025 |
0.005 |
||
|
Operate Time,Max |
ms |
100 |
100 |
||
|
Release Time,Max |
ms |
15 |
15 |
||
|
Operating Temperature Ambient |
℃ |
-55~ 125 |
-55~ 125 |
||
|
Shock,1/2 Sine11ms (Peak) |
G's |
50 |
50 |
||
|
Vibration,Sine(10-2000Hz Peak) |
G's |
10 |
10 |
||
|
Mechanical Life |
Cycles |
1million |
1million |
||
|
Weight |
g |
1060 |
1060 |
||
|
Nominal,Volts dc |
24 |
|
Pick-up,Volts dc,Max |
16 |
|
Drop-Out,Volts dc,Min |
1-10 . |
|
Coil Resistance(Ω±10%) |
60 |
Ratings listed are for 25°C, sea level conditions
