15KV HV Relay GHR-8-WP
◆ Specifically designed for load switching applications
◆ Durable tungsten contacts for hot load switching
◆ Can power switch and isolate loads
◆ Internal shield allows base to be grounded for load switching below 500 Vdc
◆ Consult factory for load switching applications
|

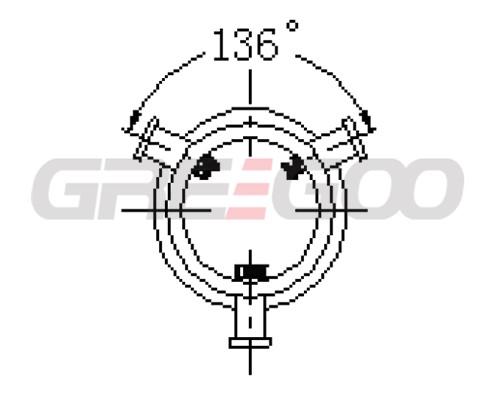

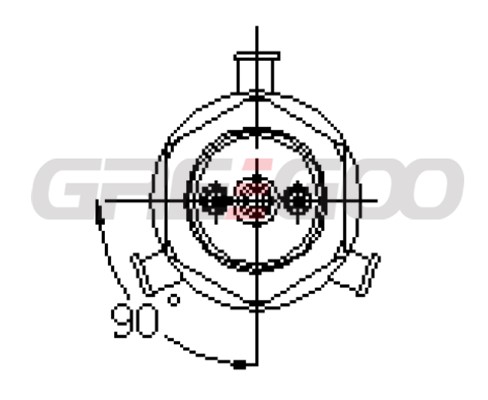

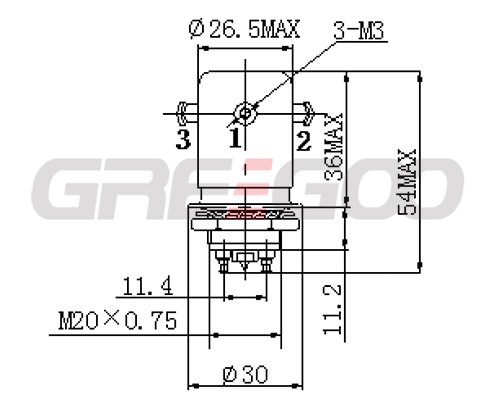

Product Specification |
Units |
GHR-8-WP |
||
|
Contact Form |
C |
|||
|
Contact Arrangement |
SPDT |
|||
|
Test Voltage,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz) |
KV Peak |
17 |
||
|
Rated Operating Voltage, (kV,Peak), |
DC or 60Hz |
KV Peak |
15 |
|
|
2.5MHz |
KV Peak |
12 |
||
|
16MHz |
KV Peak |
9 |
||
|
32MHz |
KV Peak |
7 |
||
|
Continuous Current,
|
DC or 60Hz |
Amps |
30 |
|
|
2.5MHz |
Amps |
18 |
||
|
16MHz |
Amps |
10 |
||
|
32MHz |
Amps |
6 |
||
|
Coil Hi -Pot (V RMS, 60 Hz) |
V |
500 |
||
|
Capacitance |
Across Open Contacts |
pF |
0.5 |
|
|
Contacts to Ground |
pF |
1 |
||
|
Resistance, Contact Max @ 1A, 28Vdc |
Ω |
0.025 |
||
|
Operate Time, Max |
ms |
15 |
||
|
Release Time, Max |
ms |
9 |
||
|
Operating Temperature Ambient |
°C |
-55~ 125 |
||
|
Shock, 1/2 Sine11ms (Peak) |
G’s |
50 |
||
|
Vibration, Sine (10-2000 Hz Peak) |
G’s |
10 |
||
|
Mechanical Life |
Cycles |
1 million |
||
|
Weight |
g |
84 |
||
|
COIL RATINGS |
|||||
|
Nominal, Volts dc |
220 |
110 |
27 |
24 |
12 |
|
Pick-up, Volts dc,Max |
150 |
70 |
16 |
16 |
8 |
|
Drop-Out, Volts dc,Min |
10 |
2 |
1.5 |
1.5 |
0.5 |
|
Coil Resistance (Ω±10%) |
10000 |
5400 |
270 |
180 |
48 |
|
※ Ratings listed are for 25°C |
|||||
