EVC7-12KV-160/250/400/630A High altitude MV Vacuum Contactor
Home Products Vacuum ContactorMedium Voltage Vacuum ContactorEVC7-12KV-160/250/400/630A High altitude MV Vacuum Contactor
Product Details

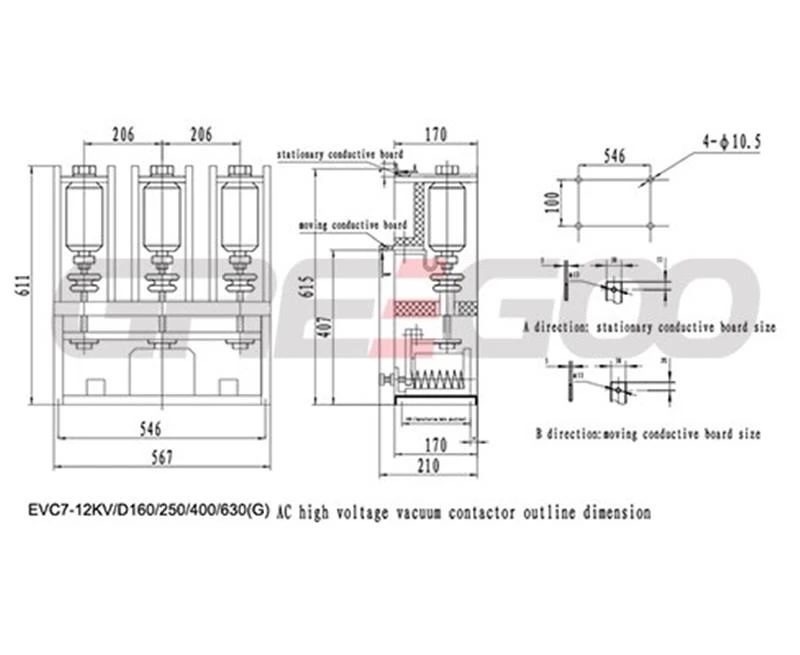

EVC7-12KV-160/250/400/630A High altitude MV Vacuum Contactor
| Name | Unit | Value | |||||
| Main circuit | Rated working voltage (Ue) | kV | 12 | ||||
| Rated working current (Ie) | A | 160,250,400,630 | |||||
| Rated frequency (fr) | Hz | 50~60 | |||||
| Rated making capacity | A | 10Ie（AC-4） | |||||
| Rated breaking capacity | A | 8Ie（AC-4） | |||||
| Rated short time withstand current | A | 10Ie | |||||
| Rated peak withstand current | A | 25Ie | |||||
| Rated short circuit duration | s | 4 | |||||
| Power frequency withstand voltage | Wiring terminal to earth | kV | 42 | ||||
| Vacuum breaks | kV | 42 | |||||
| Lightening impulse withstand voltage | kV | 75 | |||||
| Control circuit | Rated voltage (Us) | V | AC or DC. 110/220 | ||||
| Rated power (Ps)electric holding | Electric holding | VA | ≤1000/100 (absorbing/holding) | ||||
| Mechanical holding | VA | ≤900/600 (absorbing/holding) | |||||
| Auxiliary circuit | Form | 3a 2b | |||||
| Rated value | AC 380V/10A, | ||||||
| DC 380V/2A | |||||||
| Control circuit, auxiliary circuit to earth power frequency withstand voltage | kV | 2 | |||||
| Rated operating frequency | Long-term | time/h | 300 | ||||
| Short-term | time/h | 600 | |||||
| Mechanical endurance | 10000 times | 30 | |||||
| Electrical endurance | 10000 times | 10 | |||||
| Mechanical characteristics | Closing time | ms | ≤200 | ||||
| Original opening time | ms | ≤160 | |||||
| 3-phase synchronism | ms | ≤3 | |||||
| Closing tripping | ms | ≤15 | |||||
| Remark: rated control voltage can be made according to customer’s requirements. | |||||||
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products
36KV Vacuum Contactor (EVC9)
40.5KV, 35KV, 36KV permanet magnetic latching vacuum contactor
35KV 33KV Vacuum Contactor Single Pole
Single phase Vacuum Contactor, 1P 33/35/36kV Vacuum Contactor, 40.5kv vacuum contactor
7.2KV 12KV Vacuum Contactor 160A to 630A
EVC5 series 6.6KV/7.2kV and 11KV/12kV Vacuum Contactor starter, 160A to 630A for a variety of power control, 7.2kv vacuum contactor, 11kv vacuum contactor, mv vacuum contactor.

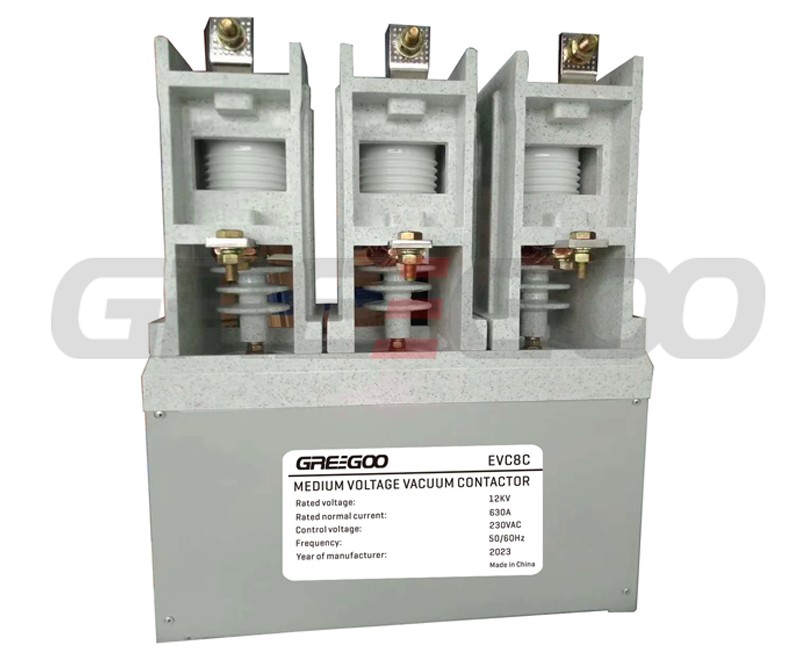

Medium Voltage Vacuum Contactor EVC8C-7.2KV/12KV
