1000VDC 1500VDC PV Solar Fuse
Home Products Push Buttons and MorePower Supplies1000VDC 1500VDC PV Solar Fuse
Specification
1000VDC 1500VDC PV Solar Fuse
| Type | Rated voltage | Rated current | Standard |
| SFPV-25 Fuse Link | DC1000V | 1A、2A、3A、4A、5A、6A、8A、10A、12A、15A、16A 20A、25A、32A |
IEC60269-6/IEC60269-1 |

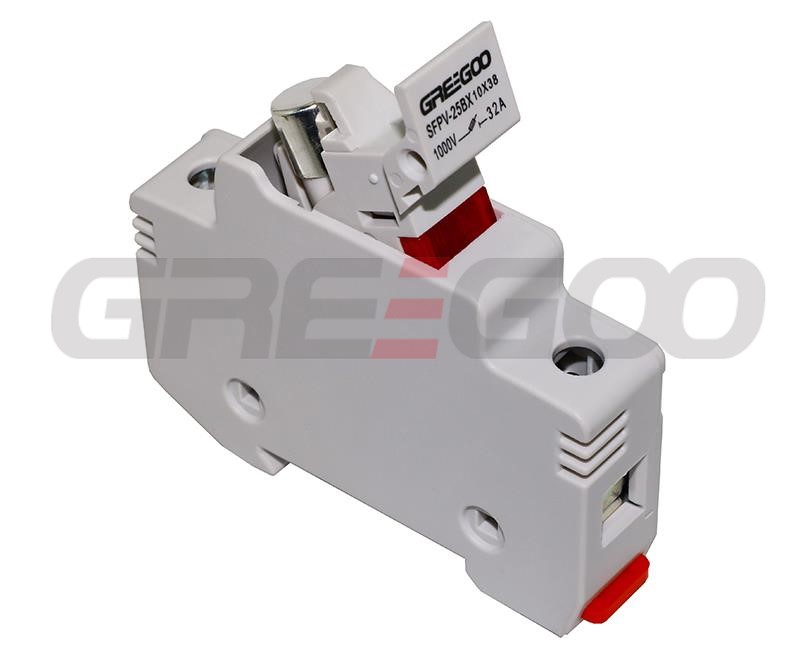

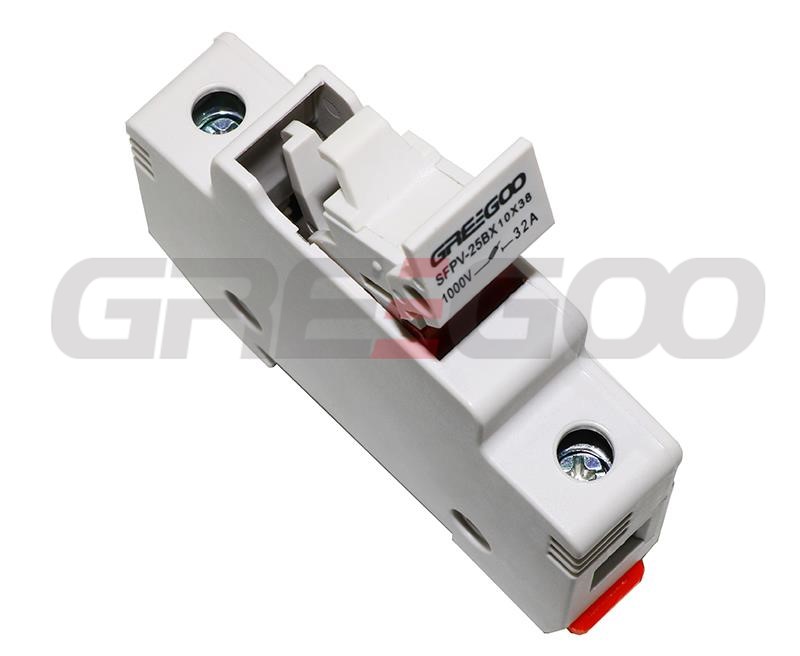

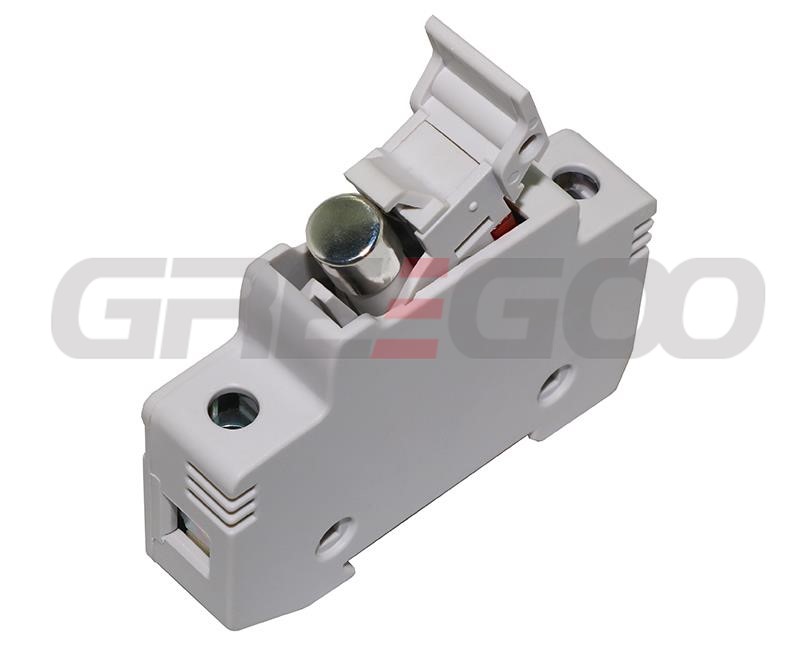

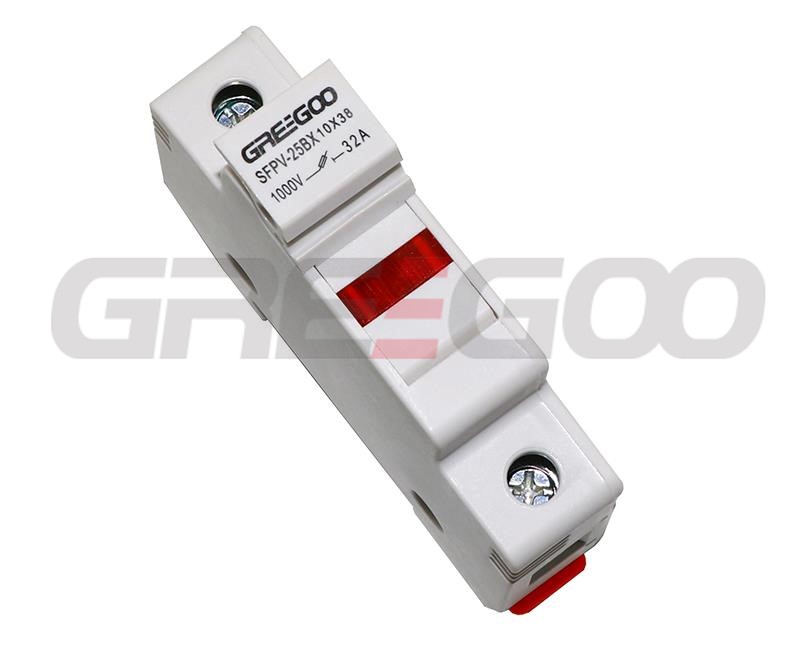

| SFPV-25B(X) Fuse Holder | DC1000V | 32A | IEC60947-1/IEC60947-3 |
| SFPV-C Fuse clip | DC1000V | 32A | IEC60269-6/IEC60269-1 |
| SFPVNH0 Fuse Link | DC1000V | 32A、40A、50A、63A、80A、100A | IEC60269-6 |
| SFPVNH1 Fuse Link | DC1000V | 50A、63A、80A、100A、125A、160A | IEC60269-6 |
| SFPVNHOB Fuse Base | DC1000V | 100A | IEC60269-6/IEC60269-1 |
| SFPVNH1B Fuse Base | DC1000V | 160A | IEC60269-6/IEC60269-1 |
| SFPV-32 Fuse Link | DC1500V | 2A、3A、4A、5A、6A、8A、10A、12A、15A、16A、20A、 25A、32A、35、40、45、50 |
IEC60269-6 |

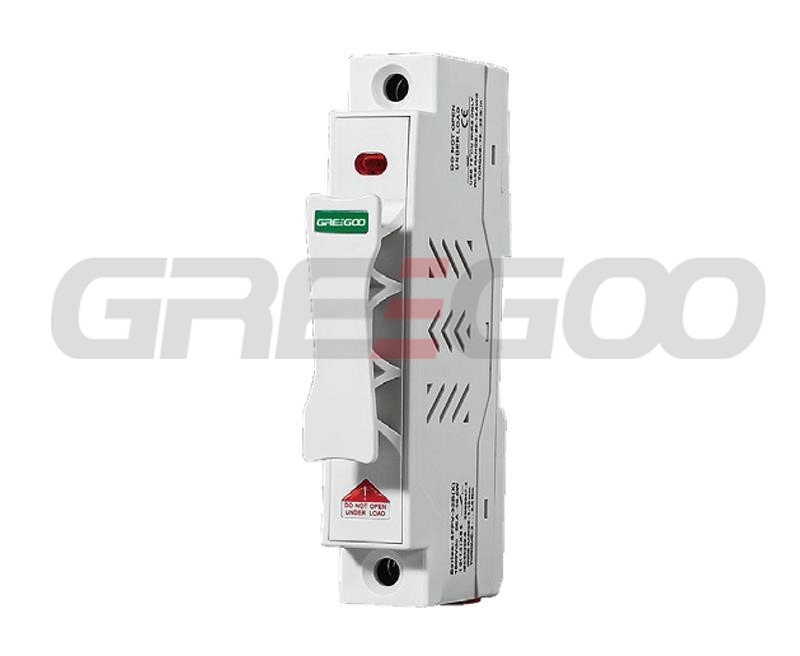

| SFPV-32B(X) Fuse Holder | DC1500V | 50A | IEC60947-1/IEC60947-3 |
| SFPVNH1XL Fuse Link | DC1500V | 63A、80A、100A、125A、160A、200A、250A | IEC60269-6 |
| SFPVNH2XL Fuse Link | DC1500V | 125A、160A、200A、250A、315A、350A、400A | IEC60269-6 |
| SFPVNH3XL Fuse Link | DC1500V | 350A、400A、450A、500A、550A、630A | IEC60269-6 |
| SFPVNH1XLB Fuse Base | DC1500V | 250A | IEC60269-6/IEC60269-1 |
| SFPVNH2XLB Fuse Base | DC1500V | 400A | IEC60269-6/IEC60269-1 |
| SFPVNH3XLB Fuse Base | DC1500V | 630A | IEC60269-6/IEC60269-1 |
