1 phase rectifier bridge 60A and 70A
1 phase Rectifier Bridge
Feature:
- Package with DCB ceramic
- Improved temperature and power cycling
- Planar passivated chips
- Very low forward voltage drop
- Very low leakage current
- Industry standard outline
- RoHS compliant
- Easy to mount with two screws
- Base plate: Copper internally DCB isolated
- Advanced power cycling
Application:
- Diode for main rectification
- For one phase bridge configurations
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
| Part No. | Equal to | VRRM | IDAVM | @Tc | IFSM | VT0 | rT | Tvjm | RthJC | RthJH | Package |
| (V) | (V) | (A) | 10ms | (V) | (mOhms) | (°C) | perChip | perchip | Style | ||
| Tvj=45°C | (K/W) | (K/W) | |||||||||
| (A) | |||||||||||

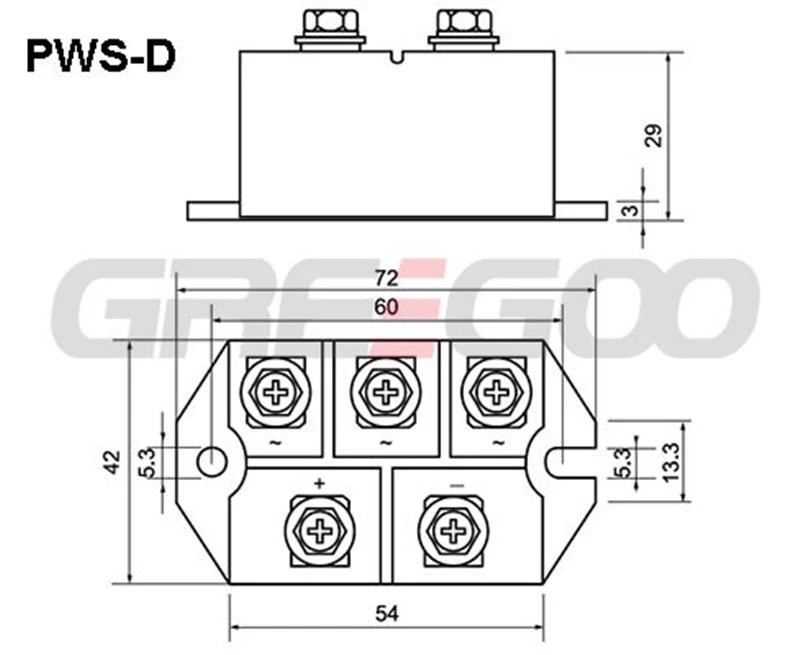

| MDQ70-08I | VBO72-08NO7 | 800 | 70 | 110 | 750 | 0.78 | 6 | 150 | 0.9 | 1.3 | PWS-D |
| MDQ60-08I | VBO52-08NO7 | 800 | 60 | 115 | 550 | 0.78 | 8.1 | 150 | 1.1 | 1.5 | PWS-D |
| MDQ70-12I | VBO72-12NO7 | 1200 | 70 | 110 | 750 | 0.78 | 6 | 150 | 0.9 | 1.3 | PWS-D |
| MDQ60-12I | VBO52-12NO7 | 1200 | 60 | 115 | 550 | 0.78 | 8.1 | 150 | 1.1 | 1.5 | PWS-D |
| MDQ70-16I | VBO72-16NO7 | 1600 | 70 | 110 | 750 | 0.78 | 6 | 150 | 0.9 | 1.3 | PWS-D |
| MDQ60-16I | VBO52-16NO7 | 1600 | 60 | 115 | 550 | 0.78 | 8.1 | 150 | 1.1 | 1.5 | PWS-D |

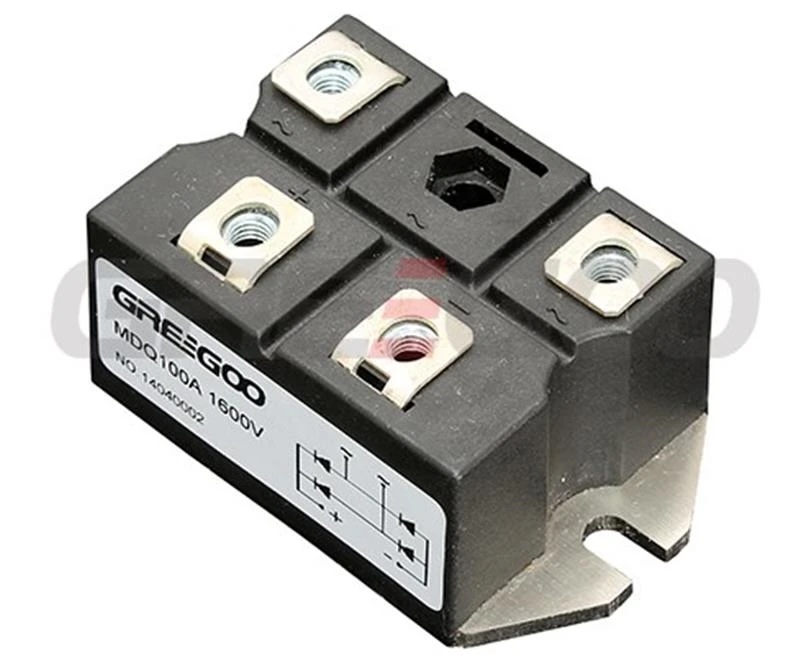

| MDQ100-12I | 1200 | 100 | 115 | ||||||||
| MDQ100-16I | 1600 | 100 | 115 |

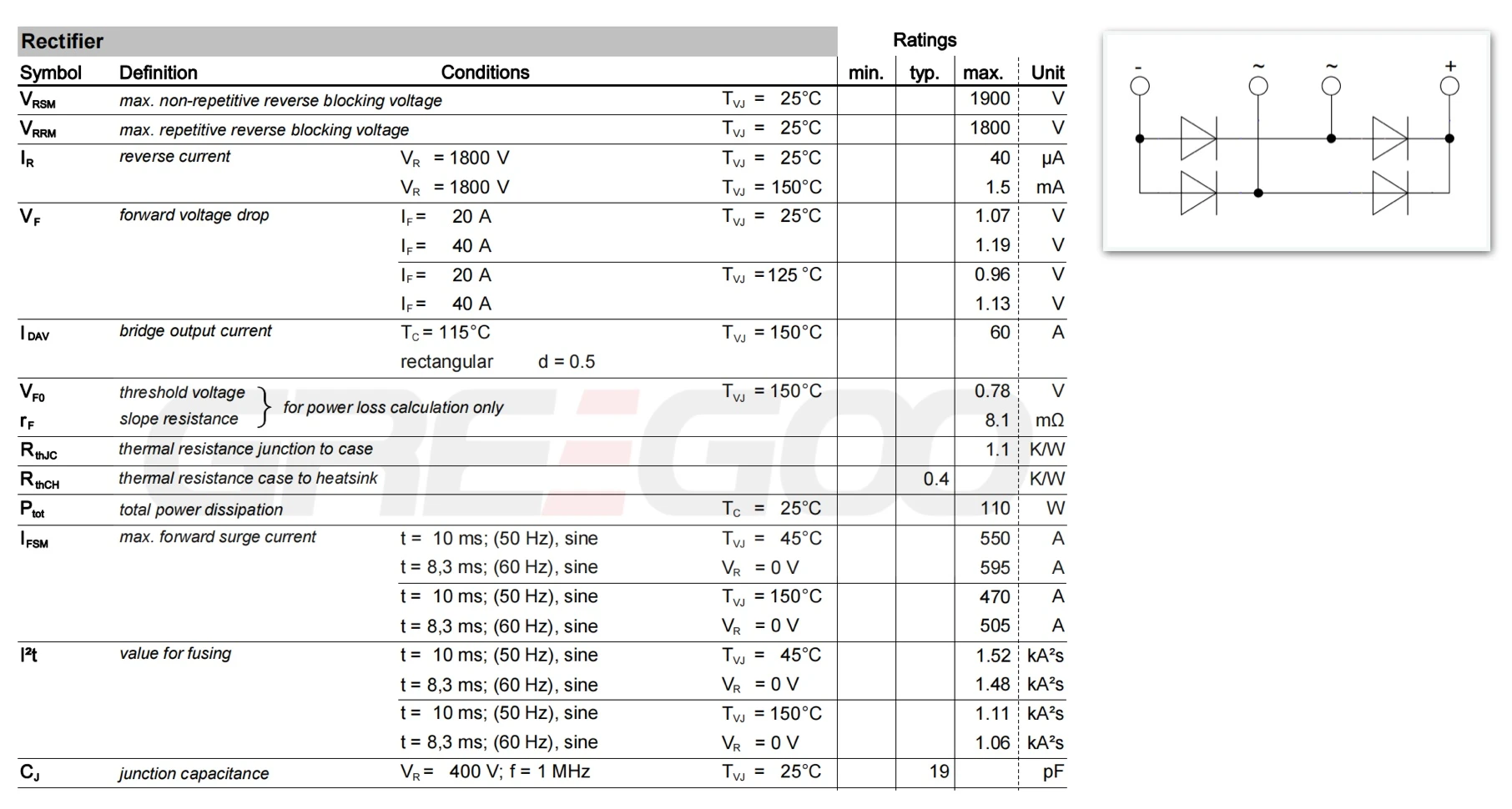

VBO52
VBO52/08 VBO52/12 VBO52/16 VBO52/18
