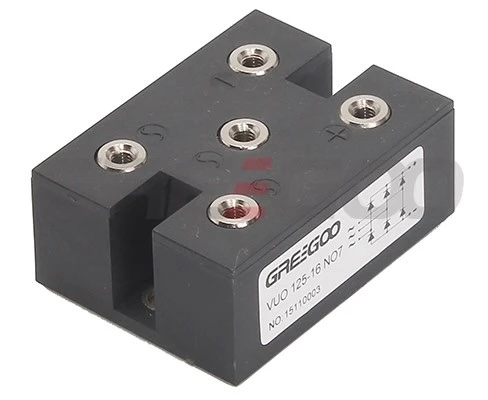

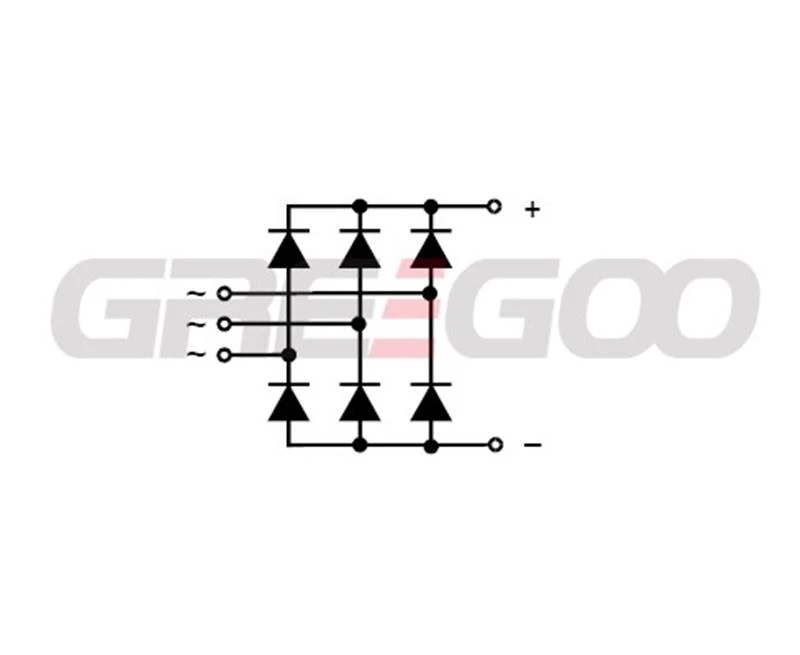

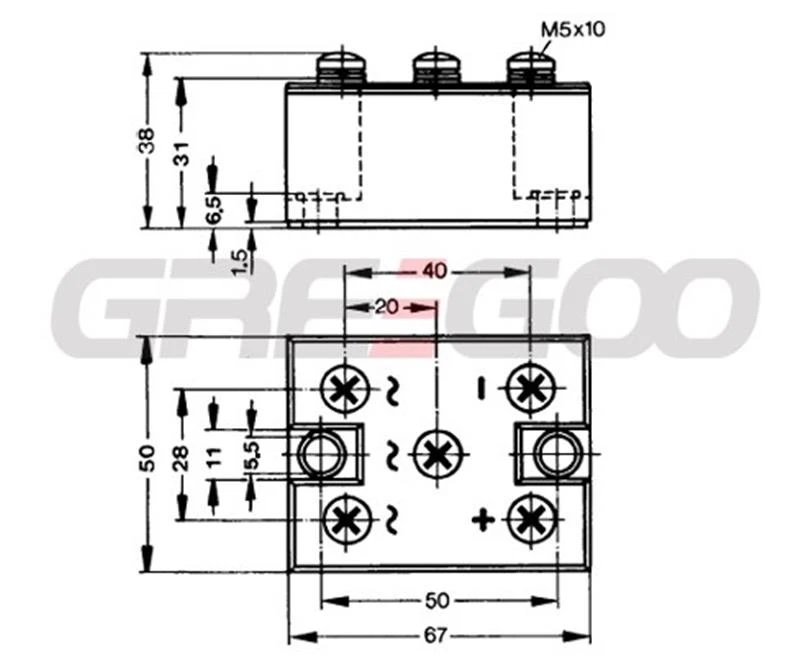

Three Phase Rectifier Bridge (VUO 105 and VUO125)

Three Phase Rectifier Bridge (VUO-105)

Features
Package with screw terminals
Isolation voltage 3000 V~
Planar passivated chips
Blocking voltage up to 1800 V
Low forward voltage drop

Applications
Supplies for DC power equipment
Input rectifiers for PWM inverter
Battery DC power supplies
Field supply for DC motors

Advantages
Easy to mount with two screws
Space and weight savings

Improved temperature and power cycling

Parameter	VUO105-16NO7
VRRM, (V)	1600
VRSM, (V)	1700
IDAVM, (A)	120
@ TH, (°C)	-
@ Tc, (°C)	105
IFSM, 10 ms, Tvj = 45°C, (A)	1500
VT0, (V)	0.78
rT, (mOhms)	4.8
Tvjm, (°C)	150
RthJC, per chip, (K/W)	0.80
RthJH, per chip, (K/W)	1.10

Parameter	VUO125-16NO7
VRRM, (V)	1600
VRSM, (V)	1700
IDAVM, (A)	150
@ TH, (°C)	-
@ Tc, (°C)	110
IFSM, 10 ms, Tvj = 45°C, (A)	1800
VT0, (V)	0.76
rT, (mOhms)	3.6
Tvjm, (°C)	150
RthJC, per chip, (K/W)	0.60
RthJH, per chip, (K/W)	0.90
