Product Details

VUE75-12NO7 Fast Recovery Epitaxial Diode

Features

• Package with DCB ceramic base plate
• Improved temperature and power cycling
• Planar passivated chips
• Very low forward voltage drop
• Very low leakage current

Applications

• Supplies for DC power equipment
• Input and output rectifiers for high frequency
• Battery DC power supplies
• Field supply for DC motors

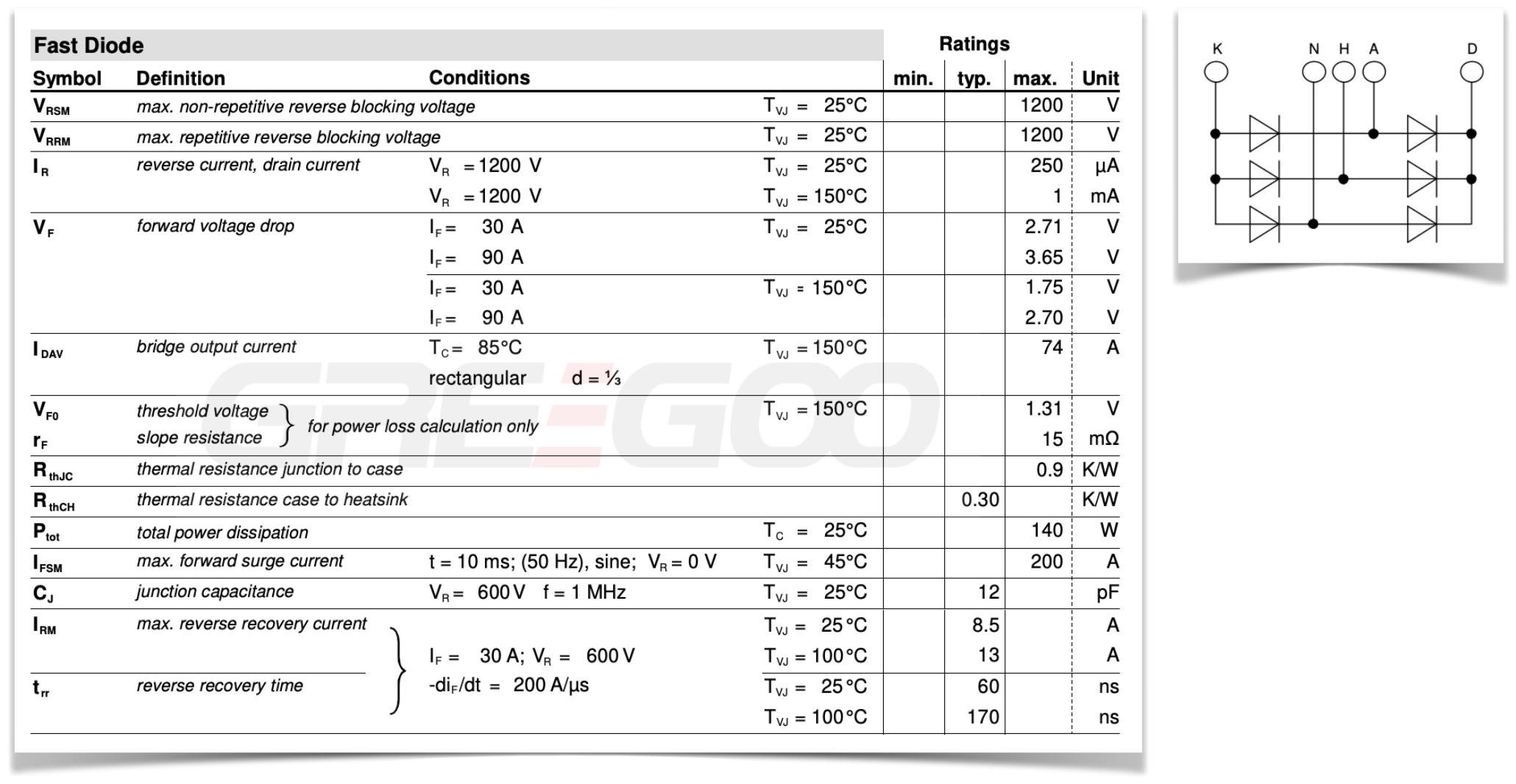

Specification

VUE75-12NO7 FRED Module

VUE75-12NO7
