LXFK-Φ80~Φ240 Zero Sequence Current Transformer
Home Products Voltage & Current TransformerBushing Current TransformerLXFK-Φ80~Φ240 Zero Sequence Current Transformer
Product Details
LXFK-Φ80~Φ240 Zero Sequence Current Transformer
|
Transformation ratio A
|
Relay type |
Connection type of
relay coil
|
Relay scale value
|
Primary residual current
of relay acting A
|
Weight kg |
| 60/1 | DD-11/60 | Series connection | 15x1 | 2.4-2.5 | 4.5 |
| 30x1 | |||||
| Parallel connection | 15x2 | 3-5 | |||
| 30x2 | |||||
| DD-1/60 | Series connection | 15x1 | 3-5 | ||
| 30x1 | |||||
| Parallel connection | 15x2 | 3-6 | |||
| 30x2 |

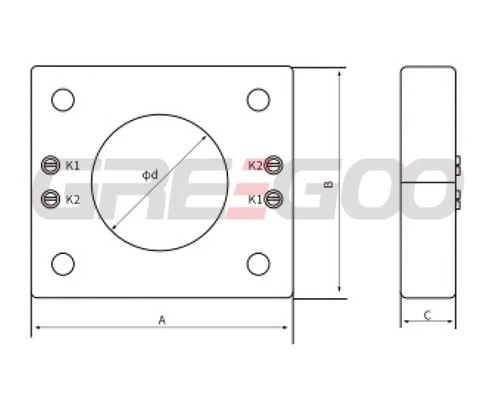

| Model | A | B | C | D |
| LXFK∅80 | 195 | 171 | 47 | 80 |
| LXFK∅100 | 216 | 190 | 54 | 100 |
| LXFK∅120 | 235 | 211 | 60 | 120 |
| LXFK∅140 | 300 | 270 | 82 | 140 |
| LXFK∅160 | 300 | 270 | 82 | 160 |
| LXFK∅180 | 300 | 270 | 83 | 180 |
| LXFK∅200 | 388 | 345 | 82 | 200 |
| LXFK∅240 | 388 | 345 | 82 | 240 |
