TT570N16KOF TD570N16KOF 60 mm Thyristor/Thyristor Module with 1600 V in pressure contact technology
Features
- Pressure contact technology for high reliability
- Industrial standard package
- Electrically insulated baseplate
- Short on fail
- Highest robustness
Benefits
- Designed for high overload and power cycling requirements
- High DC blocking stability over whole lifetime
- High surge current capability especially for short grid spikes
- One supplier for a broad range of Power Block Modules
Applications
- AC-DC power supplies
- Industrial heating and welding
- Motor control and drives
TD570N16KOF Specification
| Parametrics | TD570N16KOF |
|---|---|
| (diT/dt)cr [A/µs] (@DIN IEC 747- 6) | 200 |
| Configuration | SCR / Diode Phase Control |
| Housing | 60 mm |
| IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin) | 600/85 |
| IFSM / ITSM [A] (@10ms, Tvj max) | 14000 |
| Product Line | Power Block |
| RthJC [K/W] (@180° el sin) | 0.058 |
| Tvj [°C] | 125 |
| VDRM / VRRM [V] | 1600 |
| VT0 [V] (@Tvj max) | 0.8 |
| rT [mΩ] (@Tvj max) | 0.23 |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 980 |
TT570N16KOF Specification
| Parameters | TT570N16KOF |
|---|---|
| (diT/dt)cr [A/µs] (@DIN IEC 747- 6) | 200 |
| Configuration | SCR / SCR Phase Control |
| Housing | 60 mm |
| IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin) | 600/85 |
| IFSM / ITSM [A] (@10ms, Tvj max) | 14000 |
| Product Line | Power Block |
| RthJC [K/W] (@180° el sin) | 0.058 |
| Tvj [°C] | 125 |
| VDRM / VRRM [V] | 1600 |
| VT0 [V] (@Tvj max) | 0.8 |
| rT [mΩ] (@Tvj max) | 0.23 |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 1531 |

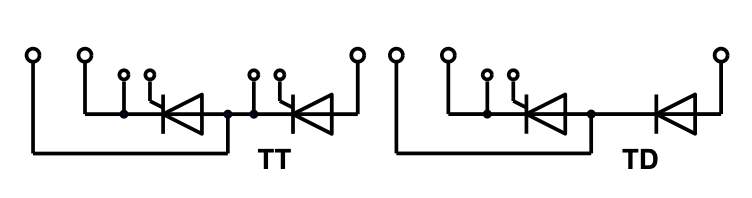

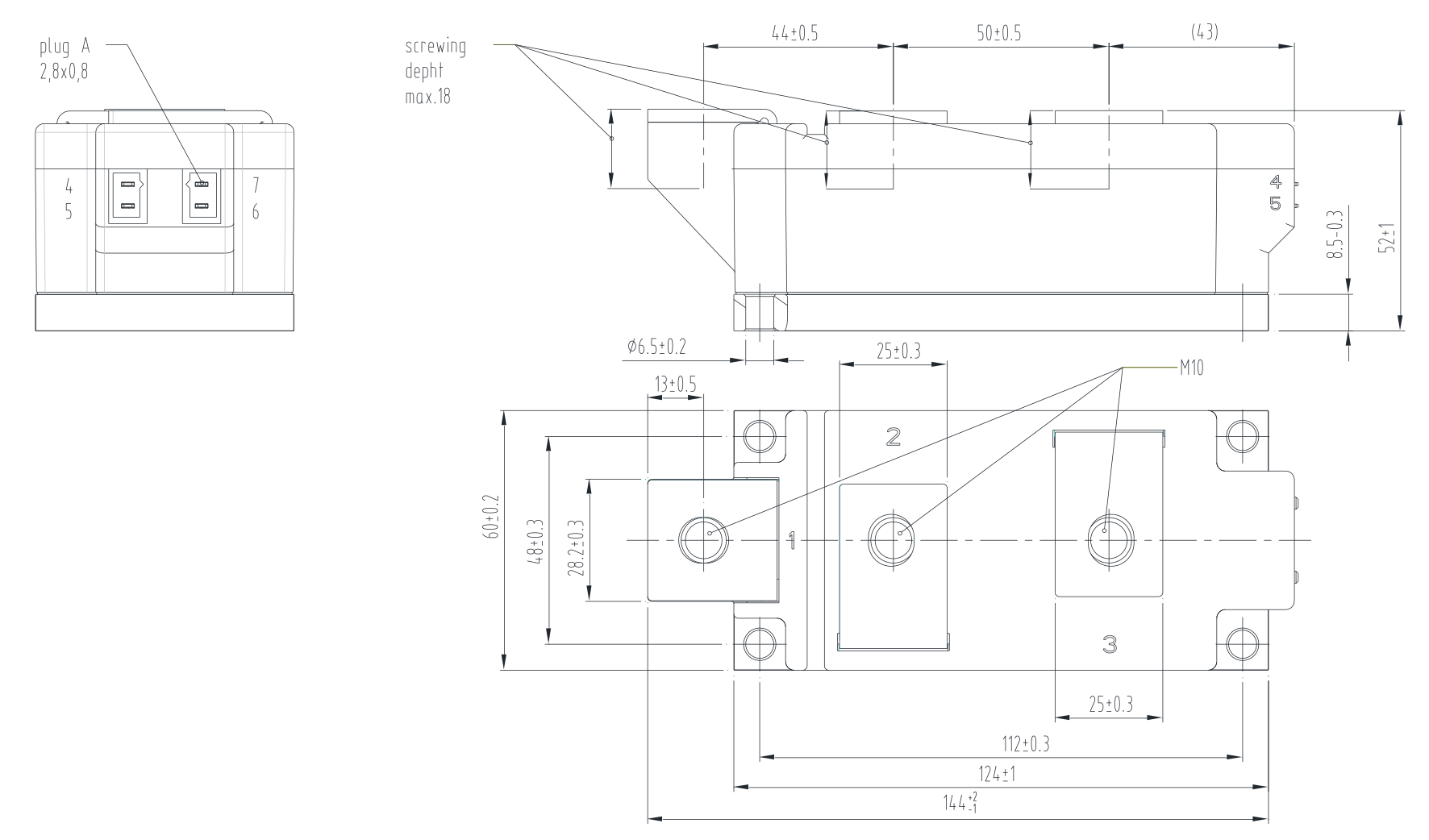

Dimensions
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
