TT120N16SOF Thyristor-Thyristor Module
Home Products Thyristor Diode ModuleInfineon Thyristor Diode ModulesTT120N16SOF Thyristor-Thyristor Module
Product Details

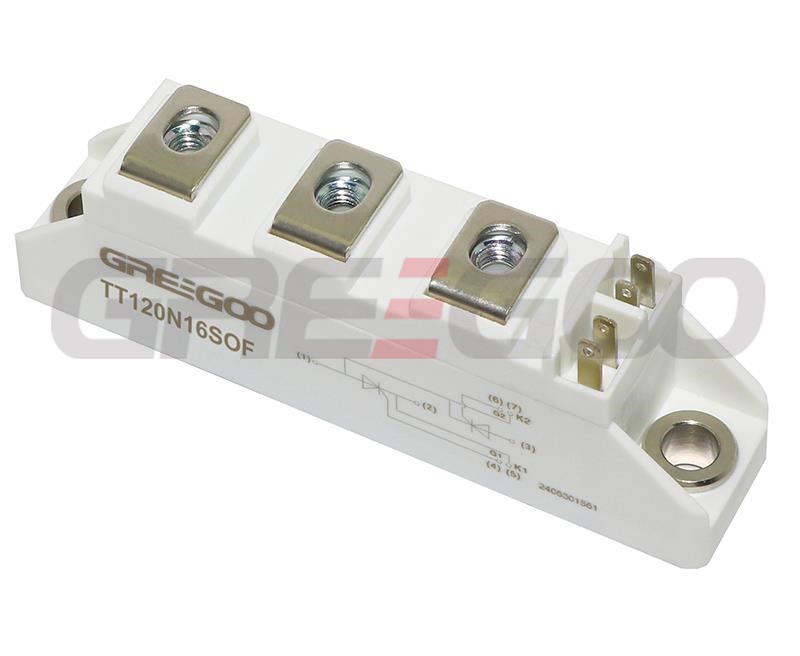

TT120N16SOF Thyristor-Thyristor Module
20 mm Thyristor/Thyristor module with 1600 V in solder bond technology
Feature:
Solder-Solder Technology
Industrial standard package
Electrically insulated base plat
Application:
Soft starter
Rectifier for drives applications
Power controllers
Rectifiers for UPS
Battery chargers
Static switches
Key Parameter
| VDRM / VRRM | 1600V |
| ITAVM | 120 A (TC=85 °C) |
| ITSM | 2250A |
| VT0 | 0.9V |
| rT | 3.35mΩ |
| RthJC | 0.19K/W |
| Base plate | 20mm |
| Weight | 75g |

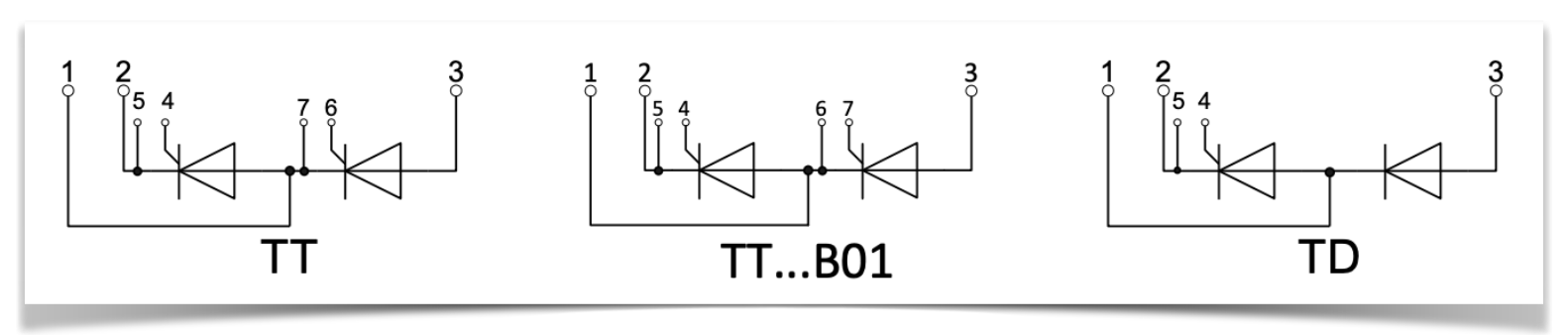

Diagram

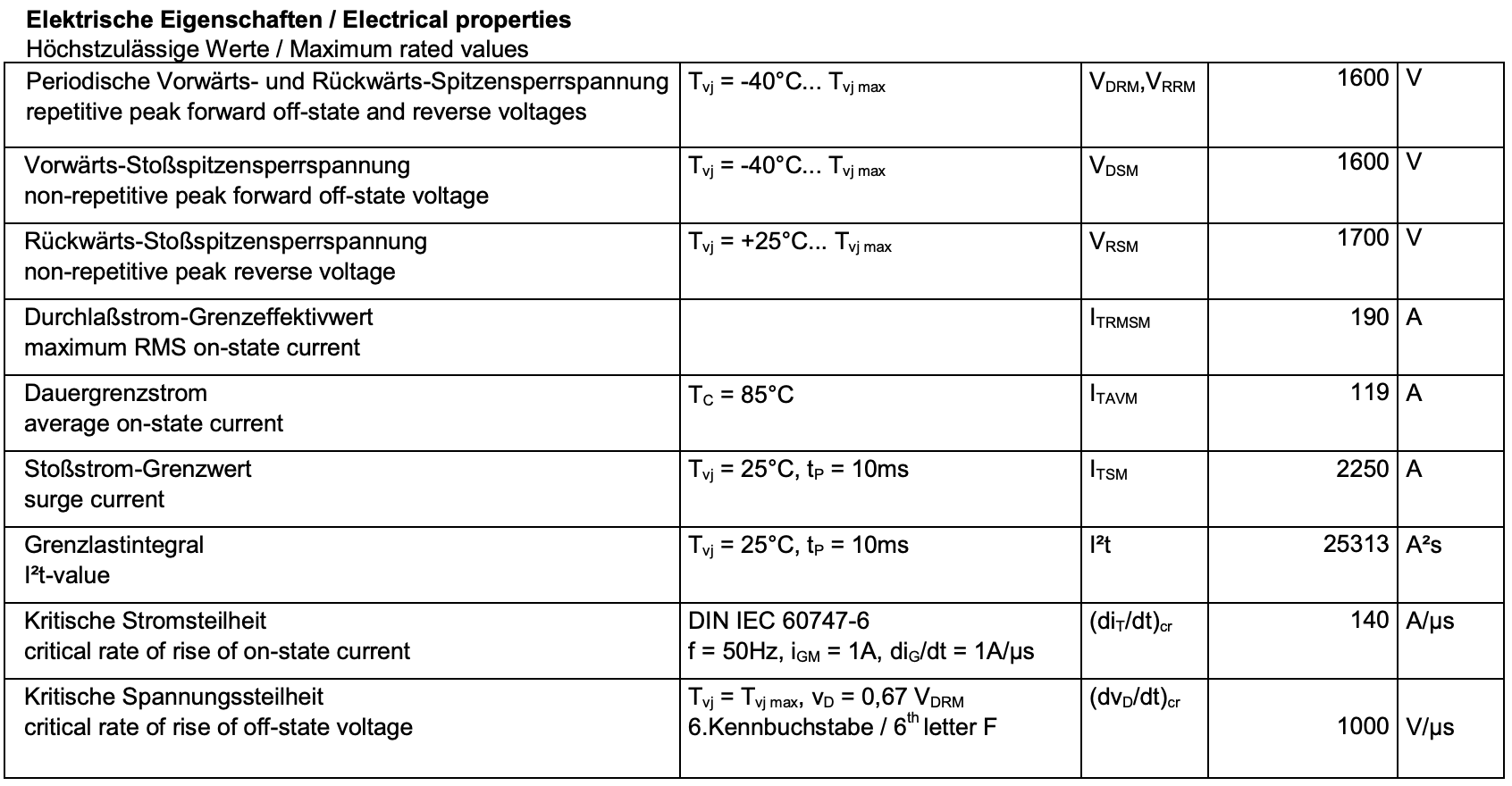

Maximum rated values

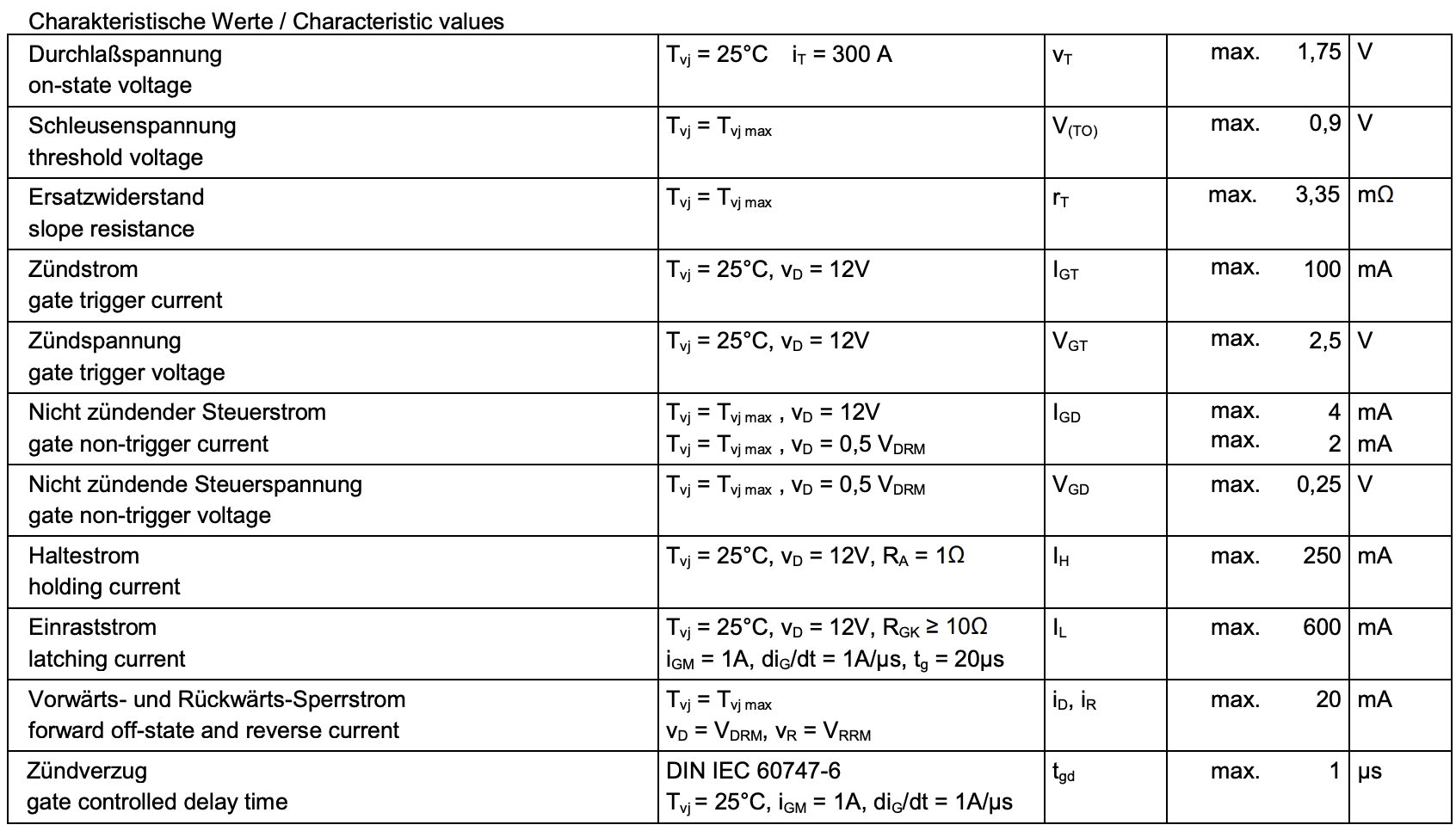

Characteristic values

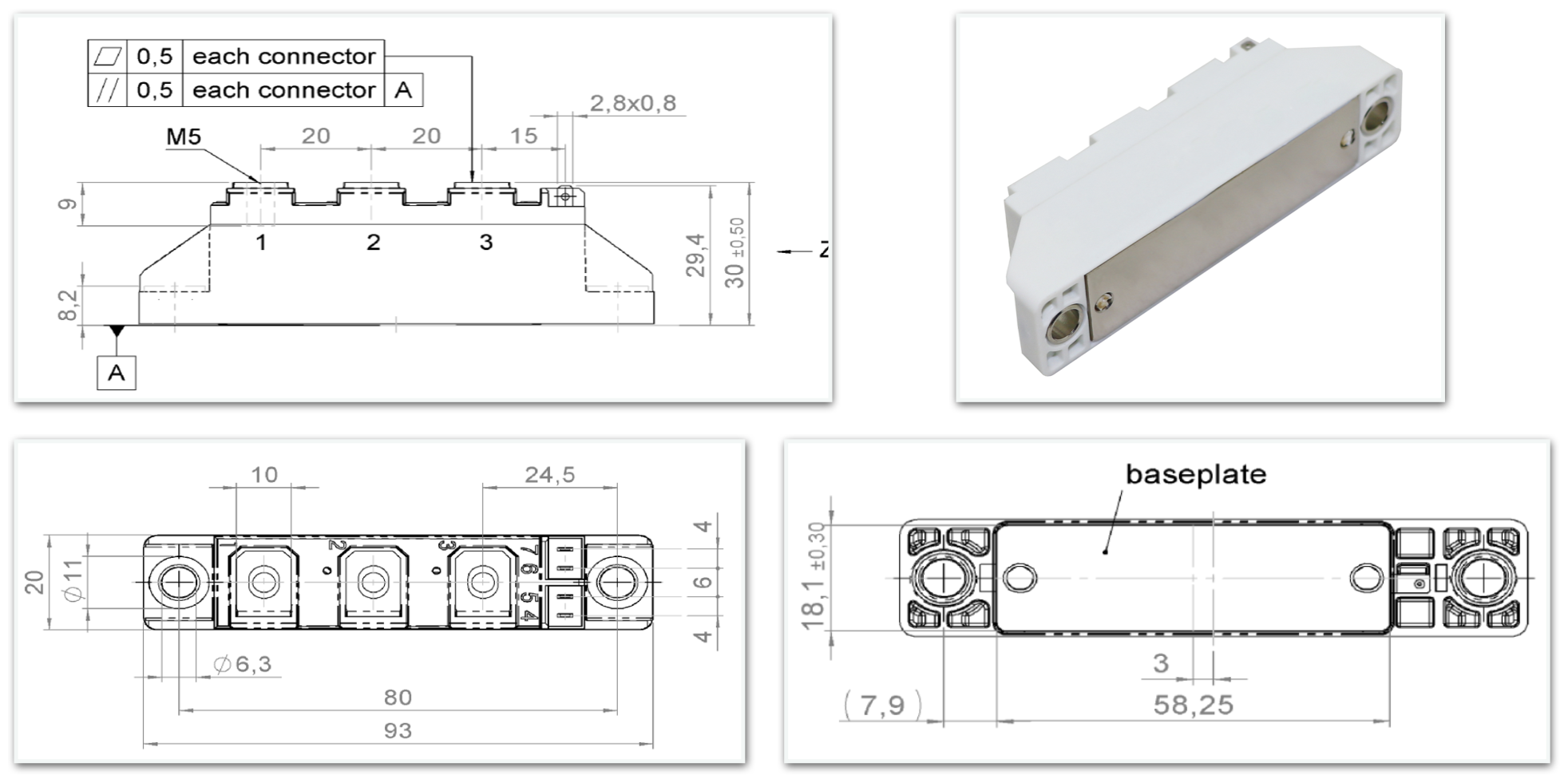

Dimensions
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
