Thyristor Diode Module 260A
Home Products Thyristor Diode ModuleThyristor Diode Modules 26A to 1200AThyristor Diode Module 260A

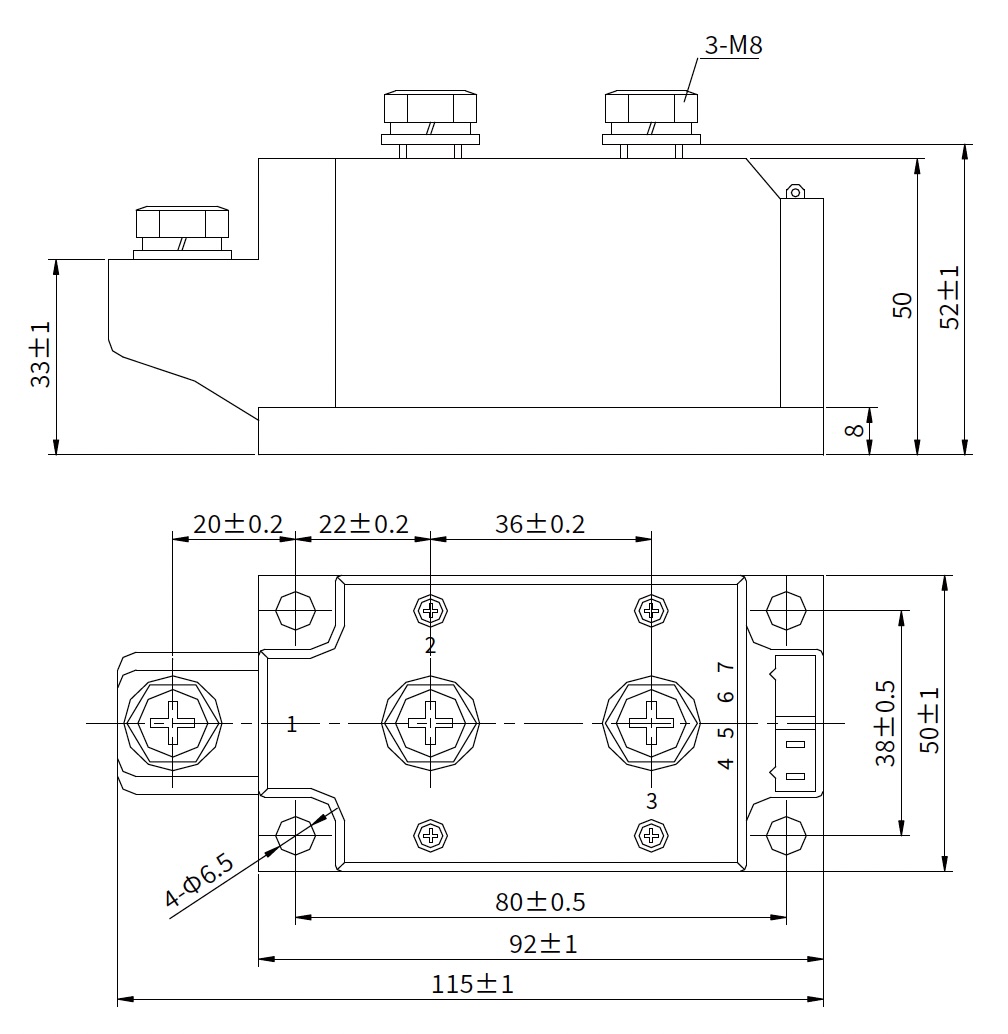

W50
Thyristor Diode Module 260A
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MFC260-12-W50 | 260A | 1200V | 1300V | in Series | W50 |
| MFC260-16-W50 | 260A | 1600V | 1700V | in Series | W50 |
| MFC260-18-W50 | 260A | 1800V | 1900V | in Series | W50 |
| MFC260-20-W50 | 260A | 2000V | 2100V | in Series | W50 |
| MFC260-24-W50 | 260A | 2400V | 2500V | in Series | W50 |
| MFA260-12-W50 | 260A | 1200V | 1300V | Common Anode | W50 |
| MFA260-16-W50 | 260A | 1600V | 1700V | Common Anode | W50 |
| MFA260-18-W50 | 260A | 1800V | 1900V | Common Anode | W50 |
| MFA260-20-W50 | 260A | 2000V | 2100V | Common Anode | W50 |
| MFA260-24-W50 | 260A | 2400V | 2500V | Common Anode | W50 |
| MFK260-12-W50 | 260A | 1200V | 1300V | Common Cathode | W50 |
| MFK260-16-W50 | 260A | 1600V | 1700V | Common Cathode | W50 |
| MFK260-18-W50 | 260A | 1800V | 1900V | Common Cathode | W50 |
| MFK260-20-W50 | 260A | 2000V | 2100V | Common Cathode | W50 |
| MFK260-24-W50 | 260A | 2400V | 2500V | Common Cathode | W50 |
 |
 |

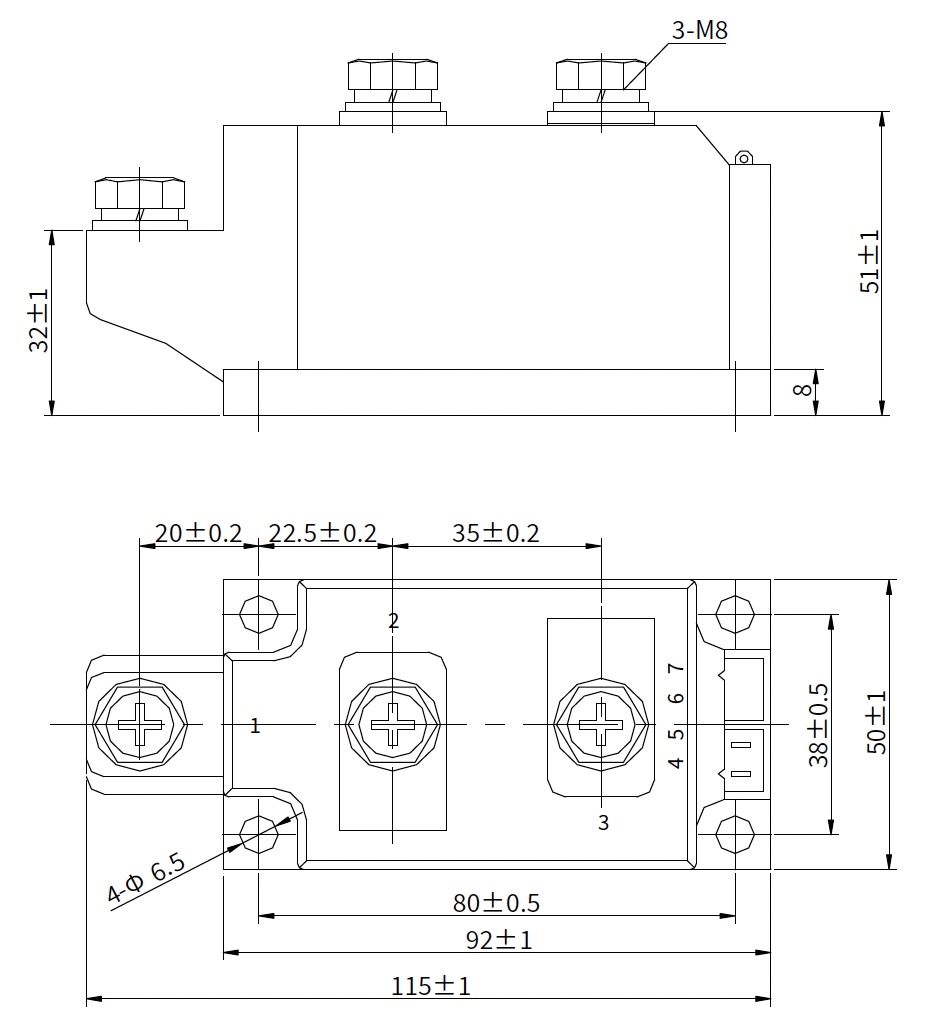

W50D
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MFC260-12-W50D | 260A | 1200V | 1300V | in Series | W50D |
| MFC260-16-W50D | 260A | 1600V | 1700V | in Series | W50D |
| MFC260-18-W50D | 260A | 1800V | 1900V | in Series | W50D |
| MFC260-20-W50D | 260A | 2000V | 2110V | in Series | W50D |
| MFC260-24-W50D | 260A | 2400V | 2500V | in Series | W50D |
| MFA260-12-W50D | 260A | 1200V | 1300V | Common Anode | W50D |
| MFA260-16-W50D | 260A | 1600V | 1700V | Common Anode | W50D |
| MFA260-18-W50D | 260A | 1800V | 1900V | Common Anode | W50D |
| MFA260-20-W50D | 260A | 2000V | 2110V | Common Anode | W50D |
| MFA260-24-W50D | 260A | 2400V | 2500V | Common Anode | W50D |
| MFK260-12-W50D | 260A | 1200V | 1300V | Common Cathode | W50D |
| MFK260-16-W50D | 260A | 1600V | 1700V | Common Cathode | W50D |
| MFK260-18-W50D | 260A | 1800V | 1900V | Common Cathode | W50D |
| MFK260-20-W50D | 260A | 2000V | 2110V | Common Cathode | W50D |
| MFK260-24-W50D | 260A | 2400V | 2500V | Common Cathode | W50D |
 |
|
