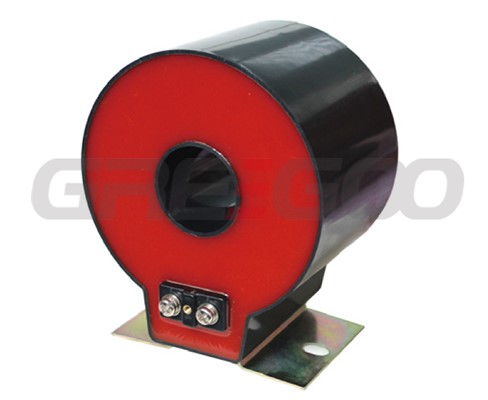

LMZC-10 Through core current transformer
Power factor：COCφ=0.8
Frequency：50Hz or 60Hz
Anti-Pollution grade：Glass II
Ambient temperature：-5℃ -40℃, daily average temperature not more than 30℃
Altitude：≤1000m

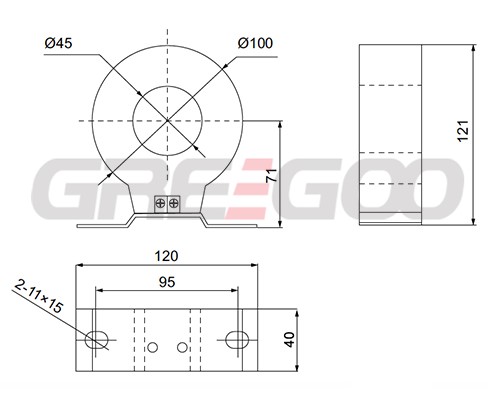

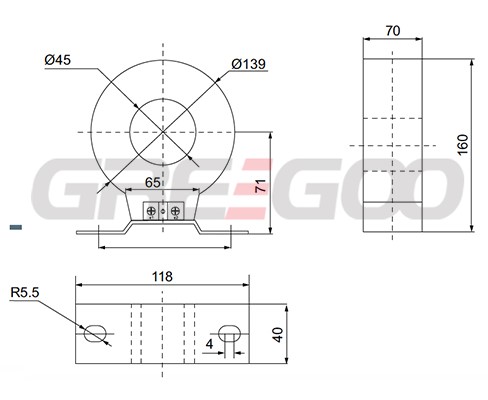

Product Details
| Model | Application |
Rated
secondary
current
|
Measuring CT | Protection CT | Double winding CT | |||||||
|
Rated
primary
current
|
Accuracy & rated
capacity VA |
Accuracy & rated
capacity VA |
Accuracy & rated
capacity VA |
|||||||||
| 0.2S | 0.2 | 0.5 | 10P5 | 10P10 | 10P15 | 0.5 | 1 | 10P10 | 10P5 | |||
| LMZC-10-1 | 75 |
5A
1A
|
/ | / | / | / | / | / | / | / | / | / |
| 100 | / | / | / | 2.5 | / | / | / | / | / | / | ||
| 150 | 2.5 | 2.5 | 2.5 | 2.5 | / | / | / | / | / | / | ||
| 200 | 2.5 | 2.5 | 2.5 | 3.75 | / | / | / | / | / | / | ||
| 300 | 5 | 5 | 5 | 5 | / | / | / | / | / | / | ||
| 400 | 5 | 5 | 5 | 5 | 2.5 | / | / | / | / | / | ||
| 500 | 10 | 10 | 10 | 7.5 | 2.5 | / | / | / | / | / | ||
| 600 | 10 | 10 | 10 | 10 | 5 | / | / | / | / | / | ||
| LMZC-10-2 | 50 |
5A
1A
|
/ | / | 2.5 | / | / | / | / | / | / | / |
| 75 | 2.5 | 3.75 | 3.75 | 2.5 | / | / | / | / | / | / | ||
| 100 | 5 | 5 | 5 | 5 | 2.5 | 1.5 | / | / | / | / | ||
| 150 | 5 | 5 | 5 | 7.5 | 3.75 | 1.5 | / | / | / | / | ||
| 200 | 7.5 | 7.5 | 7.5 | 10 | 5 | 2.5 | 5 | 5 | / | 2.5 | ||
| 300 | 10 | 10 | 15 | 15 | 7.5 | 5 | 7.5 | 7.5 | / | 3.75 | ||
| 400 | 15 | 20 | 20 | 20 | 10 | 7.5 | 7.5 | 7.5 | 2.5 | 5 | ||
| 500 | 20 | 25 | 25 | 25 | 10 | 7.5 | 10 | 10 | 2.5 | 5 | ||
| 600 | 20 | 25 | 30 | 25 | 10 | 7.5 | 10 | 10 | 3.75 | 7.5 | ||
