Overview

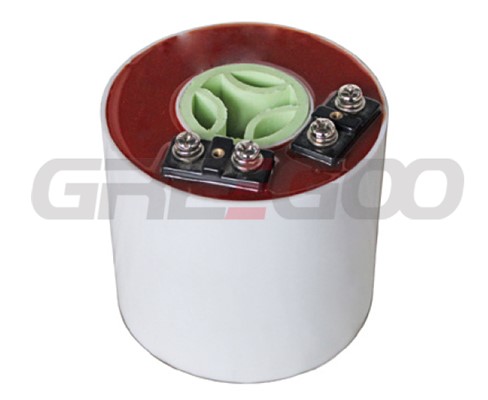

LDZC-10-3 Through core current transformer
Power factor: COCφ=0.8
Frequency: 50Hz or 60Hz
Rated short time thermal current Ith: 40KA,2S
Rated continuous thermal current:1200%In
Measuring: FS<10
Protection: 10P10, 10P15, 10P20
Product Details
| Model | Application |
Rated
secondary
current
|
Measuring CT | Protection CT | |||
|
Rated
primary
current
|
Accuracy & rated capacity VA | Accuracy & rated capacity VA | |||||
| 0.2S | 0.2 | 0.5 | 10P10 | 10P15 | |||
| LMZC-10-3 | 75 |
5A
1A
|
/ | / | 2.5 | 1 | / |
| 100 | 2.5 | 2.5 | 5 | 1.5 | / | ||
| 150 | 2.5 | 2.5 | 5 | 1.5 | / | ||
| 200 | 3.75 | 3.75 | 5 | 3 | 2.5 | ||
| 300 | 5 | 5 | 7.5 | 5 | 2.5 | ||
| 400 | 5 | 5 | 7.5 | 5 | 3.75 | ||
| 500 | 5 | 5 | 7.5 | 7.5 | 5 | ||
| 600 | 7.5 | 7.5 | 10 | 7.5 | 5 | ||
