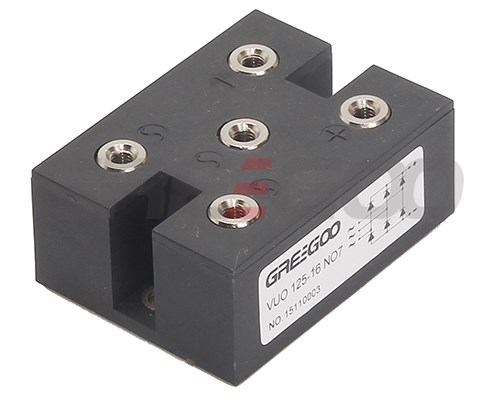

Three Phase Rectifier Bridge (VUO 105 and VUO125)

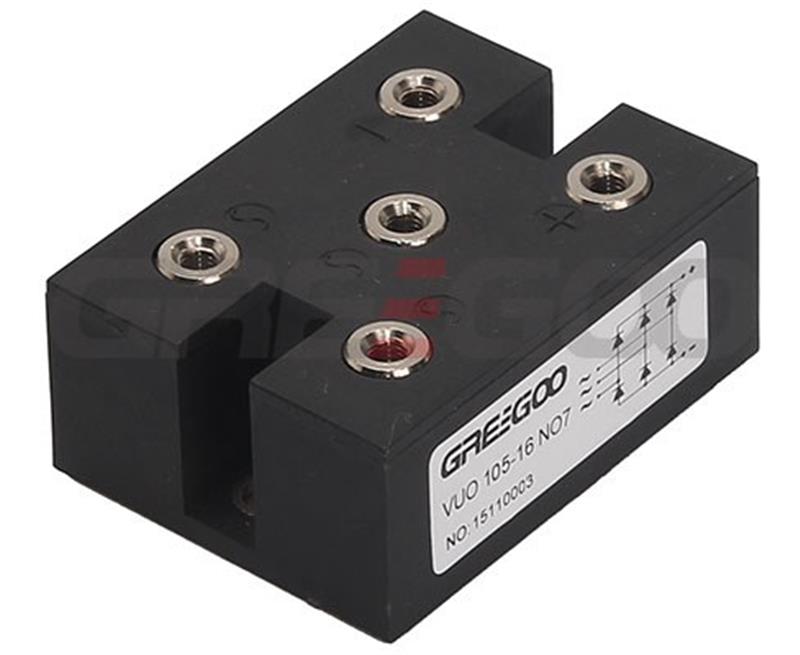

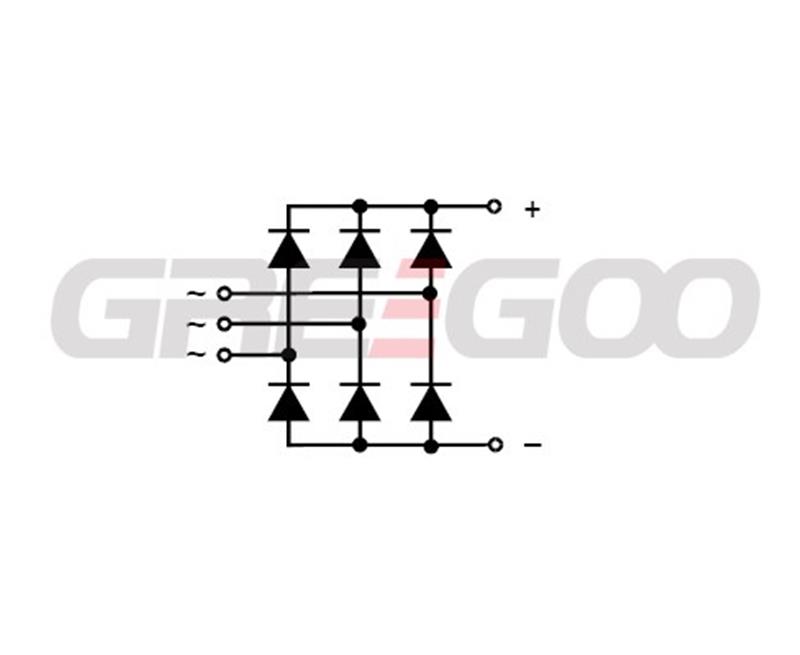

Three Phase Rectifier Bridge (VUO-105)
Features
Package with screw terminals
Isolation voltage 3000 V~
Planar passivated chips
Blocking voltage up to 1800 V
Low forward voltage drop
Applications
Supplies for DC power equipment
Input rectifiers for PWM inverter
Battery DC power supplies
Field supply for DC motors
Advantages
Easy to mount with two screws
Space and weight savings
Improved temperature and power cycling
Parameter | VUO105-16NO7 |
VRRM, (V) | 1600 |
VRSM, (V) | 1700 |
IDAVM, (A) | 120 |
@ TH, (°C) | - |
@ Tc, (°C) | 105 |
IFSM, 10 ms, Tvj = 45°C, (A) | 1500 |
VT0, (V) | 0.78 |
rT, (mOhms) | 4.8 |
Tvjm, (°C) | 150 |
RthJC, per chip, (K/W) | 0.80 |
RthJH, per chip, (K/W) | 1.10 |
Parameter | VUO125-16NO7 |
VRRM, (V) | 1600 |
VRSM, (V) | 1700 |
IDAVM, (A) | 150 |
@ TH, (°C) | - |
@ Tc, (°C) | 110 |
IFSM, 10 ms, Tvj = 45°C, (A) | 1800 |
VT0, (V) | 0.76 |
rT, (mOhms) | 3.6 |
Tvjm, (°C) | 150 |
RthJC, per chip, (K/W) | 0.60 |
RthJH, per chip, (K/W) | 0.90 |
