1 phase rectifier bridge 130A and 160A
Home Products Diode Bridge ModuleIXYS Diode Bridge module1 phase rectifier bridge 130A and 160A
Product Details

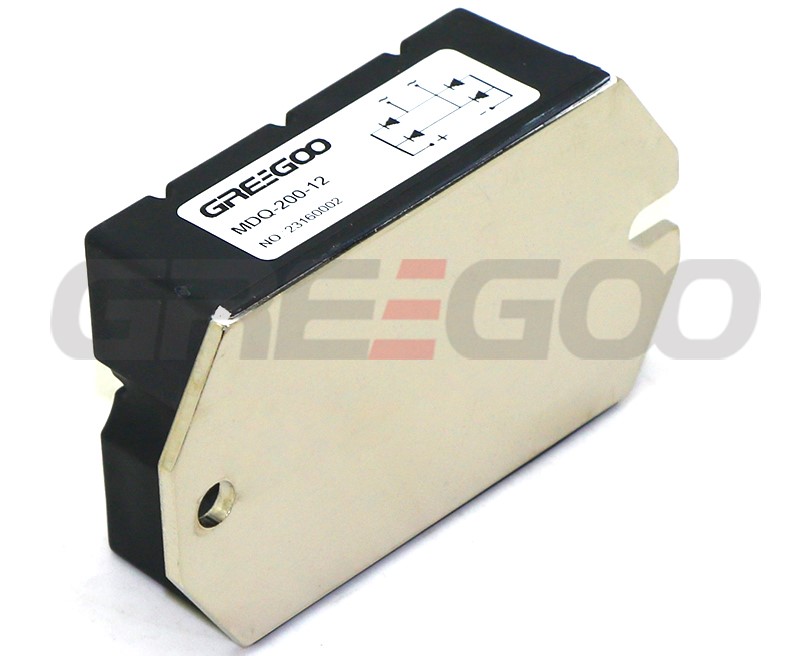

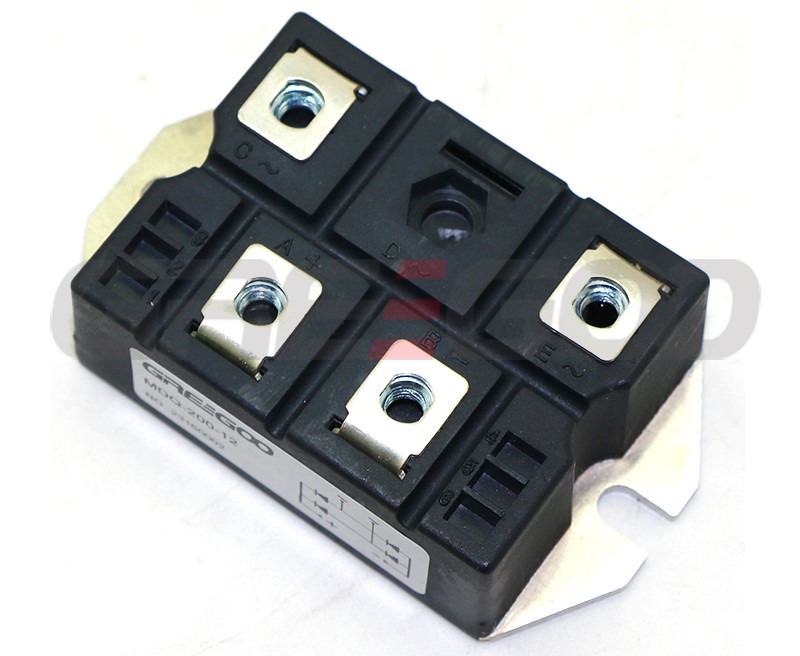

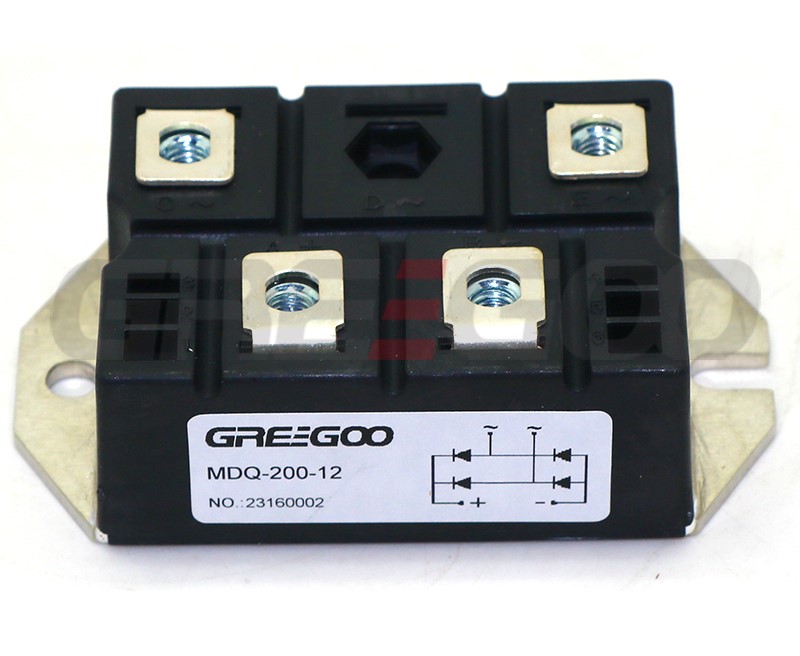

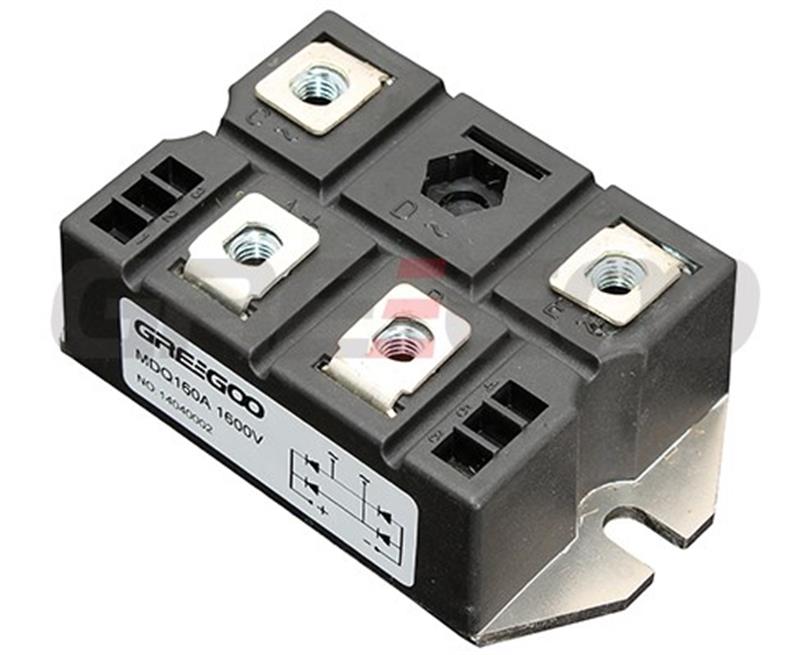

1 phase rectifier bridge 130A and 160A
1 phase Rectifier Bridge
Feature:
- Package with DCB ceramic
- Improved temperature and power cycling
- Planar passivated chips
- Very low forward voltage drop
- Very low leakage current
- Industry standard outline
- RoHS compliant
- Easy to mount with two screws
- Base plate: Copper internally DCB isolated
- Advanced power cycling
Application:
- Diode for main rectification
- For one phase bridge configurations
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors

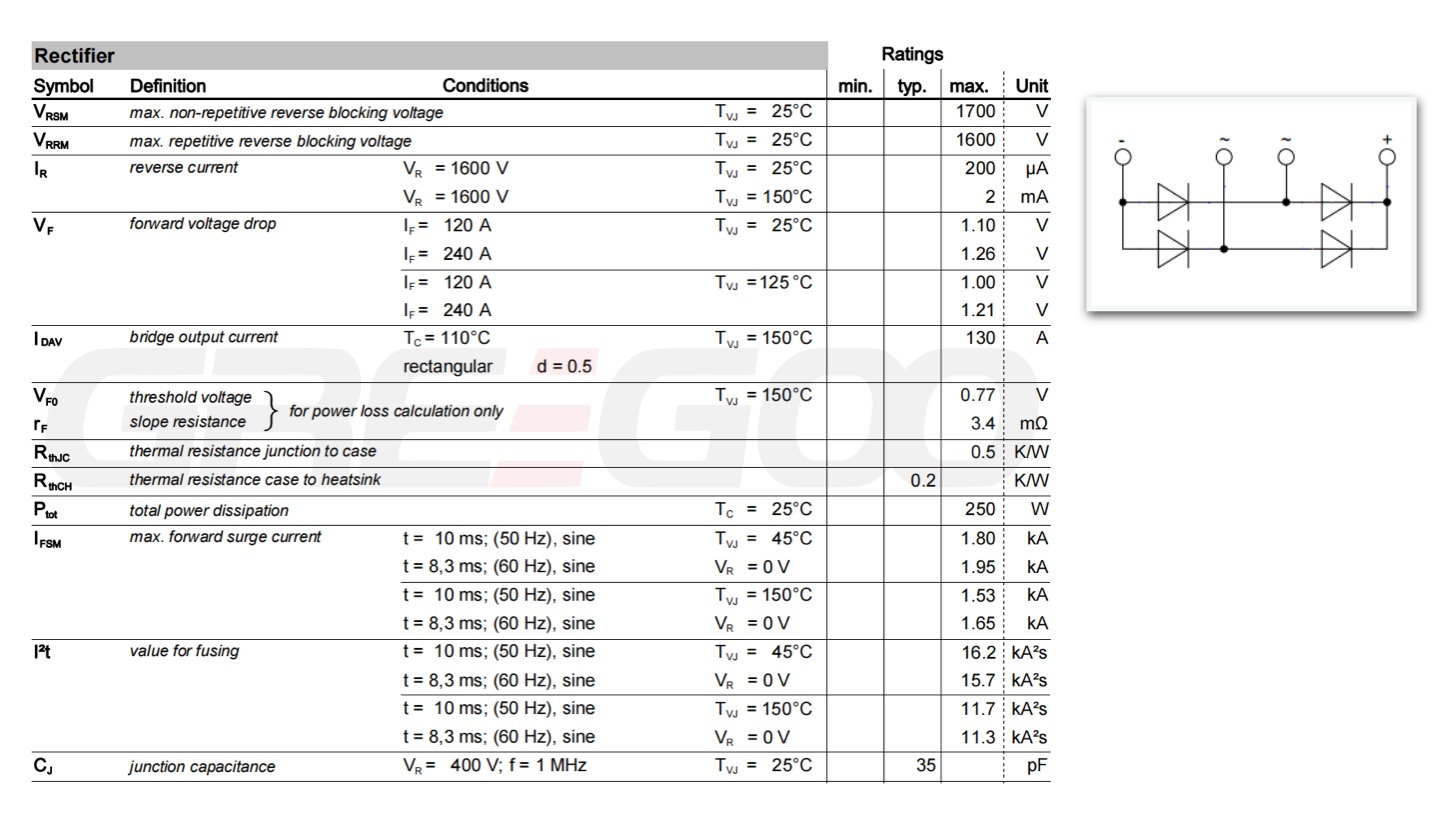

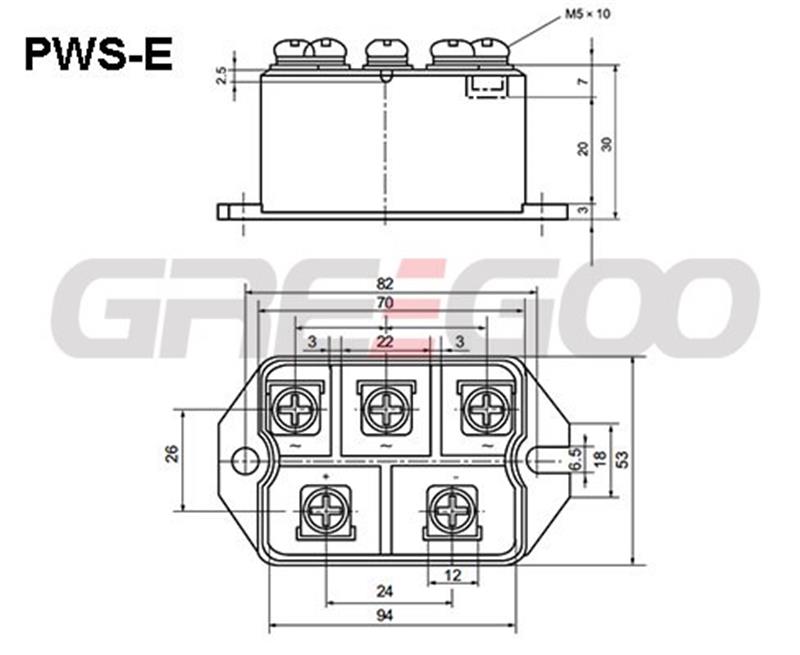

| Part No. | Equal to | VRRM | IDAVM | @Tc | IFSM | VT0 | rT | Tvjm | RthJC | RthJH | Package |
| (V) | (V) | (A) | 10ms | (V) | (mOhms) | (°C) | perChip | perchip | Style | ||
| Tvj=45°C | (K/W) | (K/W) | |||||||||
| (A) | |||||||||||
| MDQ130-08I | VBO130-08NO7 | 800 | 130 | 110 | 1800 | 0.77 | 3.4 | 150 | 0.5 | 0.7 | PWS-E |
| MDQ160-08I | VBO160-08NO7 | 800 | 160 | 110 | 2800 | 0.77 | 2.4 | 150 | 0.4 | 0.55 | PWS-E |
| MDQ200-08I | VBO210-08NO7 | 800 | 200 | 110 | |||||||
| MDQ130-12I | VBO130-12NO7 | 1200 | 130 | 110 | 1800 | 0.77 | 3.4 | 150 | 0.5 | 0.7 | PWS-E |
| MDQ160-12I | VBO160-12NO7 | 1200 | 160 | 110 | 2800 | 0.77 | 2.4 | 150 | 0.4 | 0.55 | PWS-E |
| MDQ160-16I | VBO160-16NO7 | 1600 | 160 | 110 | 2800 | 0.77 | 2.4 | 150 | 0.4 | 0.55 | PWS-E |
| MDQ130-16I | VBO130-16NO7 | 1600 | 130 | 110 | 1800 | 0.77 | 3.4 | 150 | 0.5 | 0.7 | PWS-E |
| MDQ160-18I | VBO160-18NO7 | 1800 | 160 | 110 | 2800 | 0.77 | 2.4 | 150 | 0.4 | 0.55 | PWS-E |
| MDQ130-18I | VBO130-18NO7 | 1800 | 130 | 110 | 1800 | 0.77 | 3.4 | 150 | 0.5 | 0.7 | PWS-E |
VBO130
VBO130/08 VBO130/12 VBO130/16 VBO130/18
VBO160
VBO160/08 VBO160/12 VBO160/16 VBO160/18
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
