Three phase bridge rectifier SQL series
| Type | ID | VRRM VDRM |
IFSM | IFAV | IRRM | VISOL | TVj max | Rth(j-c) | W | Package, Dimensions L×B×H |
| A | V | A | A | mA | V | °C | °C/W | g | mm | |
| SQL5 | ||||||||||

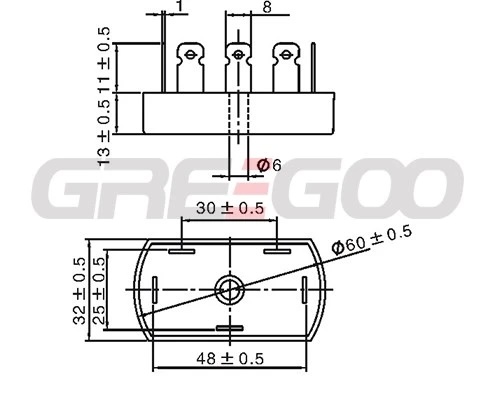

| SQL0501 | 5 | 100 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL0502 | 5 | 200 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL0504 | 5 | 400 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL0506 | 5 | 600 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL0508 | 5 | 800 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL0510 | 5 | 1000 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL0512 | 5 | 1200 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL0514 | 5 | 1400 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL0516 | 5 | 1600 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL10 | ||||||||||
| SQL1001 | 10 | 100 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1002 | 10 | 200 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1004 | 10 | 400 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1006 | 10 | 600 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1008 | 10 | 800 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1010 | 10 | 1000 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1012 | 10 | 1200 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1014 | 10 | 1400 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1016 | 10 | 1600 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL15 | ||||||||||
| SQL1501 | 15 | 100 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1502 | 15 | 200 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1504 | 15 | 400 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1506 | 15 | 600 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1508 | 15 | 800 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1510 | 15 | 1000 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1512 | 15 | 1200 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1514 | 15 | 1400 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL1516 | 15 | 1600 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL20 | ||||||||||
| SQL2001 | 20 | 100 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2002 | 20 | 200 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2004 | 20 | 400 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2006 | 20 | 600 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2008 | 20 | 800 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2010 | 20 | 1000 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2012 | 20 | 1200 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2014 | 20 | 1400 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2016 | 20 | 1600 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL25 | ||||||||||
| SQL2501 | 25 | 100 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2502 | 25 | 200 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2504 | 25 | 400 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2506 | 25 | 600 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2508 | 25 | 800 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |

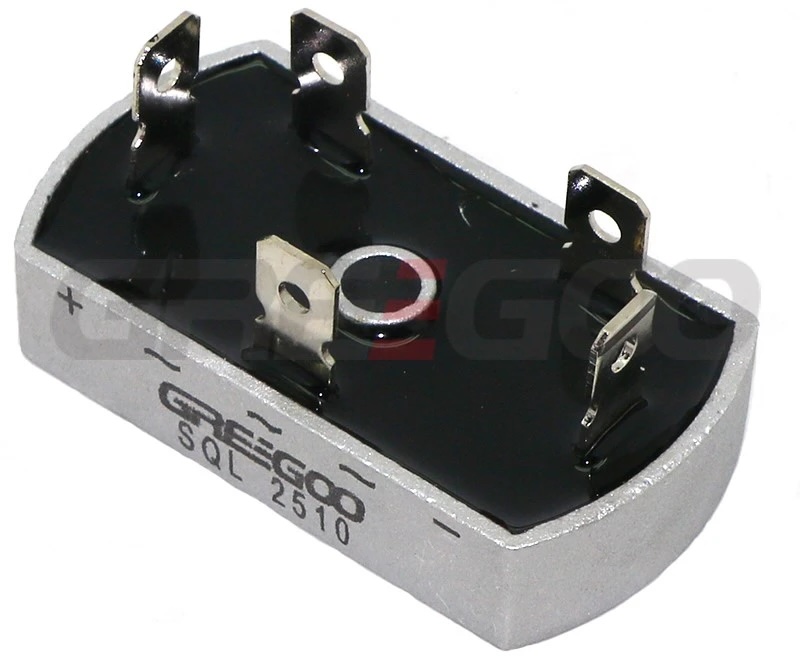

| SQL2510 | 25 | 1000 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2512 | 25 | 1200 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2514 | 25 | 1400 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL2516 | 25 | 1600 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL30 | ||||||||||
| SQL3001 | 30 | 100 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3002 | 30 | 200 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3004 | 30 | 400 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3006 | 30 | 600 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3008 | 30 | 800 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3010 | 30 | 1000 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3012 | 30 | 1200 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3014 | 30 | 1400 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3016 | 30 | 1600 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL35 | ||||||||||
| SQL3501 | 35 | 100 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3502 | 35 | 200 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3504 | 35 | 400 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3506 | 35 | 600 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3508 | 35 | 800 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |

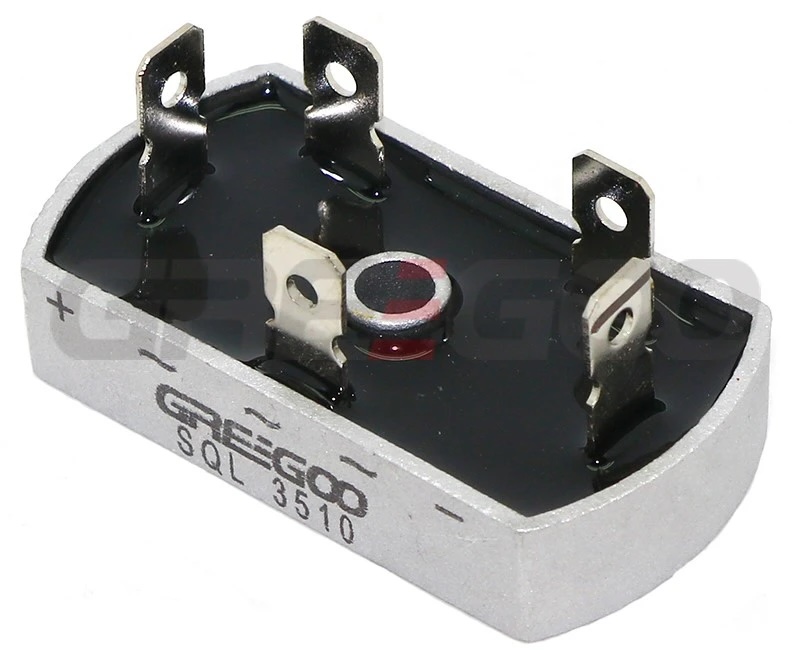

| SQL3510 | 35 | 1000 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3512 | 35 | 1200 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3514 | 35 | 1400 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL3516 | 35 | 1600 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL40 | ||||||||||
| SQL4001 | 40 | 100 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL4002 | 40 | 200 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL4004 | 40 | 400 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL4006 | 40 | 600 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL4008 | 40 | 800 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL4010 | 40 | 1000 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL4012 | 40 | 1200 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL4014 | 40 | 1400 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL4016 | 40 | 1600 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL50 | ||||||||||
| SQL5001 | 50 | 100 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL5002 | 50 | 200 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL5004 | 50 | 400 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL5006 | 50 | 600 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL5008 | 50 | 800 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |

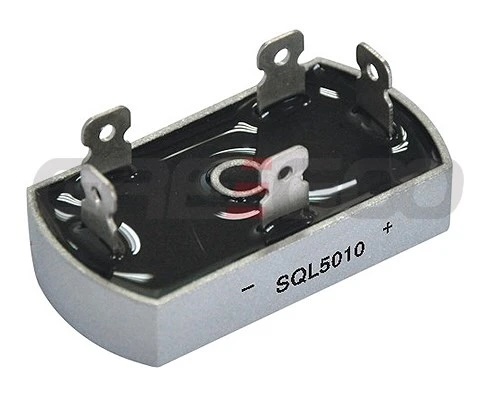

| SQL5010 | 50 | 1000 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL5012 | 50 | 1200 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL5014 | 50 | 1400 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL5016 | 50 | 1600 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| SQL60 | ||||||||||

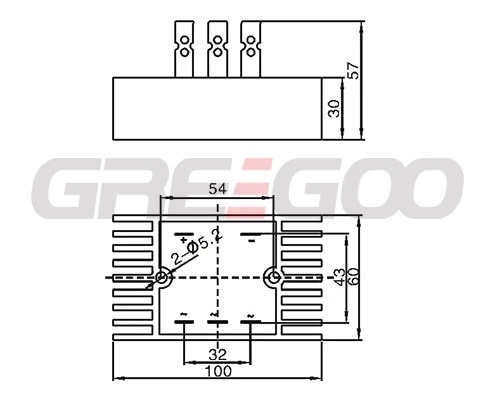

| SQL6001 | 60 | 100 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL6002 | 60 | 200 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL6004 | 60 | 400 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL6006 | 60 | 600 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL6008 | 60 | 800 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL6010 | 60 | 1000 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL6012 | 60 | 1200 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL6014 | 60 | 1400 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL6016 | 60 | 1600 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL100 | ||||||||||
| SQL10001 | 100 | 100 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL10002 | 100 | 200 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL10004 | 100 | 400 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL10006 | 100 | 600 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL10008 | 100 | 800 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL10010 | 100 | 1000 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL10012 | 100 | 1200 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL10014 | 100 | 1400 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL10016 | 100 | 1600 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| SQL150 | ||||||||||

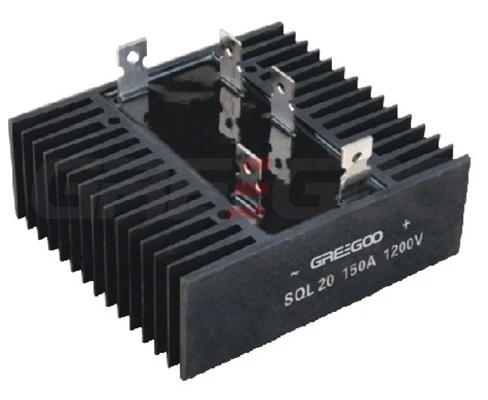

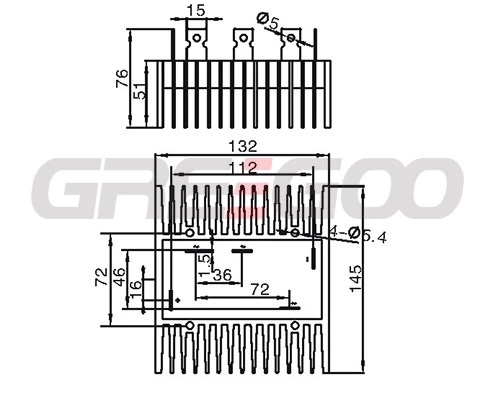

| SQL15001 | 150 | 100 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL15002 | 150 | 200 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL15004 | 150 | 400 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL15006 | 150 | 600 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL15008 | 150 | 800 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL15010 | 150 | 1000 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL15012 | 150 | 1200 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL15014 | 150 | 1400 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL15016 | 150 | 1600 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL200 | ||||||||||
| SQL20001 | 200 | 100 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL20002 | 200 | 200 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL20004 | 200 | 400 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL20006 | 200 | 600 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL20008 | 200 | 800 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL20010 | 200 | 1000 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL20012 | 200 | 1200 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL20014 | 200 | 1400 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL20016 | 200 | 1600 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL250 | ||||||||||
| SQL25001 | 250 | 100 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL25002 | 250 | 200 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL25004 | 250 | 400 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL25006 | 250 | 600 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL25008 | 250 | 800 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL25010 | 250 | 1000 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL25012 | 250 | 1200 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL25014 | 250 | 1400 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| SQL25016 | 250 | 1600 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
