Product Details

Temperature Sensors

Temperature sensors mainly include high-precision thermocouples, high-precision thermal resistors, industrial assembly types, armored types, wear-resistant types, corrosion-resistant types, and various customizable platinum-rhodium thermocouples, as well as various temperature measurement elements and temperature compensation wires. The product range is rich and complete, meeting various user needs.



Product Types and Application Fields



MT-100 Screw Series

Various thread specifications used for temperature measurement in various mechanical equipment molds, widely used in various injection molding machines, packaging machines, printing machines, food machinery, etc.



MT-200 Probe Series

Customized according to diameter, length, and thread, used for temperature measurement inside mechanical equipment molds and enclosures, widely used in plastic machines, ovens, food, testing equipment, etc.



MT-500 Spring Series

Spring and pressure spring, can be equipped with different threaded bases, widely used in various plastic machines such as injection molding machines, blow molding machines, extruders, and related heating molds.



MT-600 Needle Series

The minimum diameter can be as small as 0.5mm, and the diameter and length can be customized. Solid armored, good flexibility, high temperature resistance, widely used in various high-precision occasions.



MT-700 Various Non-standard Series

Various non-standard specifications, customized according to drawings and requirements.



MT-800 Industrial Assembly Series

Customized according to various materials, temperatures, lengths, etc., mainly used in industrial applications, wear-resistant, corrosion-resistant, platinum-rhodium, used in various industries such as heat treatment, chemical industry, food, and petroleum.



Model Explanation

MT-A/B/C/D/E/F/G/H

A Product Series: Screw Series, Probe Series, Spring Series, Needle Series, Industrial Assembly, Non-standard Series

B Calibration Type: K, E, J, T, N, B, R, S, Pt100, Cu50

C Temperature Range: Thermocouple (0-200, 0-400, 0-600, 0-800, 0-1000, 0-1200, 0-1600), Thermal Resistor (-200-300, -200-500)

D Probe Diameter: 0.5mm~22mm

E Thread: M6, W1/4, M8, M10, M12, M16, M20, M27, PT1/8, PT1/4, PT1/2, etc., can be customized

F Lead Wire: Shielded high-temperature wire, Teflon wire, fiber wire, 0.5m~20m (wire length can be customized)

G Accuracy: Class A, Class B

H Grounding Type: Regular grounding, insulated non-grounding

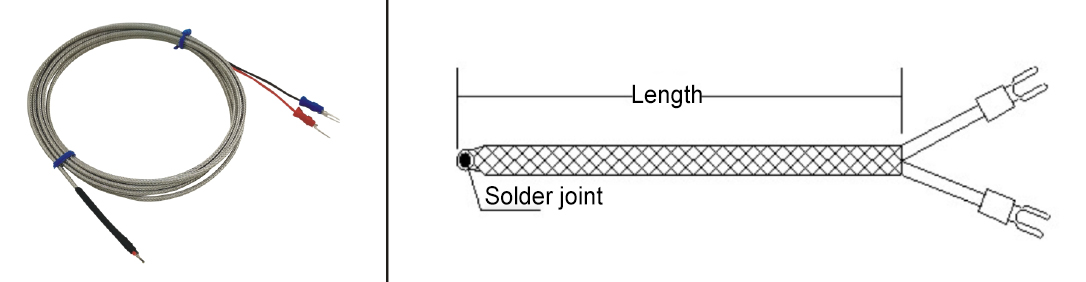

MT-100/120

Calibration Type: K, E, J, T, N

Specification: Without threads, solder point, 0-400℃

Lead Wire: Shielded wire, fiber wire, PTFE wire

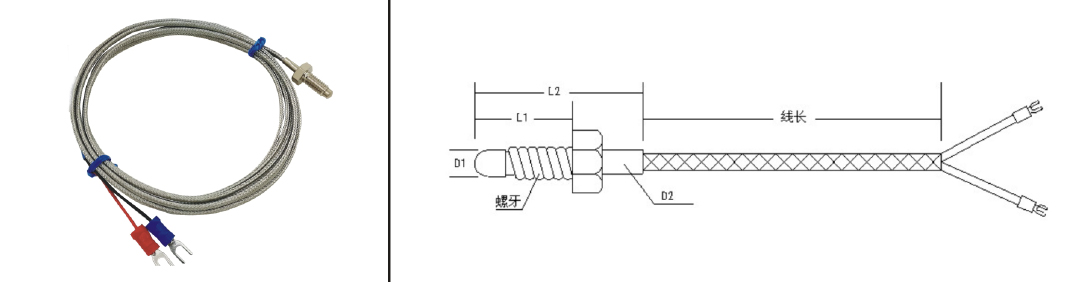

MT-101/121 Screw Type

Calibration Type: K, E, J, T, N, Pt100

Thread: M6, M8, W1/4, 5/16

Specification: 0-600℃

Lead Wire: Shielded wire, fiber wire, PTFE wire

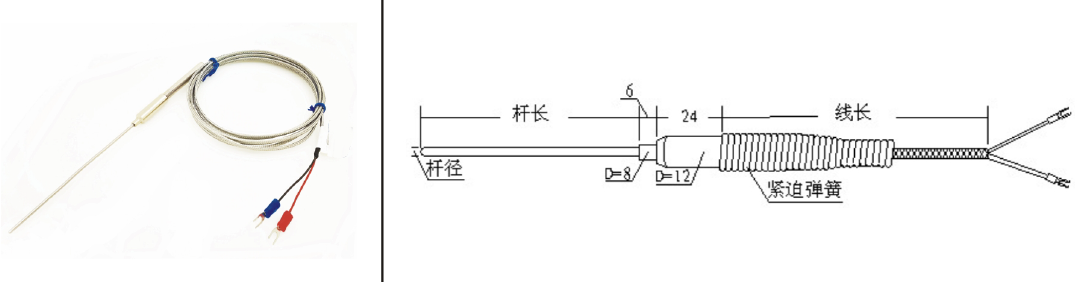

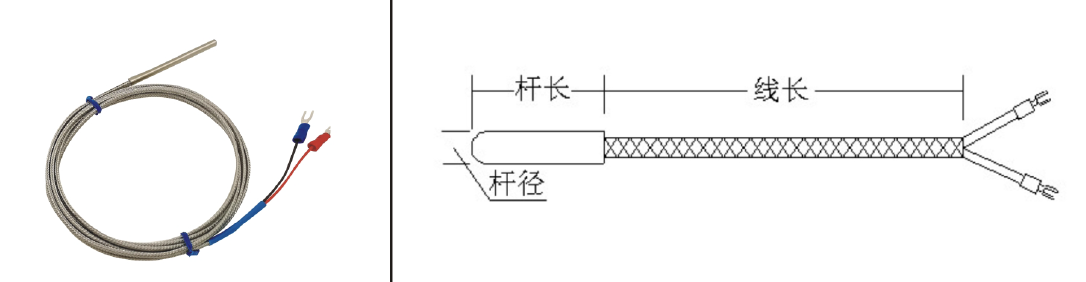

MT-200/220 Probe Type

Calibration Type: K, E, J, T, N, Pt100

Specification: Diameter 3-6mm, straight rod, 0-600℃

Lead Wire: Shielded wire, fiber wire, PTFE wire

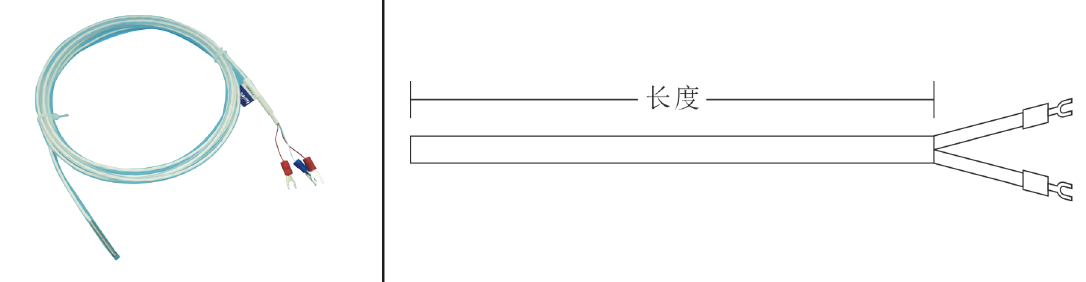

MT-2000F/M2200FA Anti-corrosion and Waterproof Type

Calibration Type: K, Pt100

Specification: Diameter 4-6mm, straight rod, -5-200℃

Lead Wire: Corrosion-resistant Teflon


MT-200A/MT-220A Threaded Probe Type

Calibration Type: K, E, J, T, N, Pt100

Specification: Diameter 5mm, M8, 0-600℃

Lead Wire: Shielded wire, fiber wire, PTFE wire, PTFE shielded wire


MT-200B/MT-220B Waterproof Thread Type

Calibration Type: K, E, J, T, N, Pt100

Thread: M8/M10/M12/M16, 1/4, 1/2, etc.

Specification: Diameter 3-8mm, 0-600℃

Lead Wire: Shielded wire, fiber wire, PTFE wire

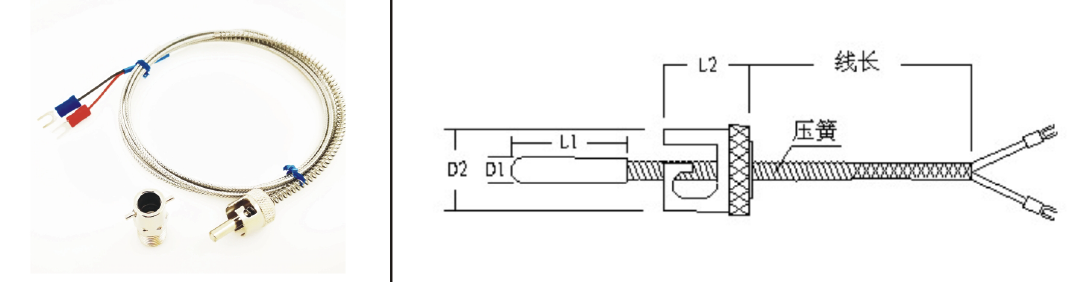

MT-500/MT-520 Snap-on Type

Calibration Type: K, E, J, T, N, Pt100

Thread Options: M8, M12, M10, 1/4, etc.

Specification: Diameter 4.5mm, 0-600℃

Lead Wire: Shielded wire, fiber wire, PTFE wire

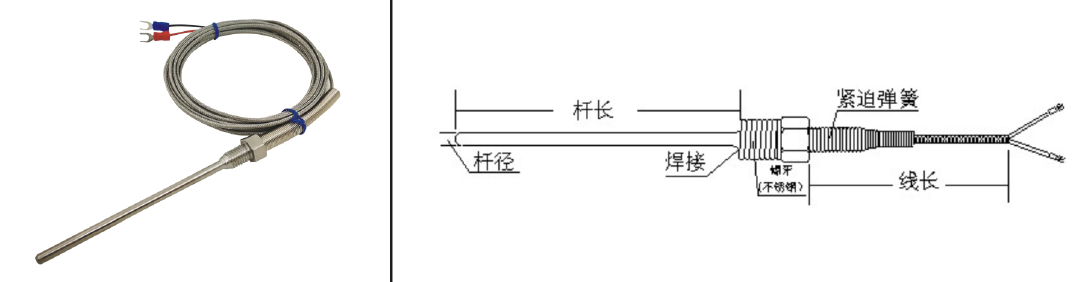

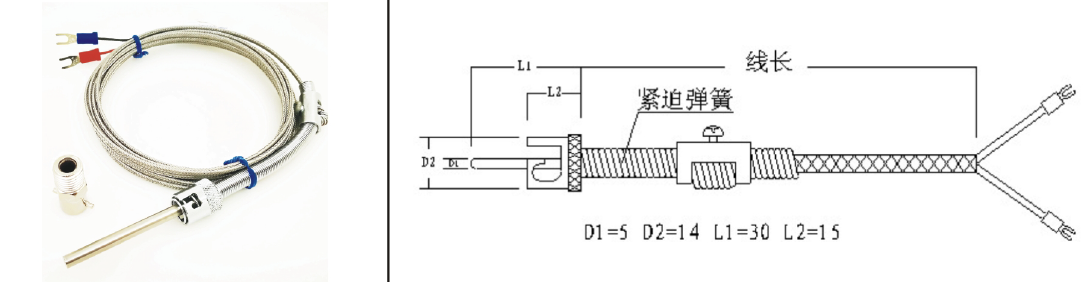

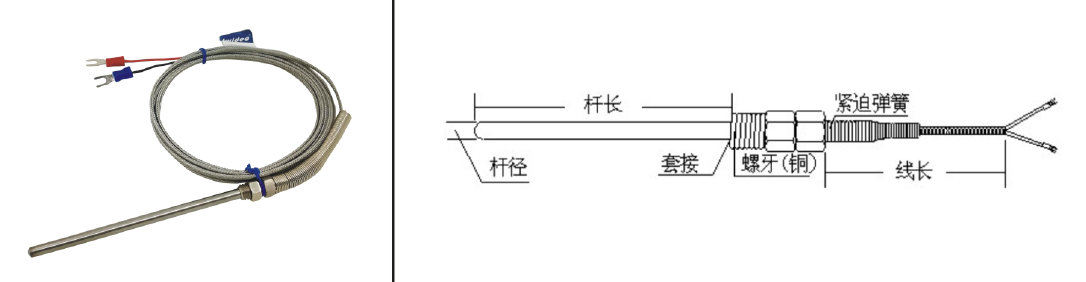

MT-500D/MT-520D Compression Spring Type

Calibration Type: K, E, J, T, N, Pt100

Compatible Thread: M8, M12, M10, 1/4, etc.

Specification: Diameter 5mm, 0-600℃

Lead Wire: Shielded wire, fiber wire, PTFE wire


MT-600/MT-620 Armored Needle Type

Calibration Type: K, E, J, T, N, Pt100

Specification: Diameter 1-8mm, 0-500℃, 0-800℃

Lead Wire: Shielded wire, fiber wire, PTFE wire

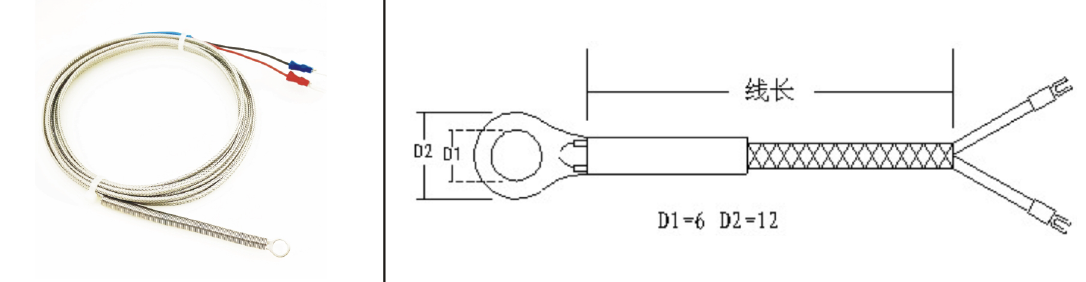

MT-701/MT-721 Washer Type

Calibration Type: K, E, J, T, N, Pt100

Specification: D3, D5, D10, 0-400℃

Lead Wire: Shielded wire, fiber wire, PTFE wire

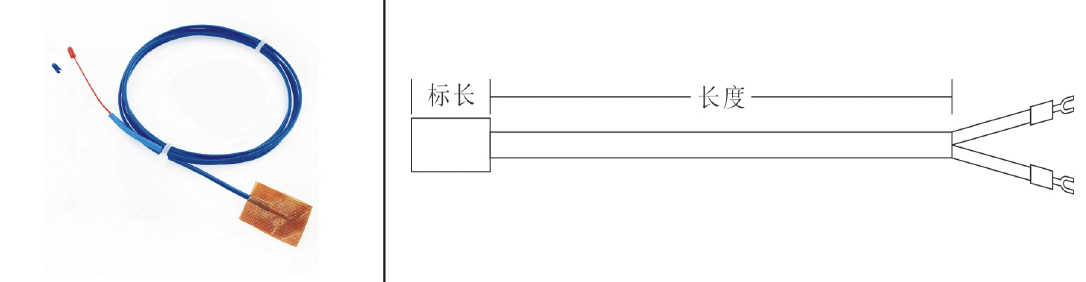

MT-702/MT-722 Patch Type

Calibration Type: K, E, J, T, N, Pt100

Specification: 1-10m, 0-300℃

Lead Wire: Shielded wire, PTFE wire

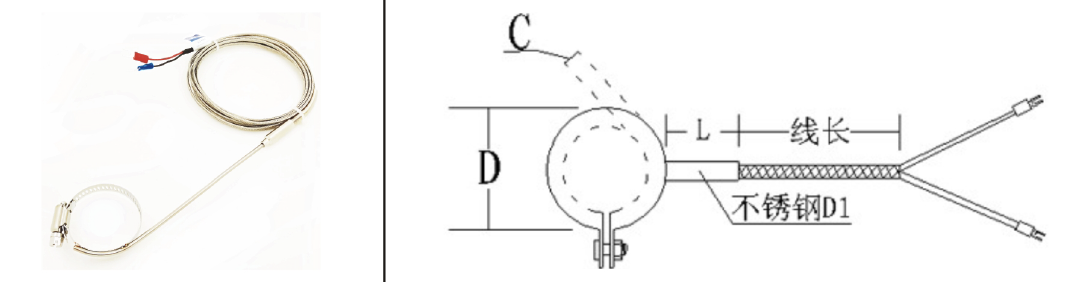

MT-703/MT-723 Clamp Type

Calibration Type: K, E, J, T, N, Pt100

Specification: D35-60mm, 0-600℃

Lead Wire: Shielded wire, fiber wire


MT-705/MT-725 Terminal Type

Calibration Type: K, E, J, T, N, Pt100

Lead Wire: Shielded wire, fiber wire, 0-600℃

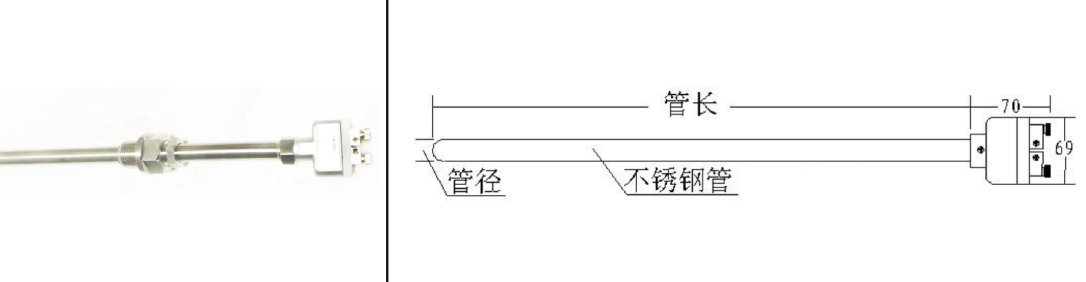

MT-706/MT-726 Plug with Straight Rod Type

Calibration Type: K, E, J, T, N, Pt100

Specification: Diameter 1-6mm

Temperature Range: 0-1300, 0-600, 0-800℃

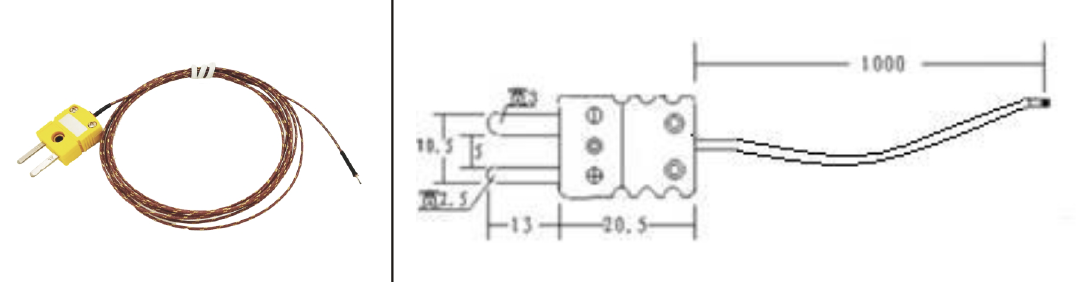

MT-707/MT-727 Plug with Solder Point Type

Calibration Type: K, E, J, T

Specification: Solder point type, 4mm, 0-600℃

Lead Wire: Shielded wire, fiber wire, PTFE wire

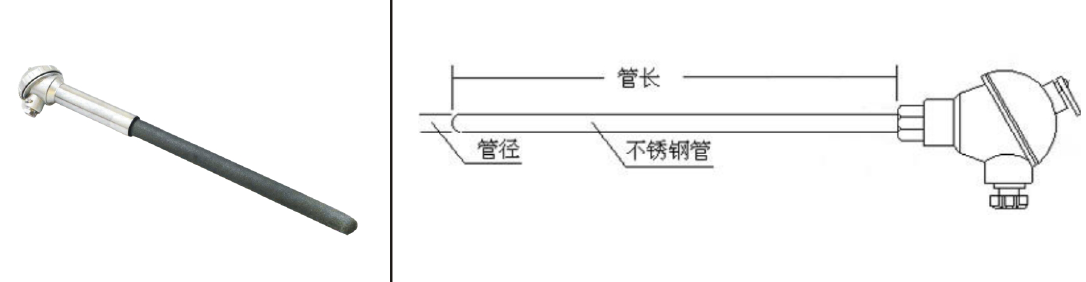

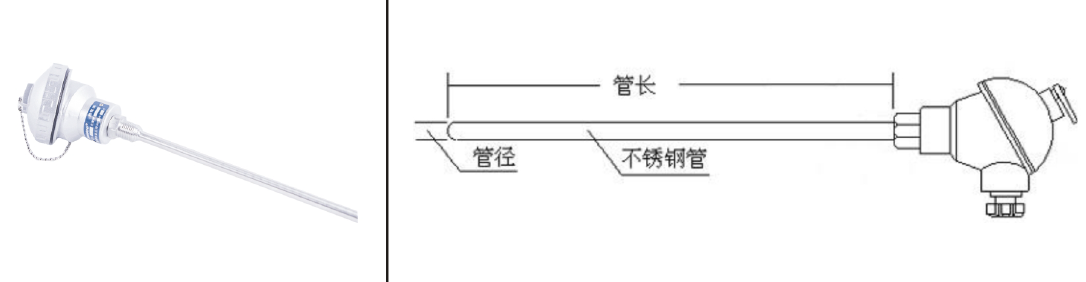

MT-801/MT-821 Industrial Assembly Straight Type

Type: K, E, Pt100, B, R, S

Specifications: Diameter 3-22mm

Mounting: No fixed mounting

Temperature Range: -200-500℃/ 0-800℃/ 0-1200℃

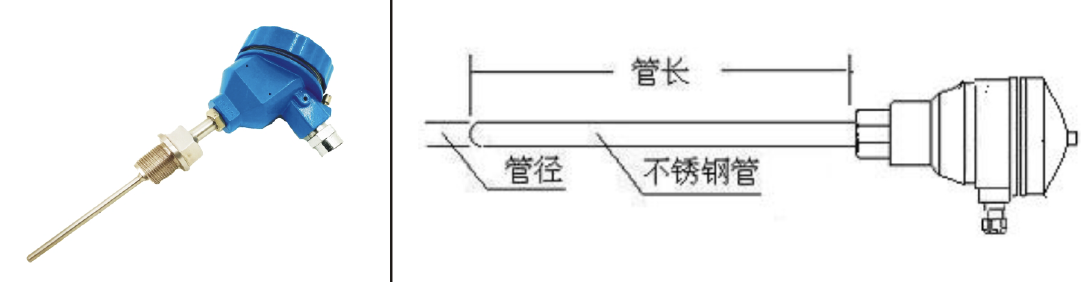

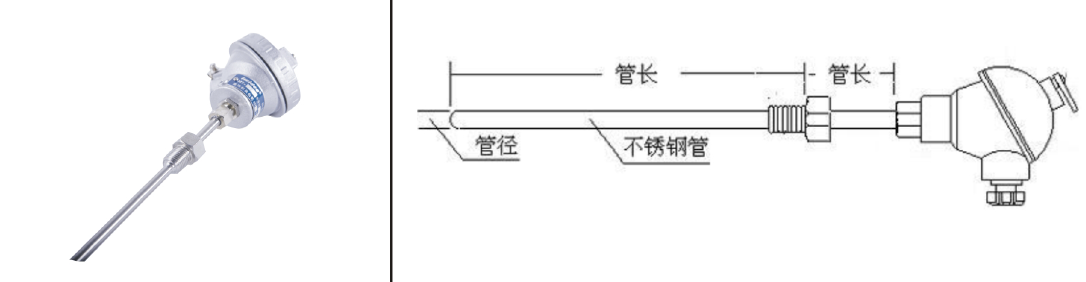

MT-802/MT-822 Industrial Assembly Threaded Type

Type: K, E, Pt100, B, R, S

Specifications: Diameter 3-22mm

Mounting: Threaded M12, M16, M27, PT1/2, PT3/4

Temperature Range: -200-500°C / 0-800°C / 0-1200°C

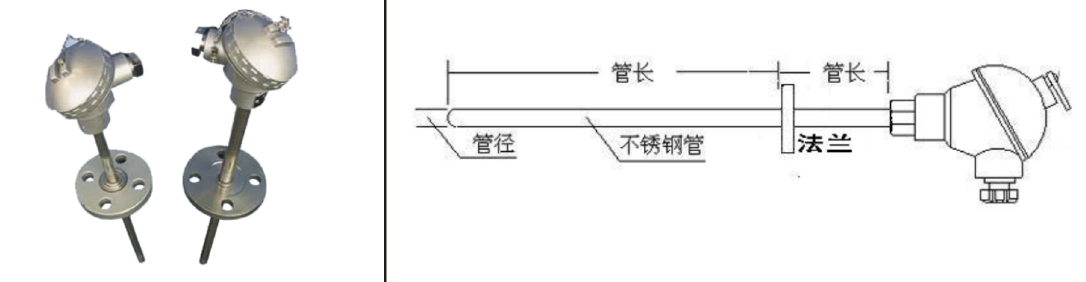

MT-803/MT-823 Industrial Assembly Flange Type

Type: K, E, Pt100, B, R, S

Specifications: Diameter 3-22mm

Mounting: Fixed flange, movable flange

Temperature Range: -200-500°C / 0-800°C / 0-1200°C


MT-805 T-Head Assembly Type

Type: K, B, R, S

Specifications: Diameter 3-22mm

Mounting: Threaded M12, M16, M27, PT1/2

Temperature Range: 0-500°C, 0-800°C, 0-1200°C

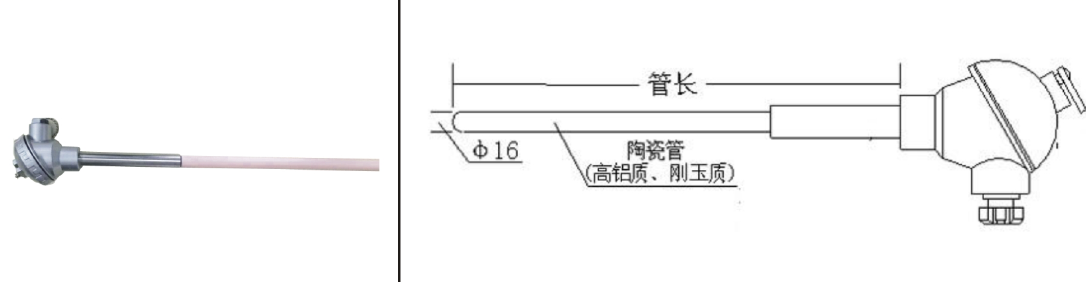

MT-806 Industrial Ceramic Sapphire Type

Type: K, B, R, S

Specifications: Diameter 3-22mm

Mounting: No fixed mounting

Temperature Range: 0-1200°C, 0-1800°C


MT-807 Wear-Resistant Industrial Type

Type: K, E, J, T, N, Pt100

Specifications: Diameter 10-22mm

Mounting: Fixed, threaded, flange

Temperature Range: 0-500°C, 0-1000°C, 0-1200°C


MT-808 Industrial Assembly Transmitter Type

Type: K, E, Pt100, B, R, S

Specifications: Diameter 3-22mm

Mounting: Fixed, threaded, flange

Temperature Range: 0-500°C, 0-800°C, 0-1000°C, and others

Output: 4-20mA (DC24V two-wire)


MT-809 Industrial Assembly Explosion-proof Type

Type: K, E, J, T, N, Pt100, B, R, S

Specifications: Diameter 6-22mm

Mounting: No fixed mounting

Temperature Range: 0-800°C, 0-1000°C, 0-1200°C

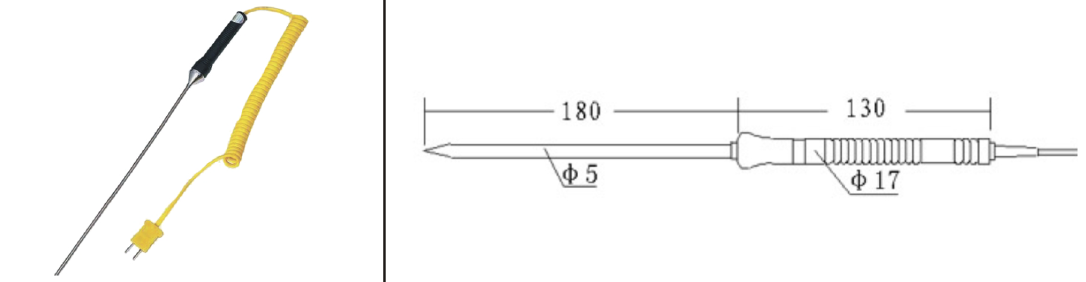

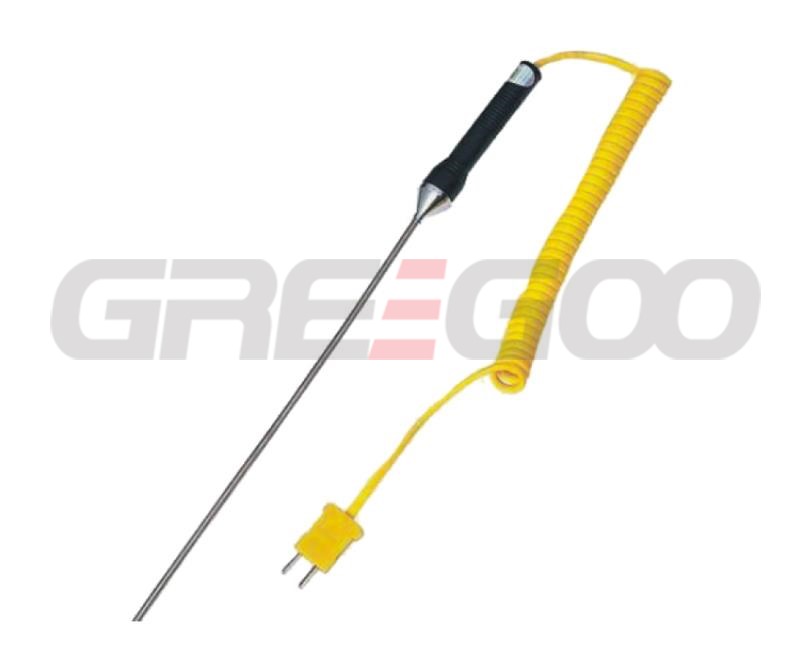

MT-908 Surface Type

Type: K

Specifications: Electric wooden handle -50-400°C

Wire: PVC wire, length 1800mm

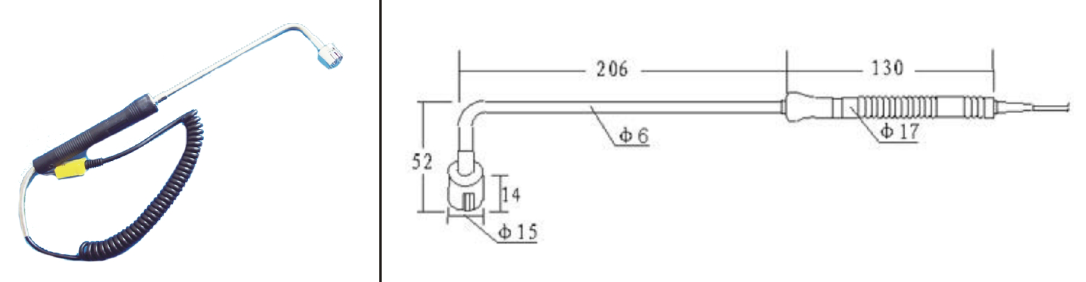

MT-909 Surface Type

Type: K

Specifications: Electric wooden handle -50-400°C

Wire: PVC wire, length 1800mm

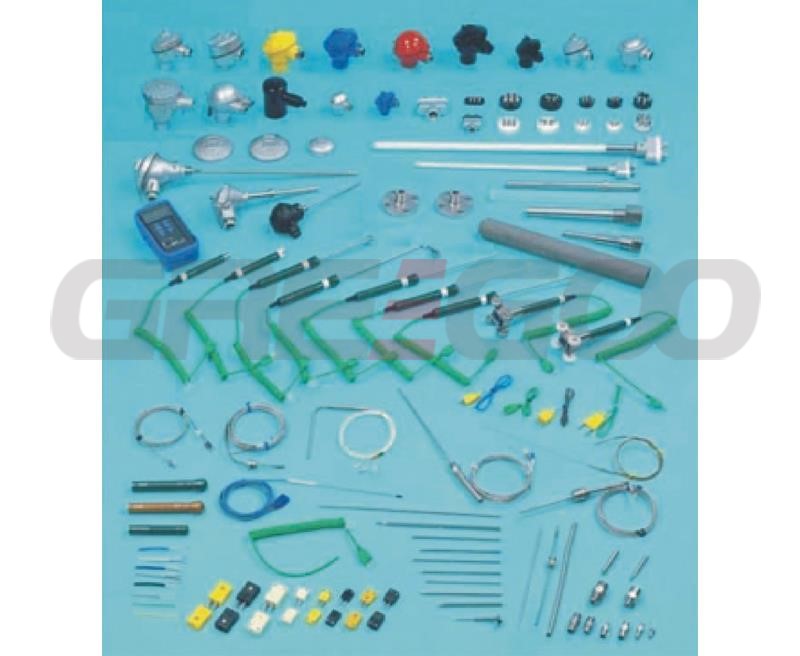

Temperature Measurement Accessories

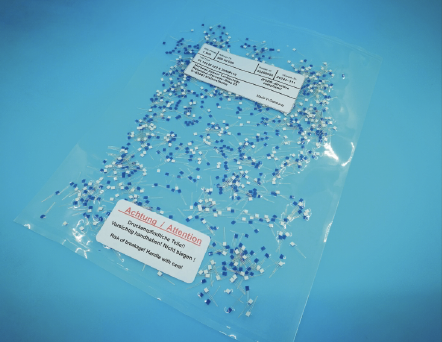

Platinum Electronic Components


Graduation

Number

Temperature

Measurement

Range

(℃)

Accuracy

Grade

Allowable

Error

PT100/PT1000

-200~300℃

1/3B

0.1%

-200~350℃

A

0.15%

-200~550℃

B

0.03%

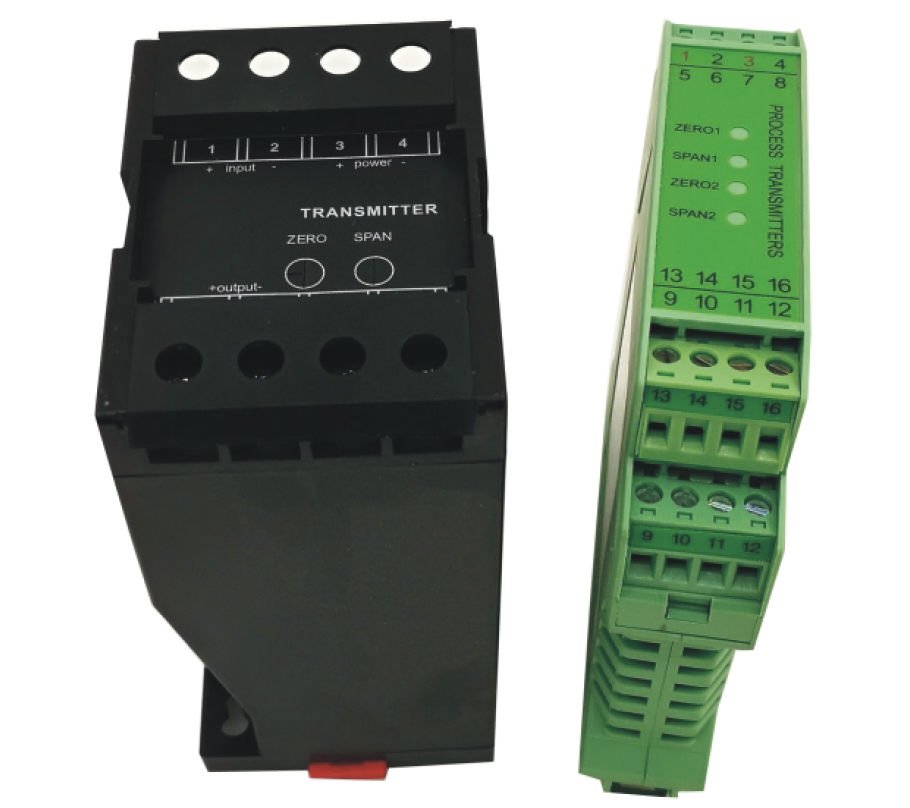

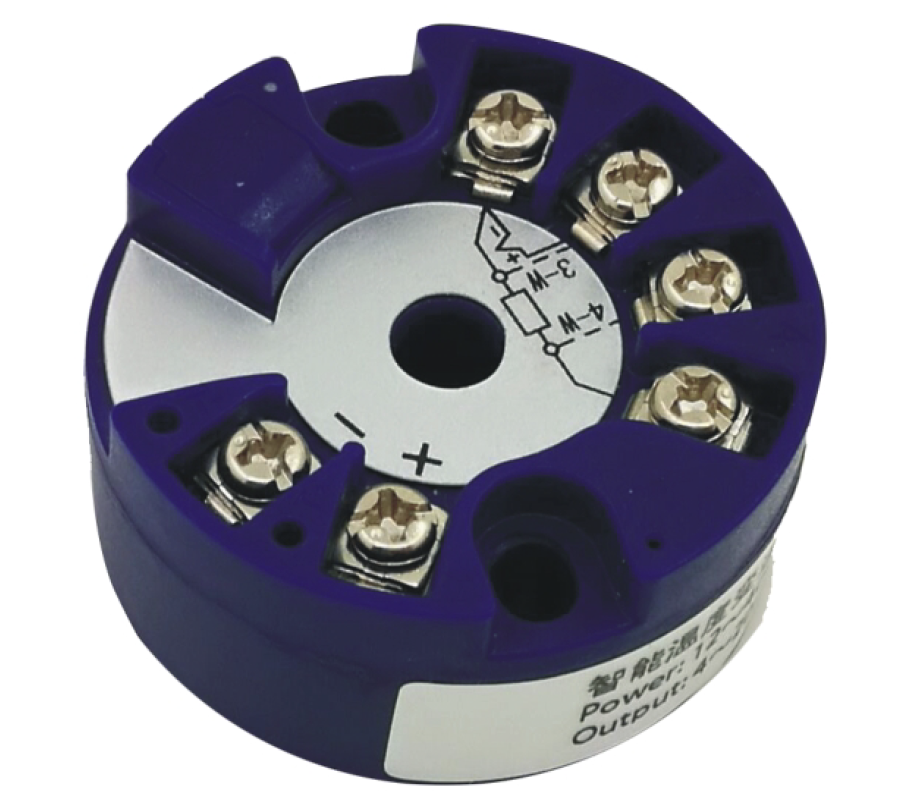

Temperature Transmitter (Intelligent Standard/Isolated Type)

Input Signal

Measurement Range ( ℃)

Output Signal

Power Supply

Accuracy

K、J、E、T、

N、Pt100、

S、R、B

 0-100/0-200/0-500

0-800/0-1200/0-1600

-200-500/-100-300

4-20mA

0-10V

0-5V

No

24V

220V

0.1%

0.2%

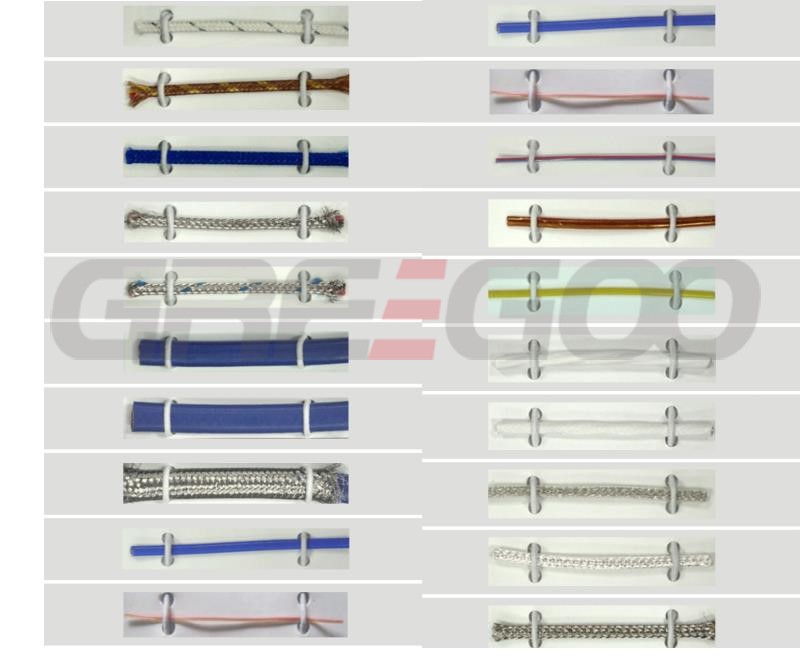

Thermocouple and RTD Compensation Wire


Code

Specification

Note

Temperature Range

KX-H

0.3~1.0×2

7/0.2×2


Fiberglass



0~250℃

KX-H

0.15×2

0.5×2

Fiberglass



0~450℃

KXX-H

4/0.3×2

4/0.6×2

Fiberglass



0~250℃

KXH-GAB

 0.3~1.0×2

7/0.2×2

Fiberglass

SUS 304 external isolation

0~250℃

KXH-GAB-BLUE

4/0.3×2

Fiberglass

SUS 304 external isolation

0~250℃


KCC-G

0.3×2

4/0.6×2

PVC

0~105℃

KCC-G

4/0.6×2

7/0.6×2

PVC

US 304 internal isolation

0~105℃

KCC-G

4/0.6×2

7/0.6×2

PVC

SUS 304 external isolation

0~105℃

KX-F-JIS

0.3~0.6×2

PTFE

0~200℃

X-F-ANSI

0.125×2

PTFE

0~200℃

TX-F-ANSI

0.3×2

PTFE

0~200℃



KX-KPT

7/0.2×2

KAPTON

0~400℃

JX-F-JIS

0.3×2

FEP PTFE

0~200℃

FEP-FEP

20AWG×3C

24AWG×3C

FEP PTFE

0~200℃

FEP-FEP

(I-AG)

20AWG×3C

24AWG×3C

FEP PTFE

 0~200℃

AFPE-SN

7/0.15×2

FEP PTFE (Tin-plated mesh internal isolation)

0~200℃

AFPF-AG

7/0.15×2

FEP PTFE (Tin-plated mesh internal isolation)

0~200℃

JXH-GAB

0.3~0.5×3 7/0.2×3

Fiberglass

SUS 304 external isolation

0~200℃

You may also interested in

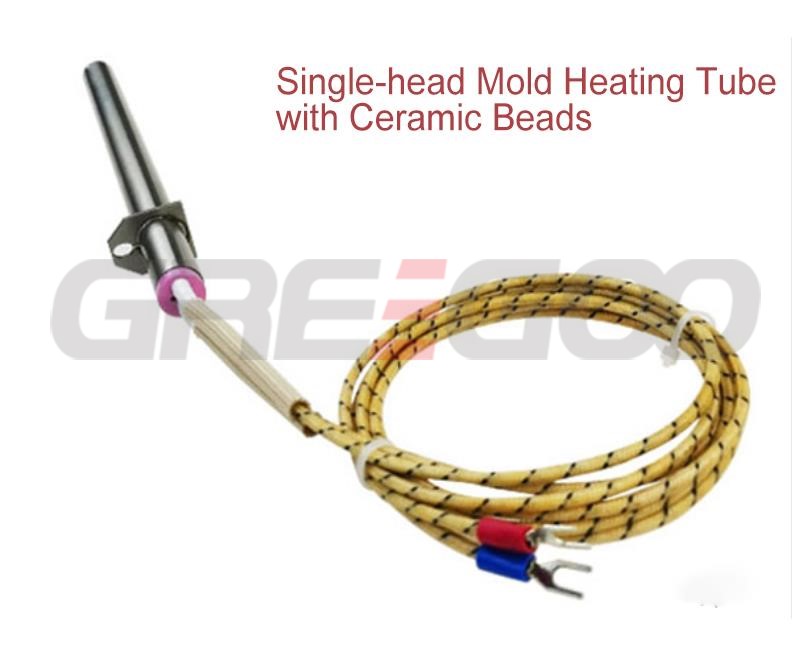

Single-head heating tube

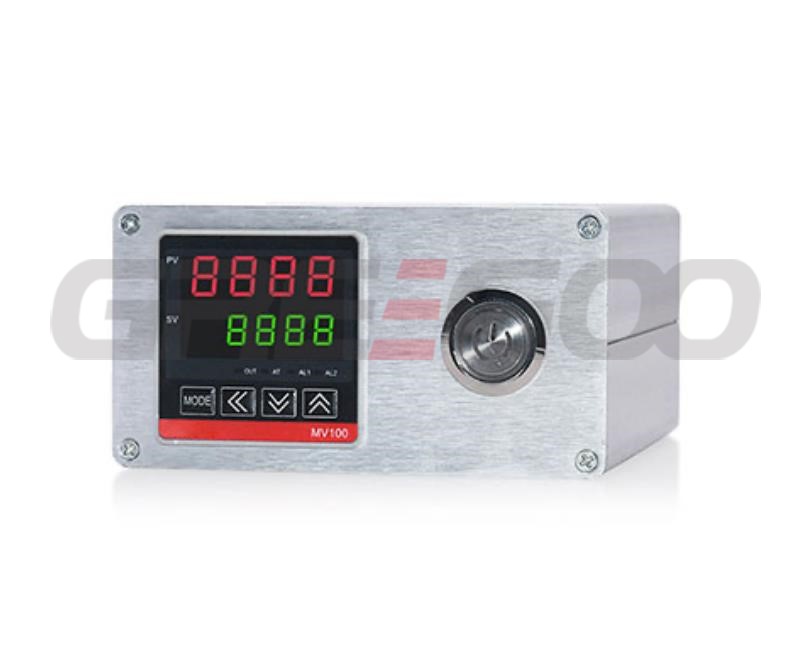

Compact Single-channel PID Temperature Control Box


Hot Runner Temperature Control Card

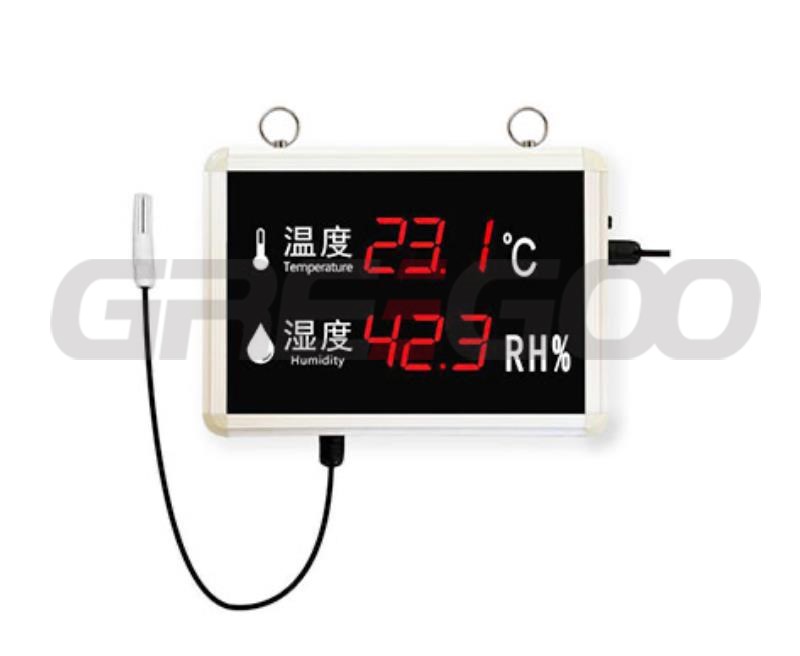

Temperature and Humidity Display Panel


DIN Rail Mounted RS485 Output Temperature and Humidity Transmitter

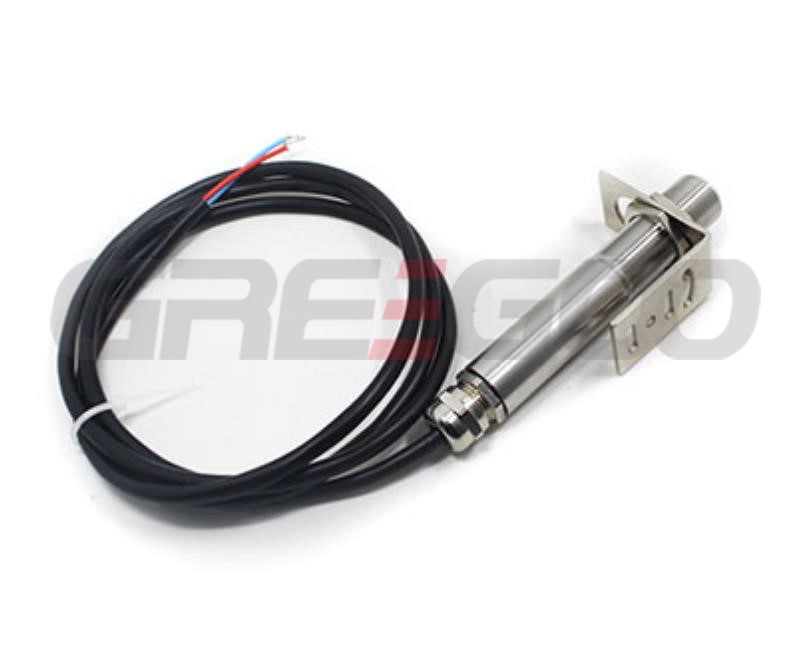

Infrared Temperature Sensor
