Solid state relays
Home Products Solid State Relays (AC Switching)Single Phase Solid State RelaysSolid state relays
Product Details
Solid state relays
| Model | Phase | Type | Load voltage | Load current | Control voltage | Control method |
| GSP1048ZD3 | Single phase | DC to AC | 40-480Vac | 10A | 4-32Vdc | Zero crossing type |
| GSP1548ZD3 | Single phase | DC to AC | 40-480Vac | 15A | 4-32Vdc | Zero crossing type |
| GSP2548ZD3 | Single phase | DC to AC | 40-480Vac | 25A | 4-32Vdc | Zero crossing type |
| GSP4048ZD3 | Single phase | DC to AC | 40-480Vac | 40A | 4-32Vdc | Zero crossing type |

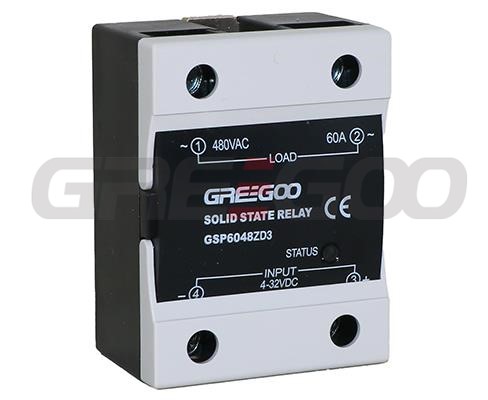

| GSP6048ZD3 | Single phase | DC to AC | 40-480Vac | 60A | 4-32Vdc | Zero crossing type |
| GSP8048ZD3 | Single phase | DC to AC | 40-480Vac | 80A | 4-32Vdc | Zero crossing type |
| GSP10048ZD3 | Single phase | DC to AC | 40-480Vac | 100A | 4-32Vdc | Zero crossing type |
| GSP1048ZA2 | Single phase | AC to AC | 40-480Vac | 10A | 90-250Vac | Zero crossing type |
| GSP1548ZA2 | Single phase | AC to AC | 40-480Vac | 15A | 90-250Vac | Zero crossing type |
| GSP2548ZA2 | Single phase | AC to AC | 40-480Vac | 25A | 90-250Vac | Zero crossing type |
| GSP4048ZA2 | Single phase | AC to AC | 40-480Vac | 40A | 90-250Vac | Zero crossing type |

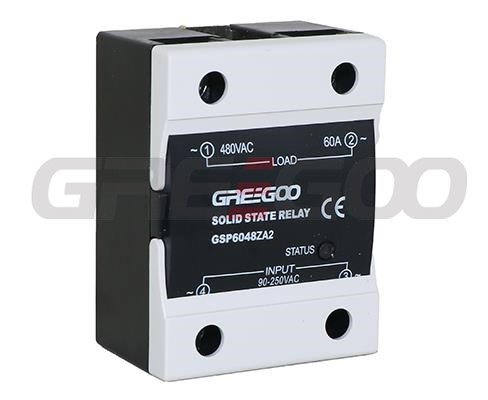

| GSP6048ZA2 | Single phase | AC to AC | 40-480Vac | 60A | 90-250Vac | Zero crossing type |
| GSP8048ZA2 | Single phase | AC to AC | 40-480Vac | 80A | 90-250Vac | Zero crossing type |
| GSP10048ZA2 | Single phase | AC to AC | 40-480Vac | 100A | 90-250Vac | Zero crossing type |

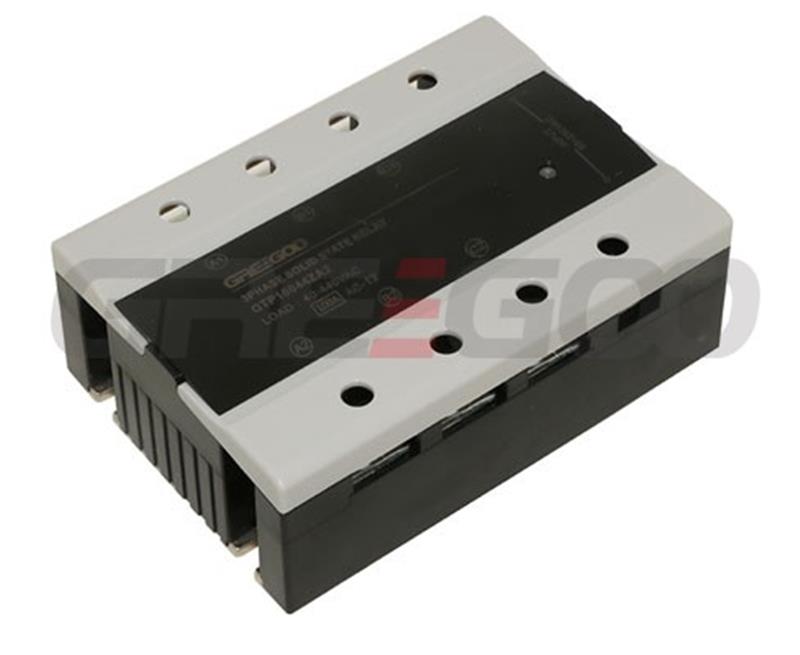

| GTP1048ZD3 | Three phase | DC to AC | 40-480Vac | 10A | 4-32Vdc | Zero crossing type |
| GTP1548ZD3 | Three phase | DC to AC | 40-480Vac | 15A | 4-32Vdc | Zero crossing type |
| GTP2548ZD3 | Three phase | DC to AC | 40-480Vac | 25A | 4-32Vdc | Zero crossing type |
| GTP4048ZD3 | Three phase | DC to AC | 40-480Vac | 40A | 4-32Vdc | Zero crossing type |
| GTP6048ZD3 | Three phase | DC to AC | 40-480Vac | 60A | 4-32Vdc | Zero crossing type |
| GTP8048ZD3 | Three phase | DC to AC | 40-480Vac | 80A | 4-32Vdc | Zero crossing type |
| GTP10048ZD3 | Three phase | DC to AC | 40-480Vac | 100A | 4-32Vdc | Zero crossing type |
| GTP1048ZA2 | Three phase | AC to AC | 40-480Vac | 10A | 90-250Vac | Zero crossing type |
| GTP1548ZA2 | Three phase | AC to AC | 40-480Vac | 15A | 90-250Vac | Zero crossing type |

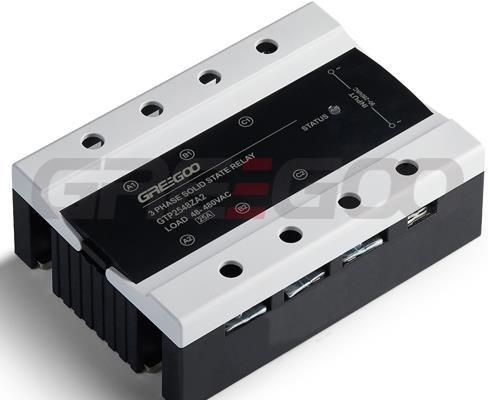

| GTP2548ZA2 | Three phase | AC to AC | 40-480Vac | 25A | 90-250Vac | Zero crossing type |
| GTP4048ZA2 | Three phase | AC to AC | 40-480Vac | 40A | 90-250Vac | Zero crossing type |
| GTP6048ZA2 | Three phase | AC to AC | 40-480Vac | 60A | 90-250Vac | Zero crossing type |
| GTP8048ZA2 | Three phase | AC to AC | 40-480Vac | 80A | 90-250Vac | Zero crossing type |
| GTP10048ZA2 | Three phase | AC to AC | 40-480Vac | 100A | 90-250Vac | Zero crossing type |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products

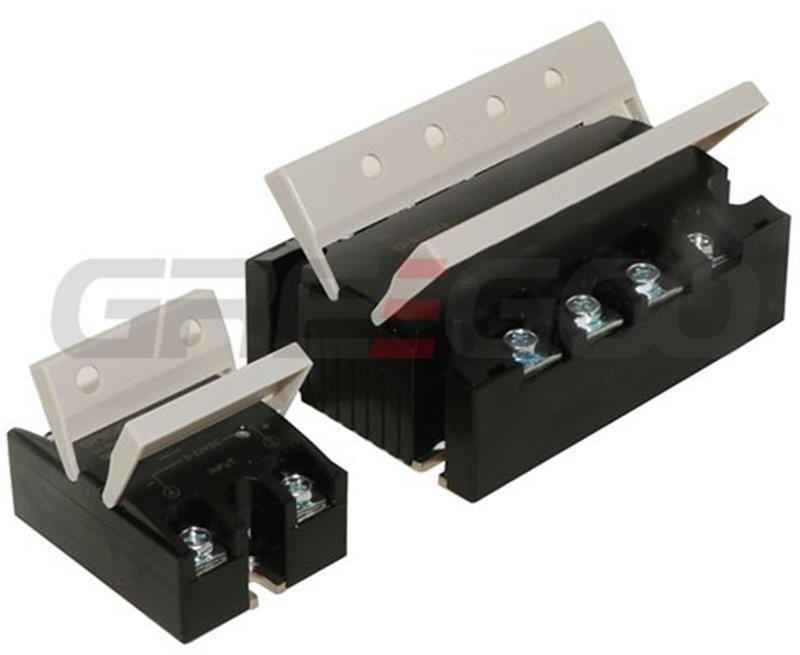

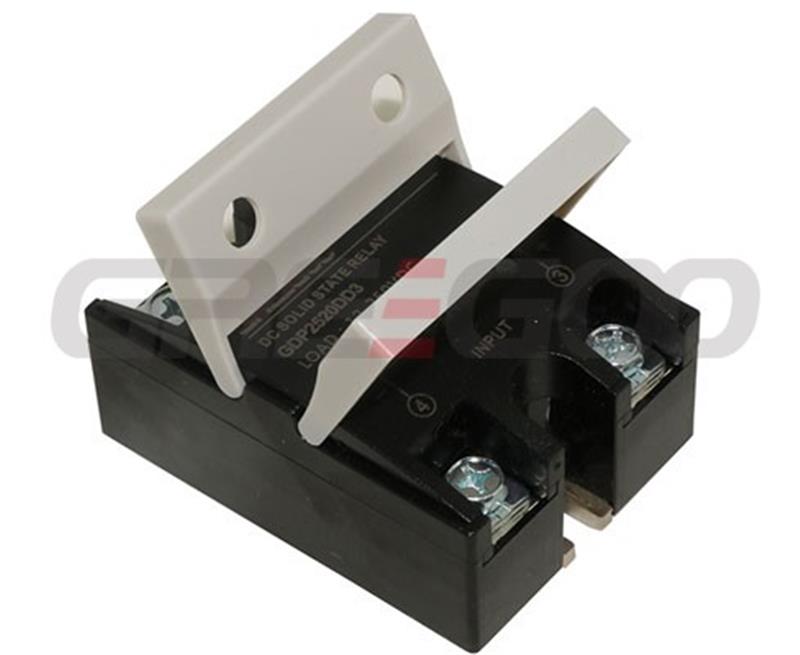

Single phase power solid state relay with removable protective flap
