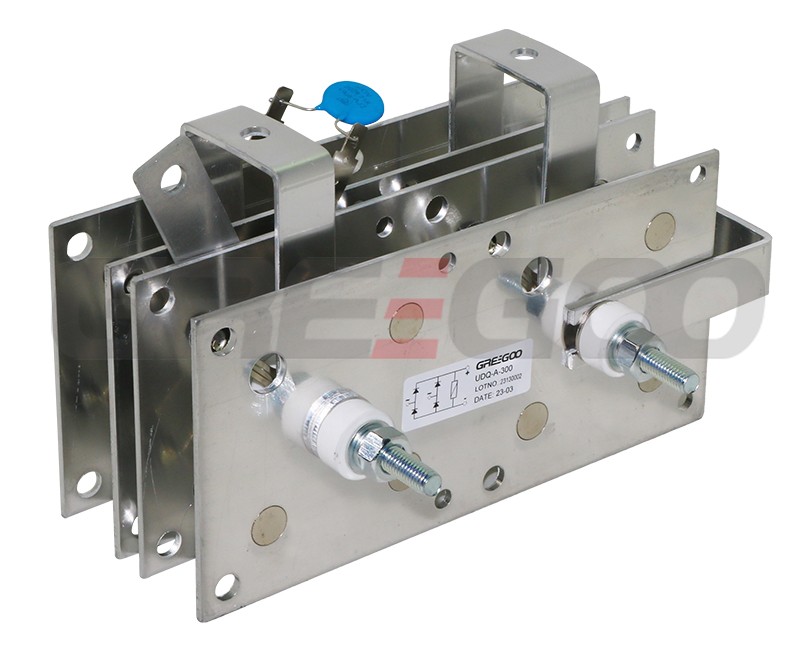

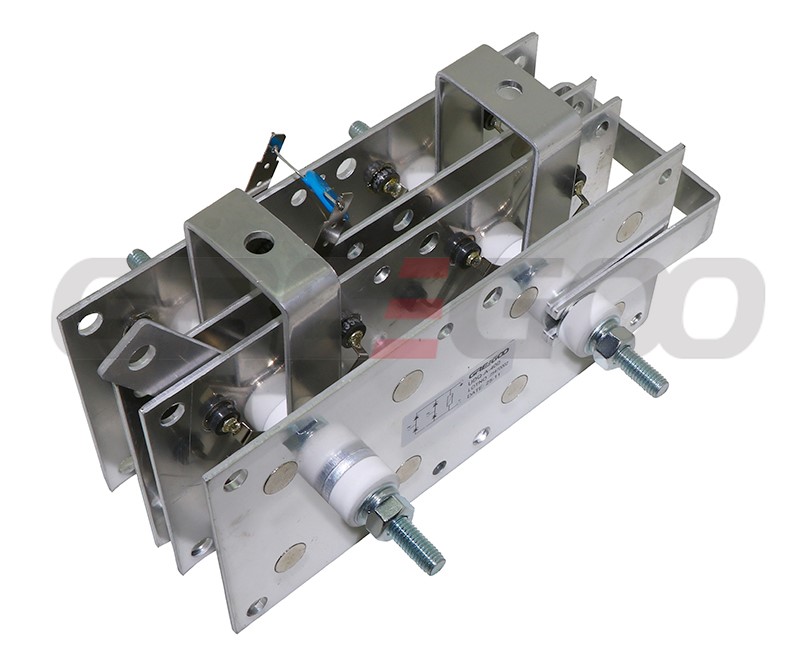

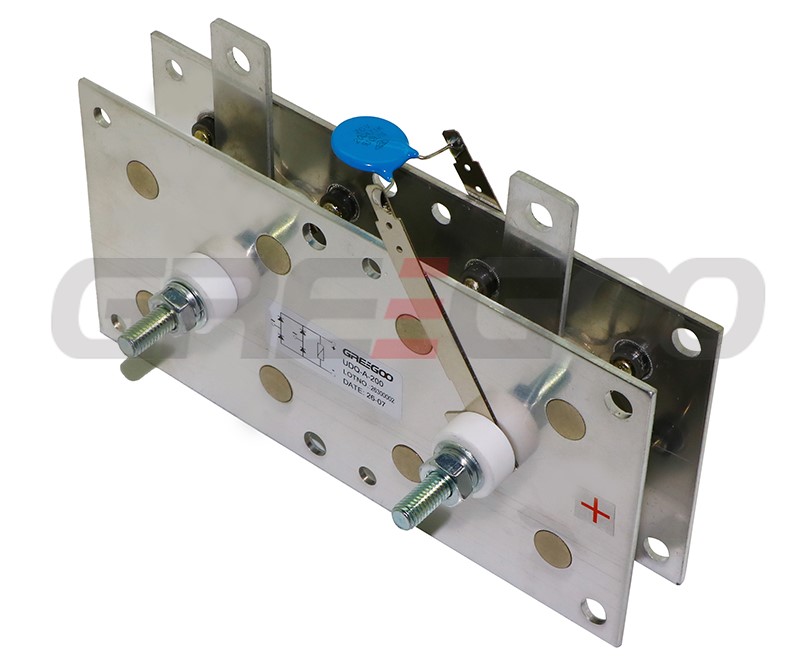

Single phase press fit diode
Home Products Diode Bridge ModulePress fit diode assemblySingle phase press fit diode
Single phase press fit diode
Single phase press fit diodes
Features
Rectifier diodes with heatsink
Low cost, compact size
With thermostat & MOV components
Low forward voltage drop
High current capability & conductive package
Applications
Air protecting welding machine
Rectifier circuit design
CO2 gas filled protection weld machine
DC power supplies
Rectificate circuit
| Type | I0A | VRRM | IRRM | VFM | @IFM | oC | Outlines |
| Tc=100oC | 6/ms | V | mA | V | A | Fig | |

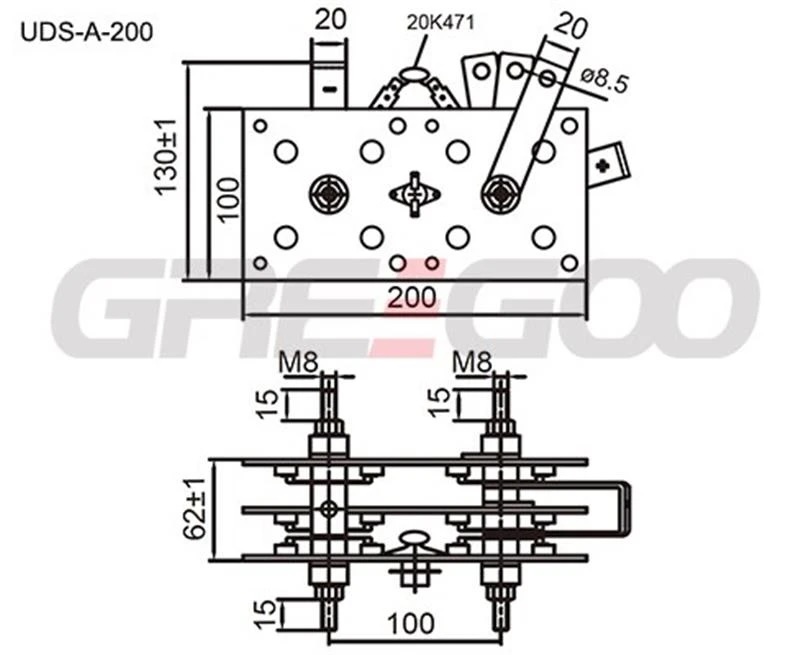

| UDQ-■A-200 | 200 | ≥400 | ≤3 | 1.5 | 200 | 50-55 | 39 |

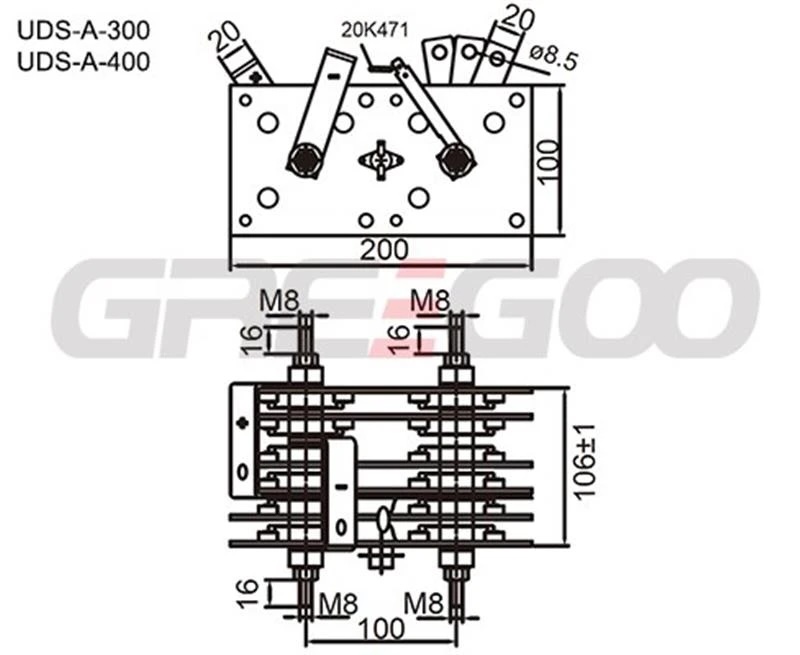

| UDQ-■A-300 | 300 | ≥400 | ≤5 | 1.5 | 300 | 50-55 | 39 |
| UDQ-■A-400 | 400 | ≥400 | ≤6 | 1.5 | 400 | 50-55 | 39 |

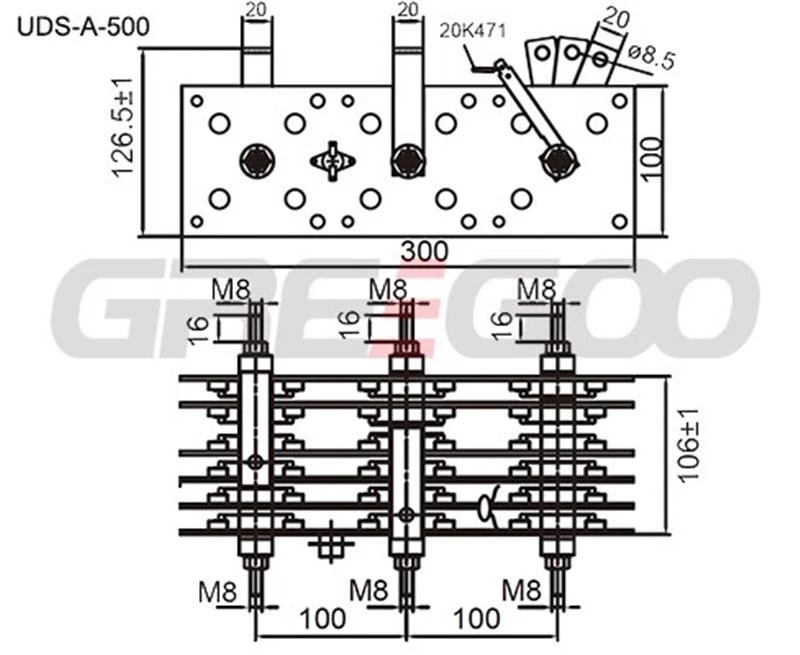

| UDQ-■A-500 | 500 | ≥400 | ≤8 | 1.5 | 500 | 50-55 | 39 |
| UDQ-■C-200 | 200 | ≥400 | ≤3 | 1.5 | 200 | 50-55 | 40 |
| UDQ-■C-300 | 300 | ≥400 | ≤5 | 1.5 | 300 | 50-55 | 40 |
| UDQ-■C-400 | 400 | ≥400 | ≤6 | 1.5 | 400 | 50-55 | 40 |
