28A and 30A, 1 phase bridge rectifier module

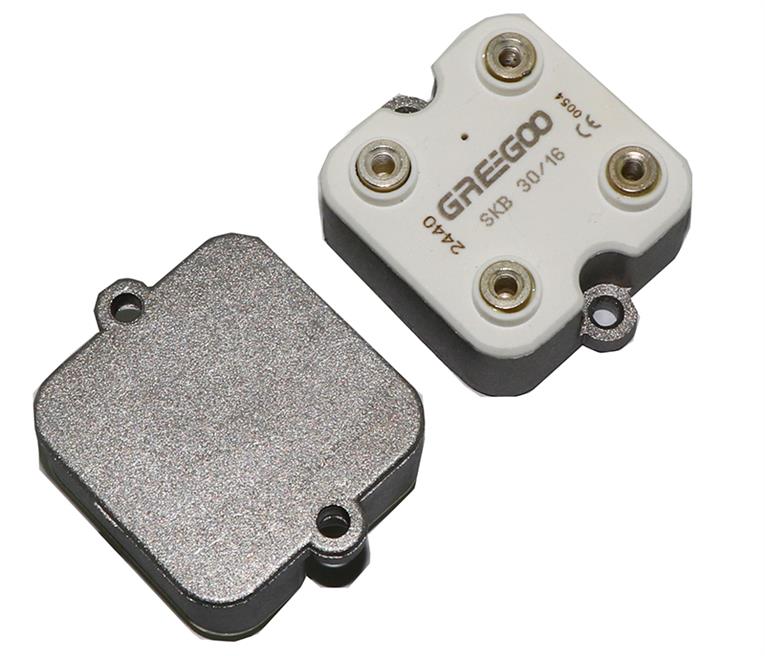

28A and 30A, 1 phase bridge rectifier module, double side view

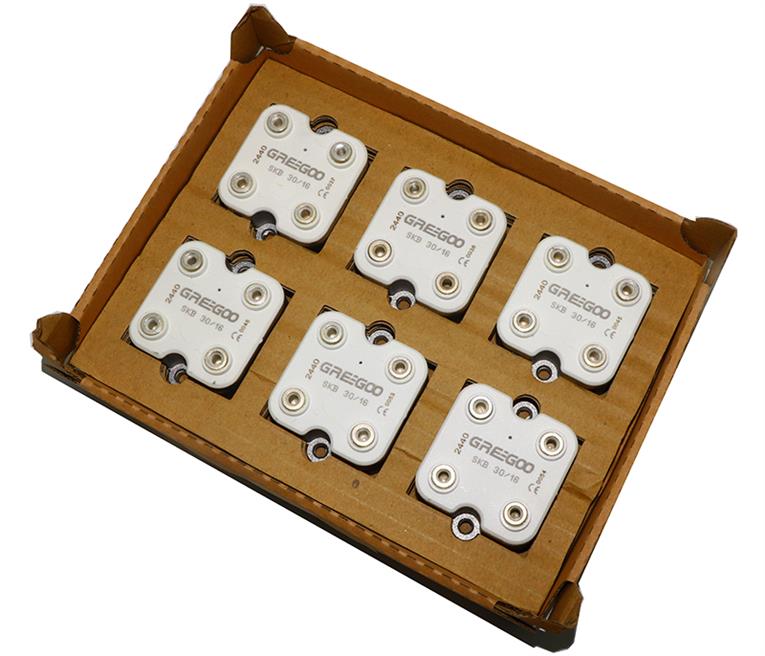

28A and 30A, 1 phase bridge rectifier module, 6pcs in a box

Product Details

Single phase bridge rectifier modules SKB28 SKB30

Features
•Sturdy isolated metal baseplate
•Fast-on terminals with solder tips
•Suitable for wave soldering
•High surge current rating
•Blocking voltage of 1600 V

Typical Applications
•DC power supply, e.g. for transistorized AC motor controllers
•Battery chargers
•Non-controlled DC motor field
supply
•Recommended snubber network:
RC: 50 Ω, 0.1 µF (P_R = 1 W)

SKB28

SKB28/08 SKB28/12 SKB28/16 SKB28/18

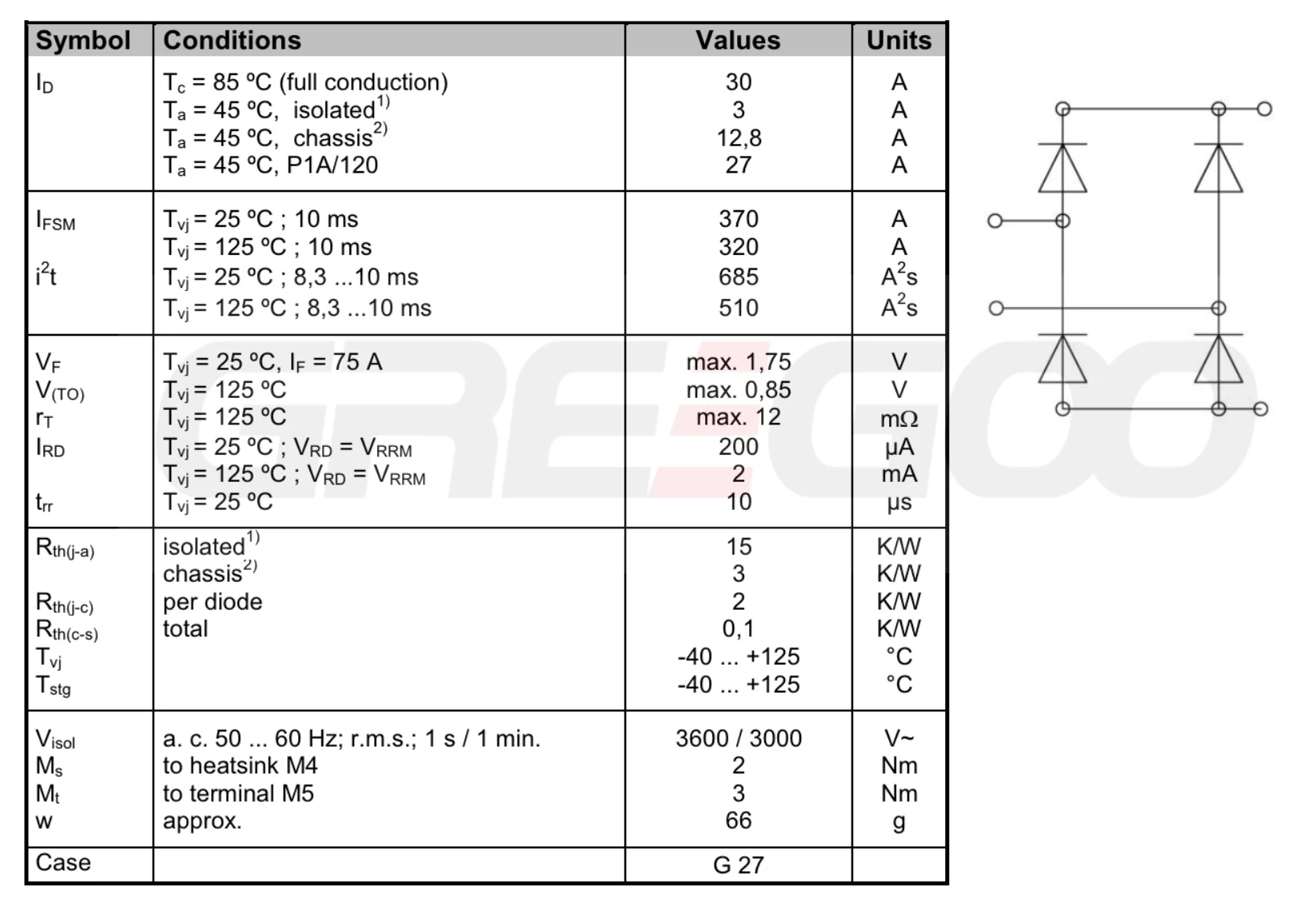

SKB28 Power Bridge Rectifiers

SKB30

SKB30/08 SKB30/12 SKB30/16 SKB30/18

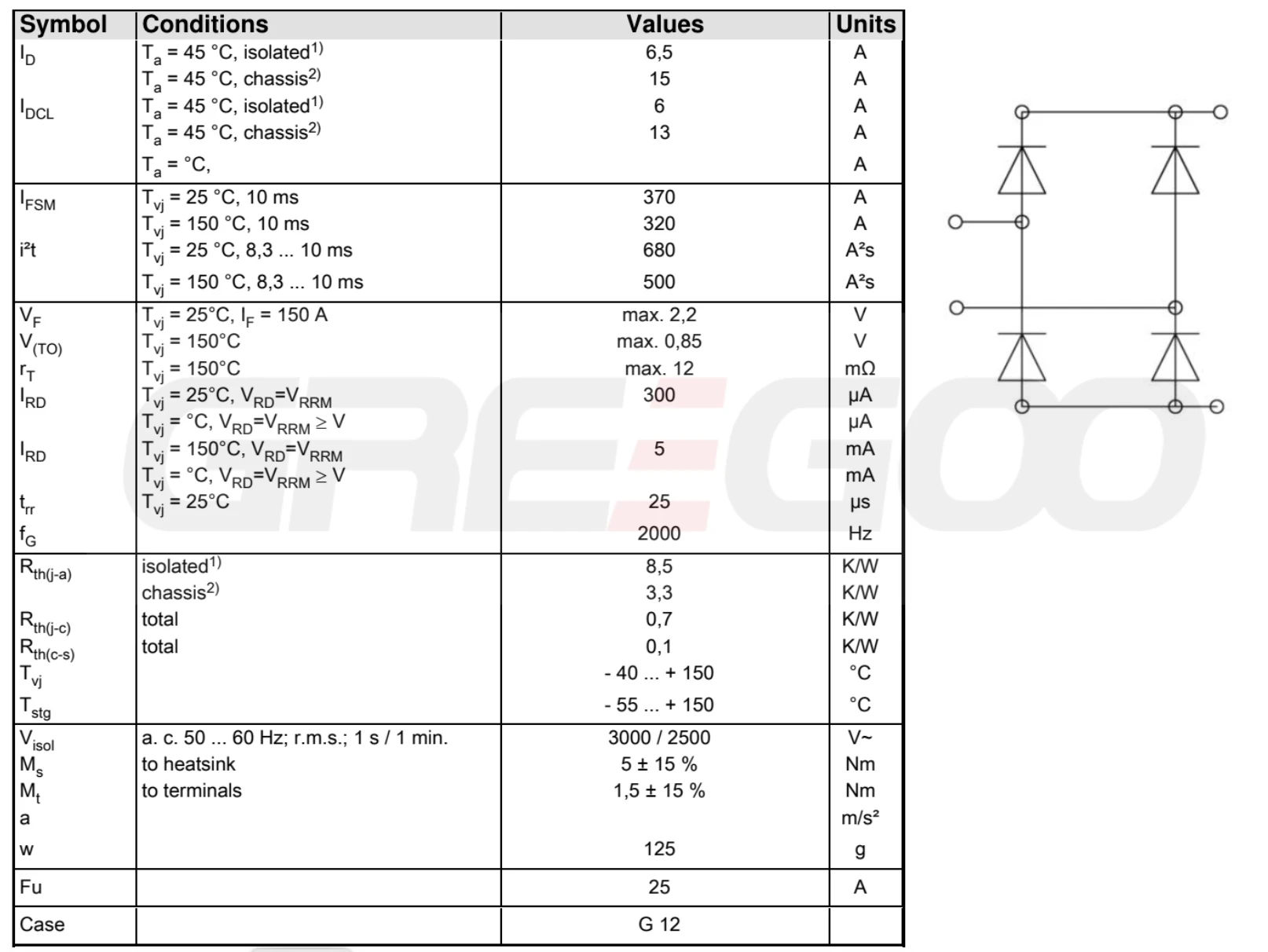

SKB30 Power Bridge Rectifiers
