MCO801 Single Thyristor Module
Features
- Pressure contact technology for high reliability
- Industial standard package
- Electrically insulated baseplate
- Advanced medium power technology
Typical Applications
- Rectifier for Drives Applications
- Rectifiers for UPS
- Battery chargers
- Soft starter
- Crowbar applications
- Power controllers
- Static switches
MCO801 Single Thyristor Module
| Model | MCO801-14io1 | MCO801-18io1 |
| Maximum Allowable Average Forward Current ITAV (Case Temperature) | 830 A | 830 A |
| Repetitive Pulsed Reverse Voltage VRRM | 1400 V | 1800 V |
| Surge Current ITSM | 30000 A | 30000 A |
| Maximum RMS On-State Current IT(RMS) | 2335 A | 2335 A |
| Safety Factor I2t | 4500 kA²·s | 4500 kA²·s |
| Threshold Voltage VT(TO) | 0.80 V | 0.80 V |
| Slope Resistance rT | 0.24 mΩ | 0.24 mΩ |
| Turn-off Time tq | 225 μs | 225 μs |
| Gate Trigger Voltage VGT | 2.5 V | 2.5 V |
| Gate Trigger Current IGT | 300 mA | 300 mA |
| Thermal Resistance, Junction to Case Rth(JC) | 0.042 K/W | 0.042 K/W |
| Thermal Resistance, Case to Heatsink Rth(CH) | 0.01 K/W | 0.01 K/W |
| Type (Circuit Diagram) | Single Thyristor | Single Thyristor |
| Weight W | 2800 g | 2800 g |
| Package Dimensions, mm L×B×H | W73 176x70x90 mm | W73 176x70x90 mm |
| Mounting Torque MD | 5.1-6.9 Nm | 5.1-6.9 Nm |

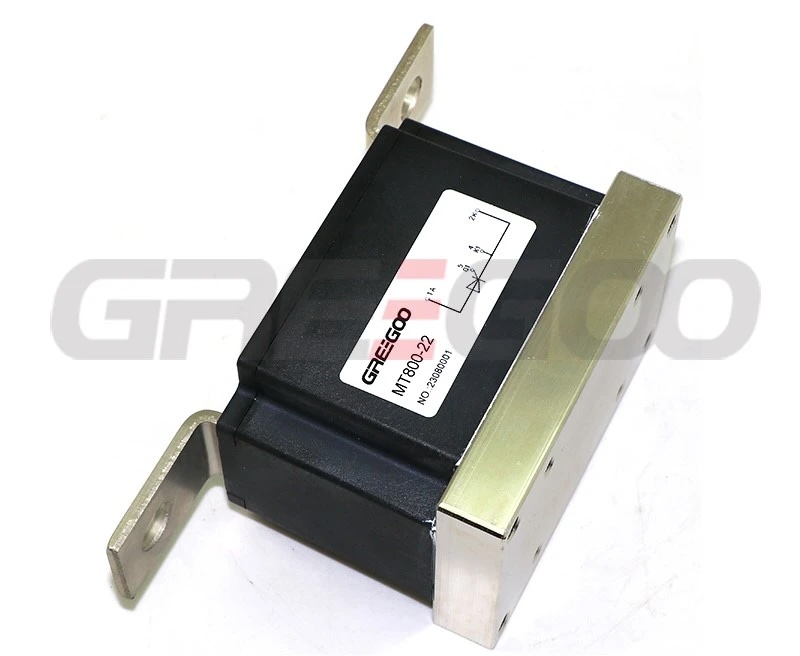

TZ810N22KOF Phase Control Thyristor Module
| Key Parameters / Model | TZ810N22KOF |
| VDRM /VRRM | 2200 V |
| ITAVM | 819 A(Tc=85°C) |
| ITSM | 39000 A |
| vT0 | 0.82 V |
| RT | 0.17 mQ |
| RthJC | 0.0405 K/W |
| Baseplate | 70 mm |
| Weight | 1950 g |
MT1-630 Single Thyristor
| Product | VDRM/VRRM [V] |
IFAV/ITAV (Tс,°C) [A] |
VFM/VTM (Tc=25°С) [V] |
IFM/ITM (Tc=25°С) [A] |
VT(TO)/Tjmax [V] |
rT/Tjmax [mΩ] |
Tjmax [°С] |
Rthjc [°С/W] |
Baseplate width/length [mm] |
Type |
| MT1-630-20-E | 2000 | 630 (92) | 1.55 | 2500 | 0.876 | 0.264 | 125 | 0.04 | 70/104 | Single Thyristor |
| MT1-630-22-E | 2200 | 630 (92) | 1.55 | 2500 | 0.876 | 0.264 | 125 | 0.04 | 70/104 | Single Thyristor |
| MT1-630-24-E | 2400 | 630 (92) | 1.55 | 2500 | 0.876 | 0.264 | 125 | 0.04 | 70/104 | Single Thyristor |
| MT1-630-26-E | 2600 | 630 (92) | 1.55 | 2500 | 0.876 | 0.264 | 125 | 0.04 | 70/104 | Single Thyristor |
