Half bridge Thyristor Module

Home Products Thyristor Diode ModuleIXYS Diode Thyristor ModuleHalf bridge Thyristor Module

MCMA series 25A to 260A 1200V 1600V and 1800V

Specification

Half bridge Thyristor Module

Model	IT(AV) (A)	VRRM (V)	ITSM (A)	I2t (kA2·s)	V(TO) (V)	rT (mΩ)	Tvj max (ºC)	Rth(j-c) (ºC/W)	Weight (g)	Package	Size (mm)
MCMA25P1200TA	25	1200	400	0.8	0.87	13	140	1.2	81	TO-240AA-1B	92x20x30
MCMA25P1600TA	25	1600	400	0.8	0.87	13	140	1.2	81	TO-240AA-1B	92x20x30
MCMA35P1200TA	35	1200	520	1.35	0.87	9.8	140	0.9	81	TO-240AA-1B	92x20x30
MCMA35P1600TA	35	1600	520	1.35	0.87	9.8	140	0.9	81	TO-240AA-1B	92x20x30
MCMA50P1200TA	50	1200	800	3.2	0.89	5.3	140	0.7	81	TO-240AA-1B	92x20x30
MCMA50P1600TA	50	1600	800	3.2	0.89	5.3	140	0.7	81	TO-240AA-1B	92x20x30
MCMA65P1200TA	65	1200	1150	6.62	0.85	4.8	140	0.5	81	TO-240AA-1B	92x20x30
MCMA65P1600TA	65	1600	1150	6.62	0.85	4.8	140	0.5	81	TO-240AA-1B	92x20x30
MCMA65P1800TA	65	1800	1150	6.62	0.85	4.8	140	0.5	81	TO-240AA-1B	92x20x30
MCMA85P1200TA	85	1200	1500	11.3	0.85	3.9	140	0.38	81	TO-240AA-1B	92x20x30
MCMA85P1600TA	85	1600	1500	11.3	0.85	3.9	140	0.38	81	TO-240AA-1B	92x20x30
MCMA85P1800TA	85	1800	1500	11.3	0.85	3.9	140	0.38	81	TO-240AA-1B	92x20x30
MCMA110P1200TA	110	1200	1900	18.1	0.85	3.3	140	0.3	81	TO-240AA-1B	92x20x30

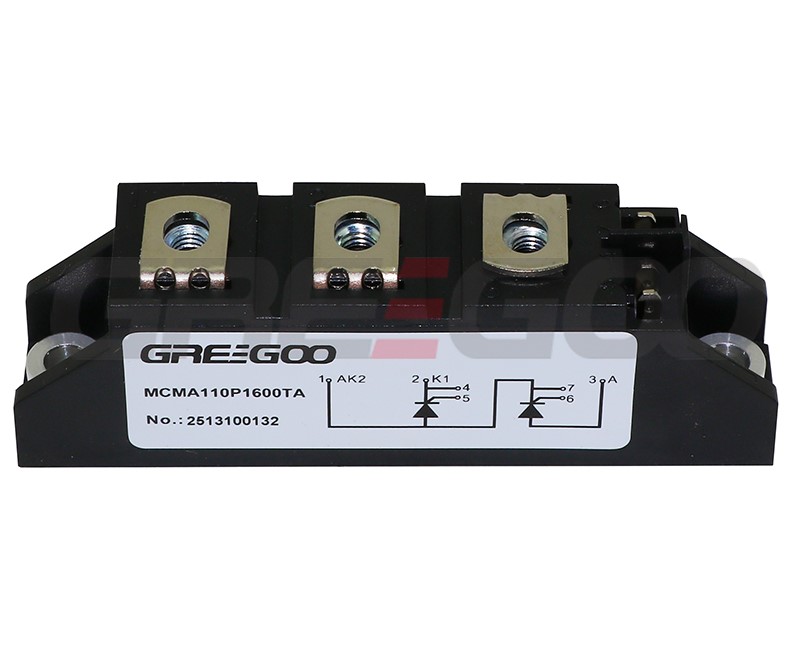

MCMA110P1600TA	110	1600	1900	18.1	0.85	3.3	140	0.3	81	TO-240AA-1B	92x20x30
MCMA110P1800TA	110	1800	1900	18.1	0.85	3.3	140	0.3	81	TO-240AA-1B	92x20x30
MCMA140P1200TA	140	1200	2400	28.8	0.85	2.8	140	0.22	81	TO-240AA-1B	92x20x30
MCMA140P1400TA	140	1400	2400	28.8	0.85	2.8	140	0.22	81	TO-240AA-1B	92x20x30
MCMA140P1600TA	140	1600	2400	28.8	0.85	2.8	140	0.22	81	TO-240AA-1B	92x20x30
MCMA140P1800TA	140	1800	2400	28.8	0.85	2.8	140	0.22	81	TO-240AA-1B	92x20x30

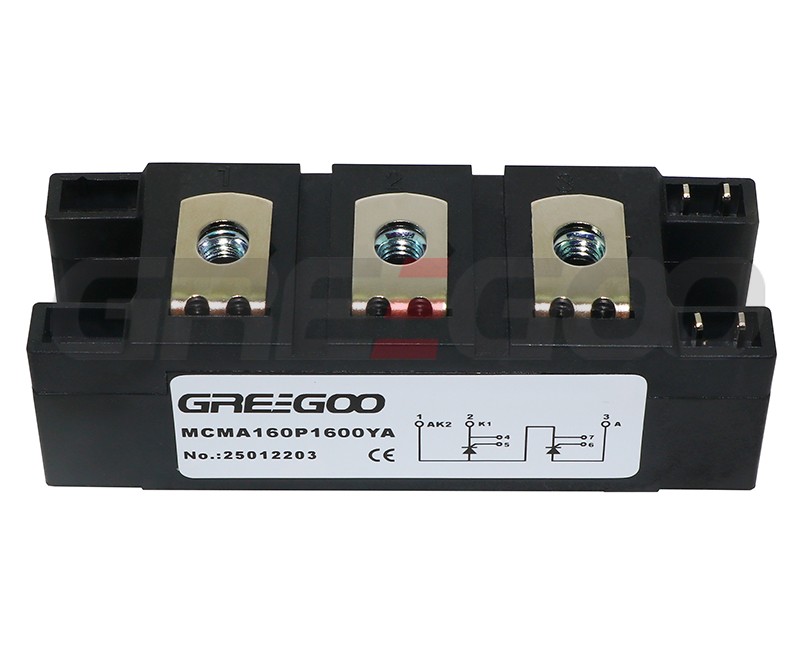

MCMA160P1600YA	160	1600	4750	112.8	0.82	1.63	140	0.21	131	Y4-M6	94x34x30
MCMA160P1800YA-MI	160	1800	4750	112.8	0.82	1.63	140	0.21	131	Y4-M6	94x34x30
MCMA200P1600YA	200	1600	6000	180	0.83	1.43	140	0.17	131	Y4-M6	94x34x30
MCMA200P1800YA-MI	200	1800	6000	180	0.83	1.43	140	0.17	131	Y4-M6	94x34x30
MCMA260P1600YA	260	1600	8300	344.5	0.81	1.23	140	0.13	150	Y4-M6	94x34x30
MCMA260P1800YA	260	1800	8300	344.5	0.81	1.23	140	0.13	150	Y4-M6	94x34x30
MCMA265P1600KA	268	1600	8500	361.3	0.8	0.75	140	0.16	680	Y1-CU	92x50x52
MCMA265P1800KA	268	1800	8500	361.3	0.8	0.75	140	0.16	680	Y1-CU	92x50x52
