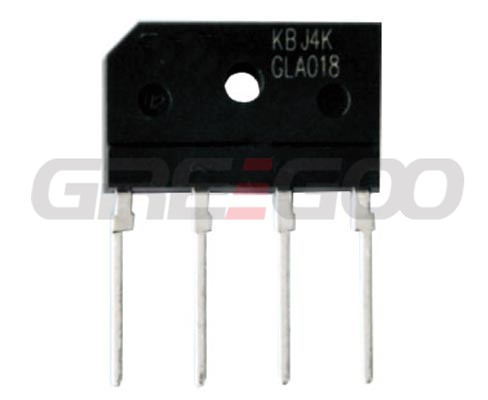

KBJ Series Bridge Rectifier
Home Products Diode Bridge RectifierMiniature Bridge Rectifier - Leaded typeKBJ Series Bridge Rectifier
KBJ Series Bridge Rectifier
|
TYPE |
Repetitive Peak Reverse Voltage |
Maximum |
Maximum Forward Peak Surge Current |
Maximum |
Maximum Reverse Current |
Junction Temperature |
Insulating Voltage |
|||
|
VRRM |
IF(AV)@Tc |
IFSM |
VF @IF |
RRM @TA |
TJM |
VISO |
||||
|
(V) |
(A) |
(℃) |
(A) |
(V) |
(A) |
25℃(μA) |
125℃ (uA) |
(℃) |
V) |
|
|
KBJ406 |
600 |
4 |
100 |
140 |
1.0 |
2 |
5 |
500 |
150 |
2500 |
|
KBJ408 |
800 |
4 |
100 |
140 |
1.0 |
2 |
5 |
500 |
150 |
2500 |
|
KBJ410 |
1000 |
4 |
100 |
140 |
1.0 |
2 |
5 |
500 |
150 |
2500 |
|
KBJ606 |
600 |
6 |
100 |
150 |
1.05 |
3 |
5 |
500 |
150 |
2500 |
|
KBJ608 |
800 |
6 |
100 |
150 |
1.05 |
3 |
5 |
500 |
150 |
2500 |
|
KBJ610 |
1000 |
6 |
100 |
150 |
1.05 |
3 |
5 |
500 |
150 |
2500 |
|
KBJ806 |
600 |
8 |
100 |
170 |
1.05 |
4 |
5 |
500 |
150 |
2500 |
|
KBJ808 |
800 |
8 |
100 |
170 |
1.05 |
4 |
5 |
500 |
150 |
2500 |
|
KBJ810 |
1000 |
8 |
100 |
170 |
1.05 |
4 |
5 |
500 |
150 |
2500 |
|
KBJ1006 |
600 |
10 |
100 |
200 |
1.05 |
5 |
5 |
500 |
150 |
2500 |
|
KBJ1008 |
800 |
10 |
100 |
200 |
1.05 |
5 |
5 |
500 |
150 |
2500 |
|
KBJ1010 |
1000 |
10 |
100 |
200 |
1.05 |
5 |
5 |
500 |
150 |
2500 |
