Product Details

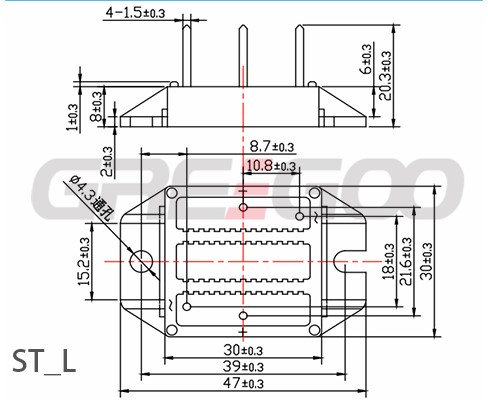

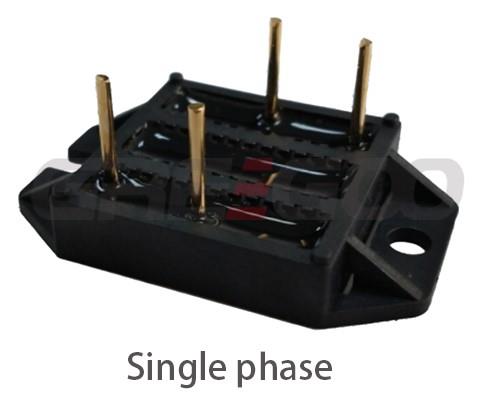

Single phase and 3phase bridge rectifier

TYPE	Repetitive Peak Reverse Voltage	Maximum Average Rectified Current		Maximum Forward Peak Surge Current	Maximum Forward Voltage		Maximum Reverse Current		Junction Temperature	Insulating Voltage
	VRRM	IF(AV)@TC		IFSM	VF @IF		IRRM @TA		TJM	VIso
	(V)	(A)	(℃)	(A)	(V)	(A)	25℃(μA	125℃(μA	(℃)	(V)
ST2506 L ST2508 L	600	25 25	85 85	300 300	1.2 1.2	12.5	5	500	150	2500
ST2506 L ST2508 L	800	25 25	85 85	300 300	1.2 1.2	12.5	5	500	150	2500
ST2510 L	1000	25	85	300	1.2	12.5	5	500	150	2500
ST2512 L	1200	25	85	300	1.2	12.5	5	500	150	2500
ST2514 L	1400	25	85	300	1.2	12.5	5	500	150	2500
ST2516 L	1600	25	85	300	1.2	12.5	5	500	150	2500 2500
ST2518 L	1800	25	85	300	1.2	12.5	5	500	150	2500 2500
ST3506 L	600	35	85	450	1.2	17.5	5	500	150	2500
ST3508 L	800	35	85	450	1.2	17.5	5	500	150	2500
ST3510 L	1000	35	85	450	1.2	17.5	5	500	150	2500
ST3512 L	1200	35	85	450	1.2	17.5	5	500	150	2500
ST3514 L	1400	35	85	450	1.2	17.5	5	500	150	2500
ST3516 L	1600	35	85	450	1.2	17.5	5	500	150	2500
ST3518 L	1800	35	85	450	1.2	17.5	5	500	150	2500
ST5006 L	600	50	85	500	1.2	25	5	500	150	2500
ST5008 L	800	50	85	500	1.2	25	5	500	150	2500
ST5010 L	1000	50	85	500	1.2	25	5	500	150	2500
ST5012 L	1200	50	85	500	1.2	25	5	500	150	2500
ST5014 L	1400	50	85	500	1.2	25	5	500	150	2500
ST5016 L	1600	50	85	500	1.2	25	5	500	150	2500
ST5018 L	1800	50	85	500	1.2	25	5	500	150	2500
ST5506 L	600	55	85	550	1.2	27.5	5	500	150	2500
ST5508 L	800	55	85	550	1.2	27.5	5	500	150	2500
ST5510 L	1000	55	85	550	1.2	27.5	5	500	150	2500
ST5512 L	1200	55	85	550	1.2	27.5	5	500	150	2500
ST55141	1400	55	85	550	1.2	27.5	5	500	150	2500
ST5516 L	1600	55	85	550	1.2	27.5	5	500	150	2500
ST5518 L	1800	55	85	550	1.2	27.5	5	500	150	2500
ST6006 L	600	60	85	600	1.2	30	5	500	150	2500
ST6008 L	800	60	85	600	1.2	30	5	500	150	2500
ST6010 L	1000	60	85	600	1.2	30	5	500	150	2500
ST6012 L	1200	60	85	600	1.2	30	5	500	150	2500
ST6014 L	1400	60	85	600	1.2	30	5	500	150	2500
ST6016 L	1600	60	85	600	1.2	30	5	500	150	2500
St6018 L	1800	60	85	600	1.2	30	5	500	150	2500

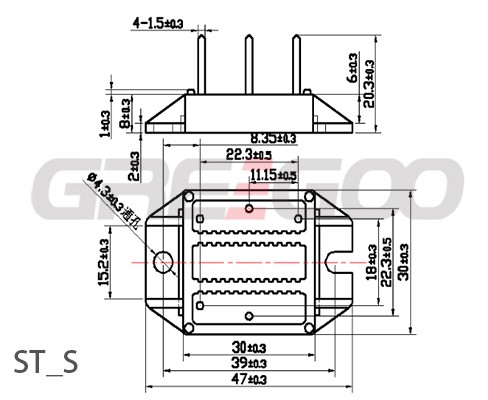

25A to 50A 3 phase bridge rectifier

TYPE	Repetitive Peak Reverse Voltage	Maximum Average Rectified Current		Maximum Forward Peak Surge Current	Maximum Forward Voltage		Maximum Reyerse Current		Junction Temperature	Insulating Voltage
	VRRM	IF(AV)@Tc		IFSM	VF @IF		IRRM @TA		TJM	ViS0
	(V)	(A)	(℃)	(A)	(V)	(A)	25℃(μA	125°℃(μA)	(℃)	(V)
ST2506 S	600	25	85	300	1.2	12.5	5	500	150	2500
ST2508 S	800	25	85	300	1.2	12.5	5	500	150	2500
ST2510 S	1000	25	85	300	1.2	12.5	5	500	150	2500
ST2512 S	1200	25	85	300	1.2	12.5	5	500	150	2500
ST2514 S	1400	25	85	300	1.2	12.5	5	500	150	2500
ST2516 S	1600	25	85	300	1.2	12.5	5	500	150	2500
ST2518 S	1800	25	85	300	1.2	12.5	5	500	150	2500
ST3506 S	600	35	85	400	1.2	17.5	5	500	150	2500
ST3508 S	800	35	85	400	1.2	17.5	5	500	150	2500
ST3510 S	1000	35	85	400	1.2	17.5	5	500	150	2500
ST3512 S	1200	35	85	400	1.2	17.5	5	500	150	2500
ST3514 S	1400	35	85	400	1.2	17.5	5	500	150	2500
ST3516 S	1600	35	85	400	1.2	17.5	5	500	150	2500
ST3518 S	1800	35	85	400	1.2	17.5	5	500	150	2500
ST5006 S	600	50	85	500	1.2	25	5	500	150	2500
ST5008 S	800	50	85	500	1.2	25	5	500	150	2500
ST5010 S	1000	50	85	500	1.2	25	5	500	150	2500
ST5012 S	1200	50	85	500	1.2	25	5	500	150	2500
ST5014 S	1400	50	85	500	1.2	25	5	500	150	2500
ST5016 S	1600	50	85	500	1.2	25	5	500	150	2500
ST5018 S	1800	50	85	500	1.2	25	5	500	150	2500

55A and 60a 3 phase bridge rectifier

TYPE	Repetitive Peak Reyerse Voltage	Maximum Average Rectified Current		Maximum Forward Peak Surge Current	Maximum Forward Voltage		Maximum Reverse Current		Junction Temperature	Insulating Voltage
	VRRM	IF(AV)@Tc		IFSM	VF @IF		IRRM @TA		TJM	VISO
	(V)	(A)	(℃)	(A)	(V)	(A)	25℃(μA)	125℃(μA)	(℃)	(V)
ST5506 S	600	55	85	550	1.2	27.5	5	500	150	2500
ST5508 S	800	55	85	550	1.2	27.5	5	500	150	2500
ST5510 S	1000	55	85	550	1.2	27.5	5	500	150	2500
ST5512 S	1200	55	85	550	1.2	27.5	5	500	150	2500
ST5514 S	1400	55	85	550	1.2	27.5	5	500	150	2500
ST5516 S	1600	55	85	550	1.2	27.5	5	500	150	2500
ST5518 S	1800	55	85	550	1.2	27.5	5	500	150	2500
ST6006 S	600	60	85	600	1.2	30	5	500	150	2500
ST6008 S	800	60	85	600	1.2	30	5	500	150	2500
ST6010 S	1000	60	85	600	1.2	30	5	500	150	2500
ST6012 S	1200	60	85	600	1.2	30	5	500	150	2500
ST6014 S	1400	60	85	600	1.2	30	5	500	150	2500
ST6016 S	1600	60	85	600	1.2	30	5	500	150	2500
ST6018 S	1800	60	85	600	1.2	30	5	500	150	2500
