Inductive sensor LM30 straight connector type
Home Products Proximity Photoelectric SensorInductive proximity sensor (Cylinder type)Inductive sensor LM30 straight connector type
Product Details

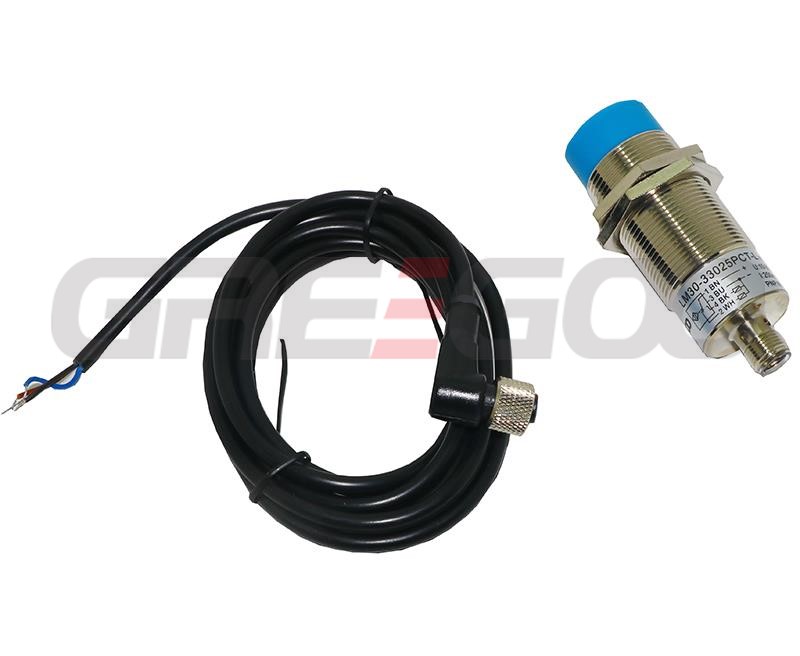

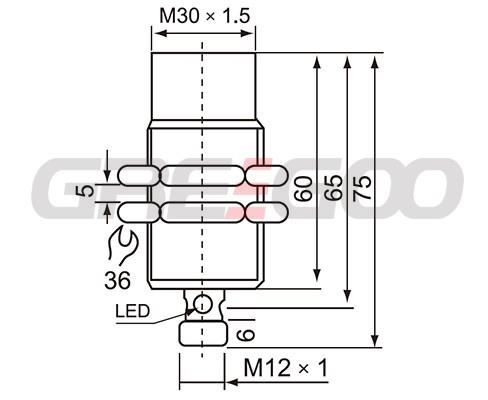

Inductive sensor LM30 straight connector type
Model NO. | Detection distance | Working voltage | Output | Flush | |
Form | State | ||||
LM30-3010NAT1 | 10mm | DC6-36V | NPN | NO | Flush |
LM30-3010NBT1 | 10mm | DC6-36V | NPN | NC | Flush |
LM30-3010NCT1 | 10mm | DC6-36V | NPN | NO NC | Flush |
LM30-3010PAT1 | 10mm | DC6-36V | PNP | NO | Flush |
LM30-3010PBT1 | 10mm | DC6-36V | PNP | NC | Flush |
LM30-3010PCT1 | 10mm | DC6-36V | PNP | NO NC | Flush |
LM30-3010LAT1 | 10mm | DC6-36V | Two wire system | NO | Flush |
LM30-3010LBT1 | 10mm | DC6-36V | Two wire system | NC | Flush |
LM30-2010AT1 | 10mm | AC90-250V | SCR Control label silicon | NO | Flush |
LM30-2010BT1 | 10mm | AC90-250V | SCR Control label silicon | NC | Flush |
LM30-3015NAT1 | 15mm | DC6-36V | NPN | NO | Non-flush |
LM30-3015NBT1 | 15mm | DC6-36V | NPN | NC | Non-flush |
LM30-3015NCT1 | 15mm | DC6-36V | NPN | NO NC | Non-flush |
LM30-3015PAT1 | 15mm | DC6-36V | PNP | NO | Non-flush |
LM30-3015PBT1 | 15mm | DC6-36V | PNP | NC | Non-flush |
LM30-3015PCT1 | 15mm | DC6-36V | PNP | NO NC | Non-flush |
LM30-3015LAT1 | 15mm | DC6-36V | Two wire system | NO | Non-flush |
LM30-3015LBT1 | 15mm | DC6-36V | Two wire system | NC | Non-flush |
LM30-2015AT1 | 15mm | AC90-250V | SCR Control label silicon | No | Non-flush |
LM30-2015BT1 | 15mm | AC90-250V | SCR Control label silicon | NC | Non-flush |
