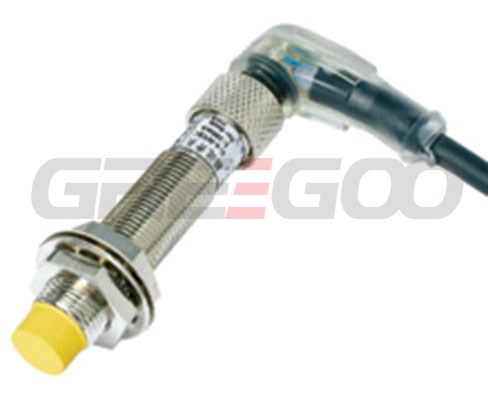

Inductive sensor LM12 angle connector type
Home Products Proximity Photoelectric SensorInductive proximity sensor (Cylinder type)Inductive sensor LM12 angle connector type
Product Details
Inductive sensor LM12 angle connector type
| Model NO. | Detection distance | Working voltage | Output | Flush | |
| Form | State | ||||
| LM12-3002NAT2 | 2mm | DC6-36V | NPN | NO | Flush |
| LM12-3002NBT2 | 2mm | DC6-36V | NPN | NC | Flush |
| LM12-3002NCT2 | 2mm | DC6-36V | NPN | NO NC | Flush |
| LM12-3002PAT2 | 2mm | DC6-36V | PNP | NO | Flush |
| LM12-3002PBT2 | 2mm | DC6-36V | PNP | NC | Flush |
| LM12-3002PCT2 | 2mm | DC6-36V | PNP | NO NC | Flush |
| LM12-3002LAT2 | 2mm | DC6-36V | Two wire system | NO | Flush |
| LM12-3002LBT2 | 2mm | DC6-36V | Two wire system | NC | Flush |
| LM12-2002AT2 | 2mm | AC90-250V | SCR Control label silicon | NO | Flush |
| LM12-2002BT2 | 2mm | AC90-250V | SCR Control label silicon | NC | Flush |
| LM12-3004NAT2 | 4mm | DC6-36V | NPN | NO | Non-flush |
| LM12-3004NBT2 | 4mm | DC6-36V | NPN | NC | Non-flush |
| LM12-3004NCT2 | 4mm | DC6-36V | NPN | NO NC | Non-flush |
| LM12-3004PAT2 | 4mm | DC6-36V | PNP | NO | Non-flush |
| LM12-3004PBT2 | 4mm | DC6-36V | PNP | NC | Non-flush |
| LM12-3004PCT2 | 4mm | DC6-36V | PNP | NO NC | Non-flush |
| LM12-3004LAT2 | 4mm | DC6-36V | Two wire system | NO | Non-flush |
| LM12-3004LBT2 | 4mm | DC6-36V | Two wire system | NC | Non-flush |
| LM12-2004AT2 | 4mm | AC90-250V | SCR Control label silicon | NO | Non-flush |
| LM12-2004BT2 | 4mm | AC90-250V | SCR Control label silicon | NC | Non-flush |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
