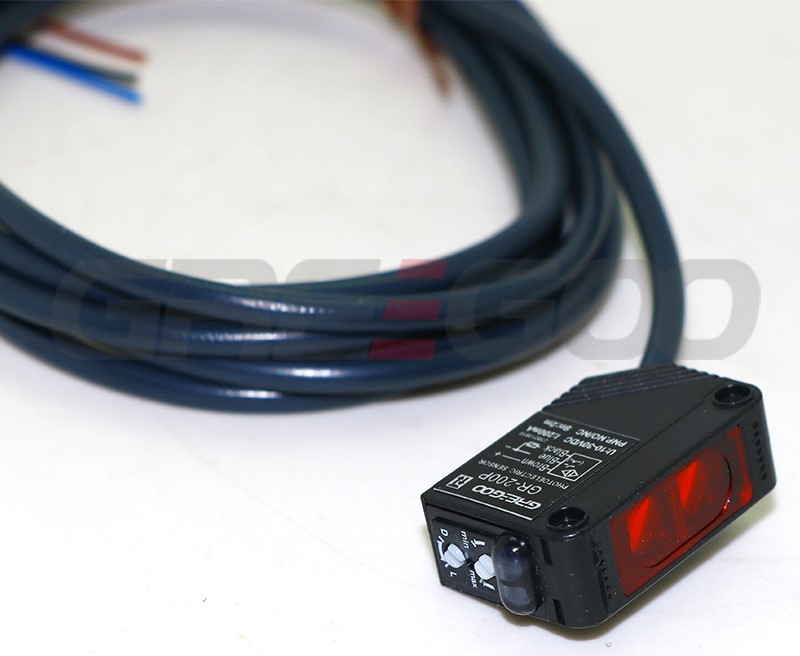

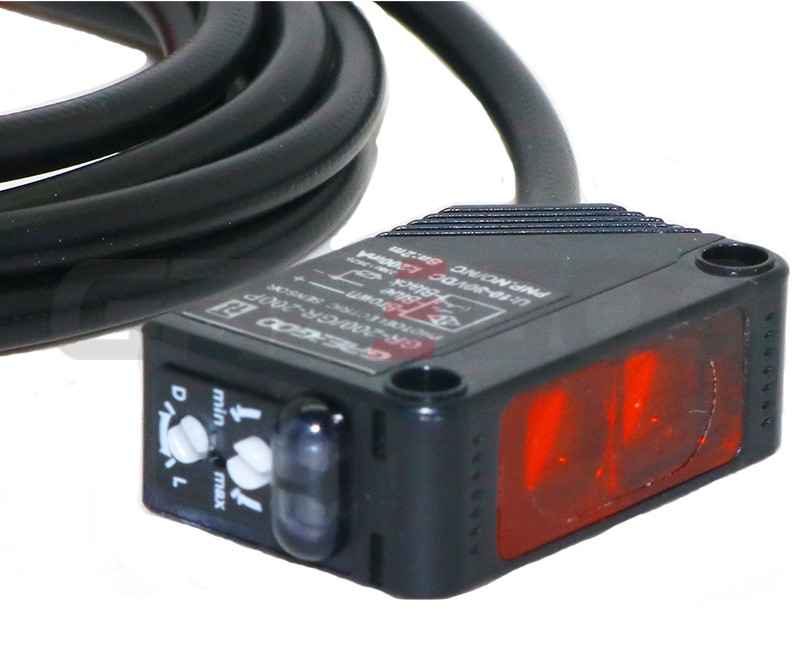

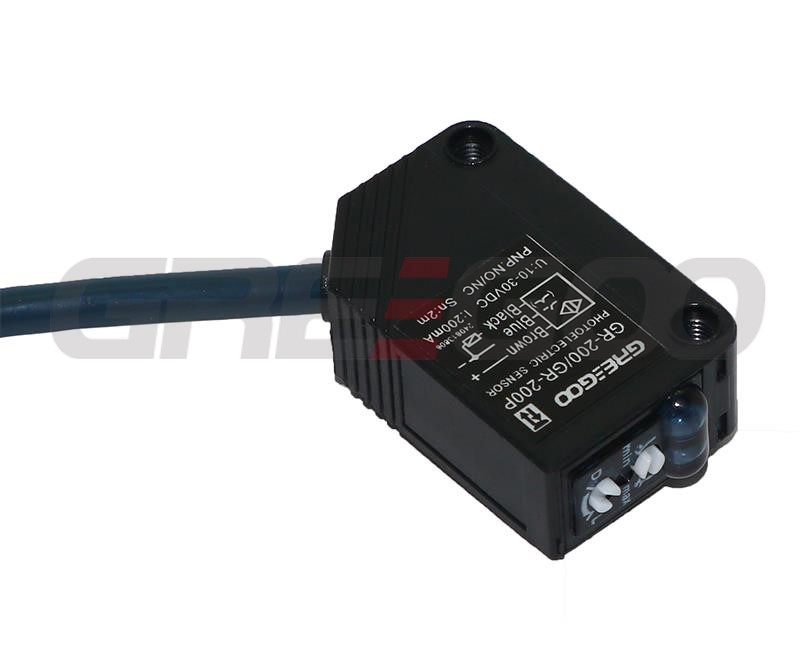

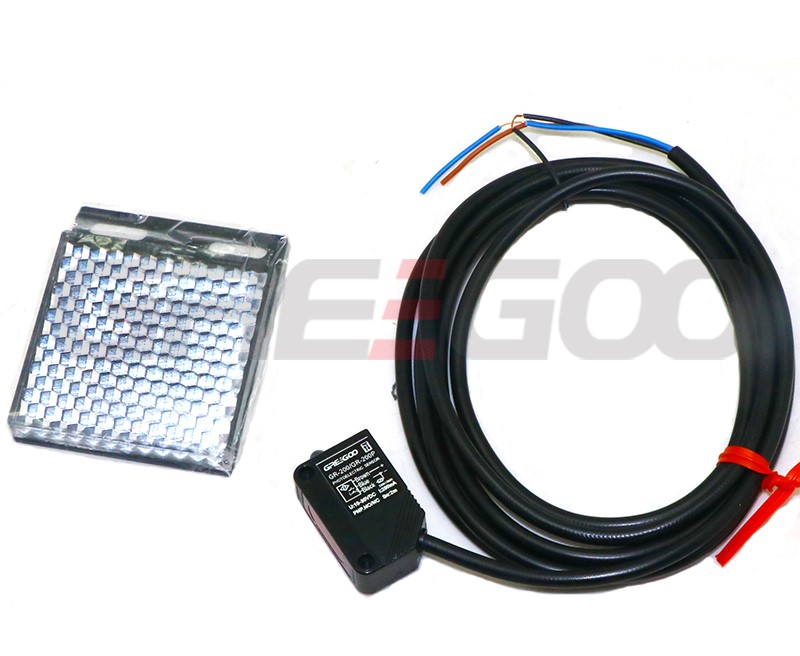

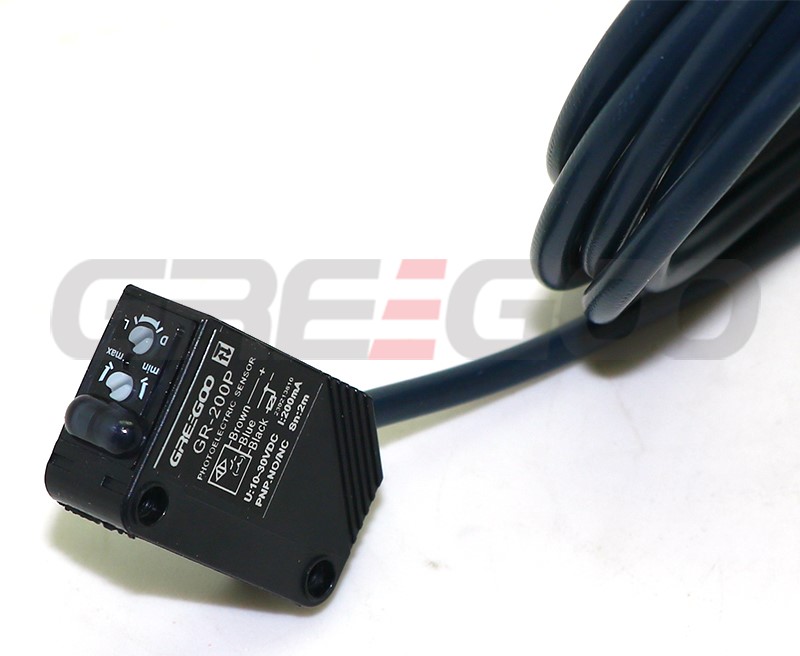

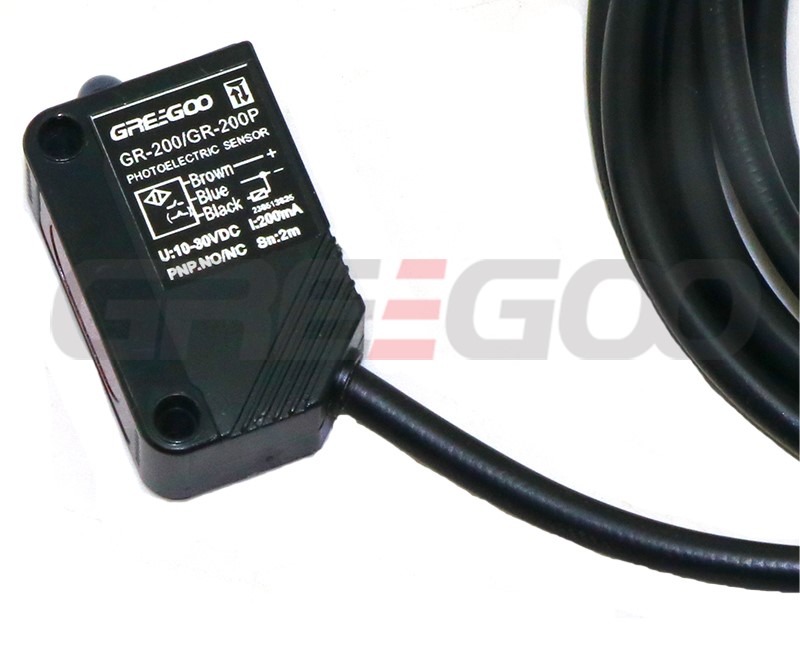

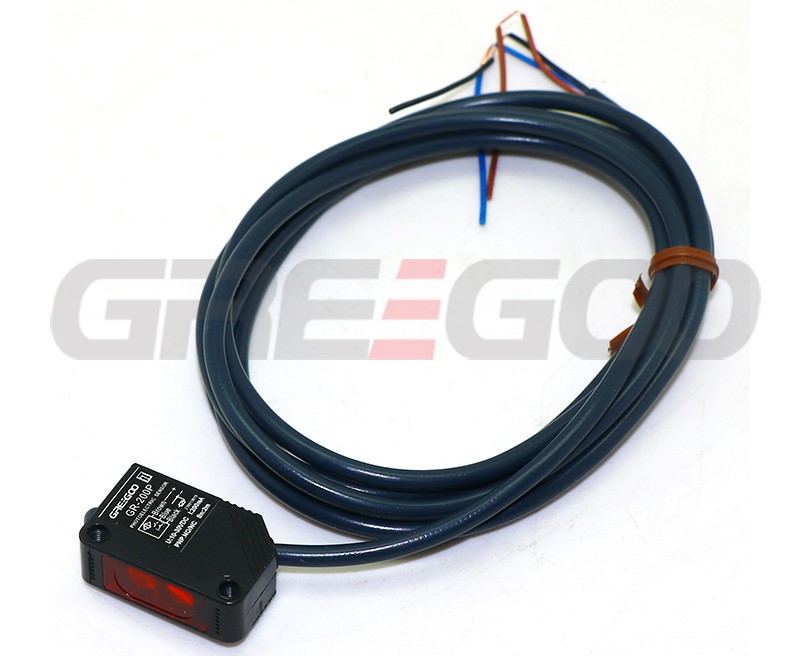

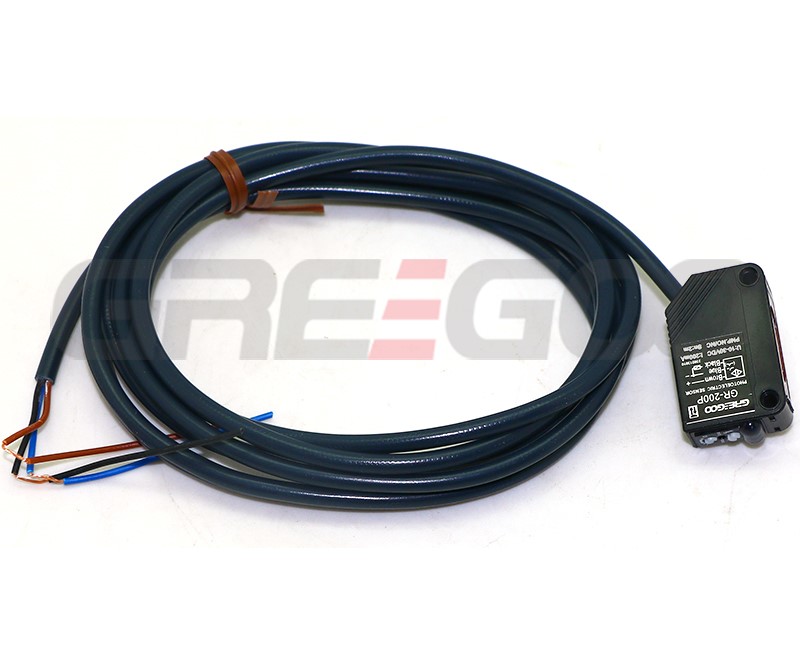

GR-200P GR-80P photoelectric sensor


Model: GR-200P

Sensing range: 2m

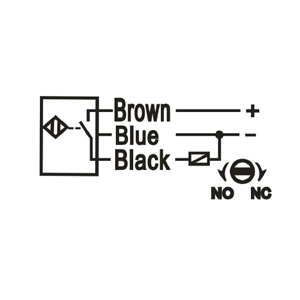

Output function: PNP NO/NC
Operating voltage: 10...30VDC

Load Current: 150mA


Model: GR-80P

Sensing range: 80cm

Output function: PNP NO/NC
Operating voltage: 12...24VDC

Load Current: 100mA






Reverse polarity protection: Yes
Standard sensing object: White paper(100*100mm)
Current consumption: <30mA
Insulated resistance: >20MΩ

Movement and reposition: <1 ms


Voltage resistance: AC100V 50/60HZ 1min

Smooth the illumination: Sunlight: less than 2000Lux


Use of humidity range: 35-85%RH
Housing material: Plastic
Ambient temperature: -25 to 70℃
Protection grade: IP67

Switching status: Red LED

Certification standard: IEC
