Photoelectric Sensor G30
Home Products Proximity Photoelectric SensorPhotoelectric SensorsPhotoelectric Sensor G30
Product Details

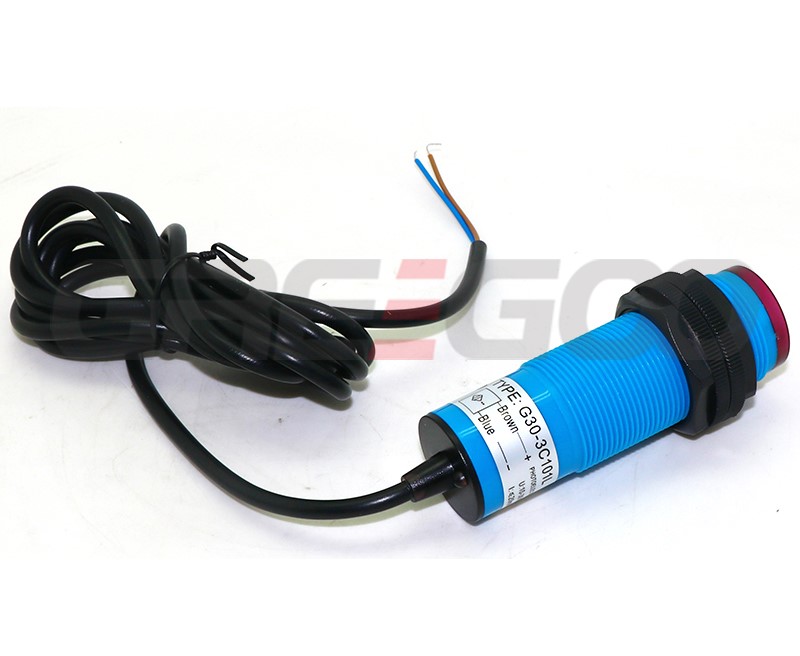

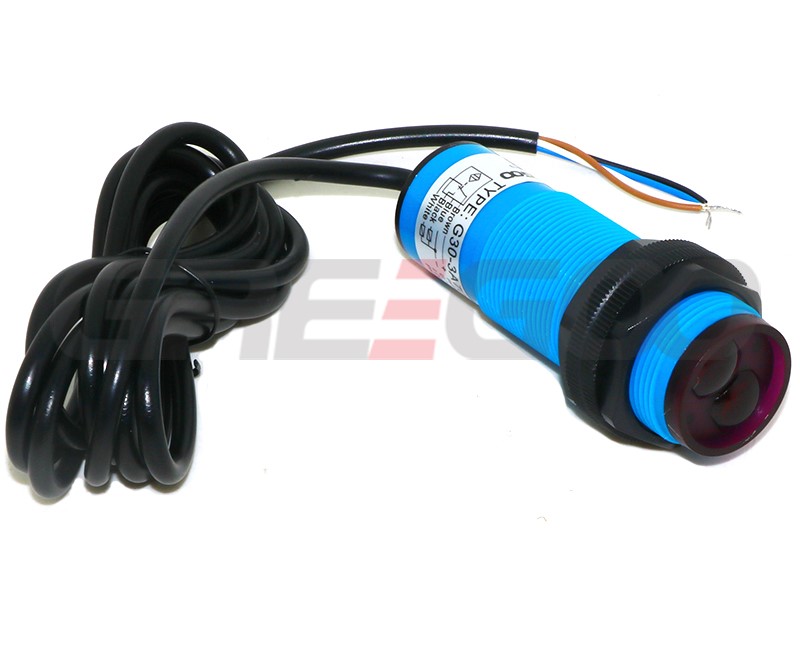

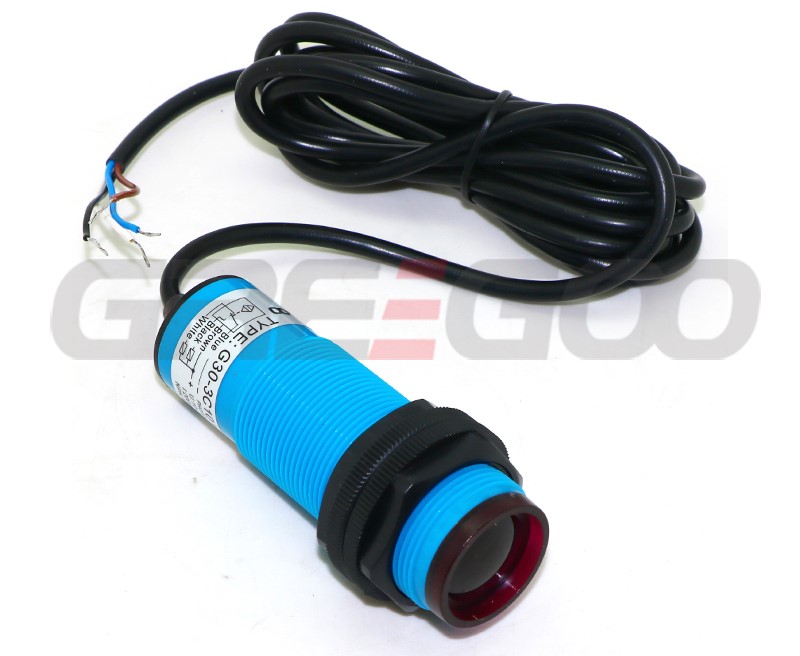

Photoelectric Sensor G30
| Model NO. | Detection distance | Working voltage | Output | Detection way | |
| Form | State | ||||
| G30 -3A 70NA | 20 -100cm | DC10-30V | NPN | NO | Diffuse type |
| G30 -3A 70NB | 20 -100cm | DC10-30V | NPN | NC | Diffuse type |
| G30 -3A 70NC | 20 -100cm | DC10-30V | NPN | NO NC | Diffuse type |
| G30 -3A 70PA | 20 -100cm | DC10-30V | PNP | NO | Diffuse type |
| G30 -3A 70PB | 20 -100cm | DC10-30V | PNP | NO | Diffuse type |
| G30 -3A 70PC | 20 -100cm | DC10-30V | PNP | NO NC | Diffuse type |
| G30 -2A 70LA | 20 -100cm | AC90-250V | SCR Control lable silicon | NO | Diffuse type |
| G30 -2A 70LB | 20 -100cm | AC90-250V | SCR Control lable silicon | NC | Diffuse type |
| G30-3B3NA | 3 -5cm | DC10-30V | NPN | NO | Retroreflective |
| G30-3B3NB | 3 -5cm | DC10-30V | NPN | NC | Retroreflective |
| G30-3B3NC | 3 -5cm | DC10-30V | NPN | NO NC | Retroreflective |
| G30-3B3PA | 3 -5cm | DC10-30V | PNP | NO | Retroreflective |
| G30-3B3PB | 3 -5cm | DC10-30V | PNP | NC | Retroreflective |
| G30-3B3PC | 3 -5cm | DC10-30V | PNP | NO NC | Retroreflective |
| G30-2B3LA | 3 -5cm | AC90-250V | SCR Control lable silicon | NO | Retroreflective |
| G30-2B 3LB | 3 -5cm | AC90-250V | SCR Control lable silicon | NC | Retroreflective |
| G30 -3C 102NA | 10m | DC10-30V | NPN | NO | Through beam |
| G30 -3C 101NB | 10m | DC10-30V | NPN | NC | Through beam |
| G30 -3C 101NC | 10m | DC10-30V | NPN | NO NC | Through beam |
| G30 -3C 101PA | 10m | DC10-30V | PNP | NO | Through beam |
| G30 -3C 101PB | 10m | DC10-30V | PNP | NC | Through beam |
| G30 -3C 101PC | 10m | DC10-30V | PNP | NO NC | Through beam |
| G30 -2C 101LA | 10m | AC90-250V | SCR Control lable silicon | NO | Through beam |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
