GM2-100/160/250/400/630A MCCB with earth-leakage protection
Home Products Motor ProtectionMCCB Moulded Case Circuit BreakersGM2-100/160/250/400/630A MCCB with earth-leakage protection
Product Details

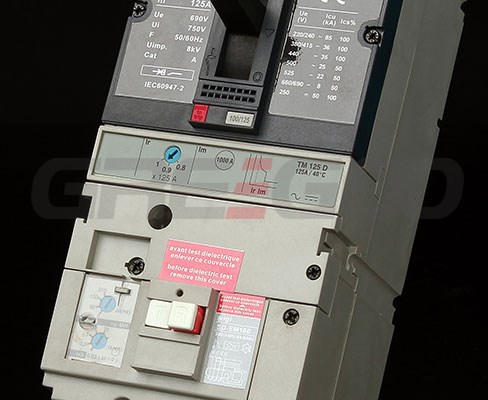

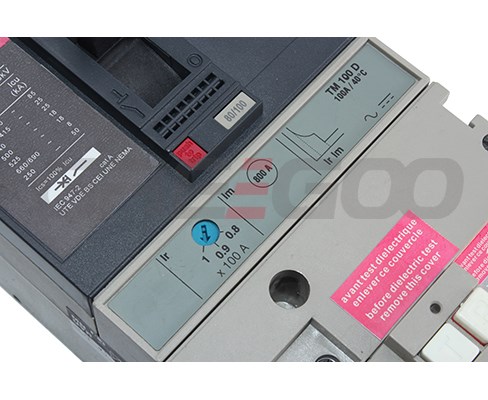

GM2-100/160/250/400/630A MCCB with earth-leakage protection

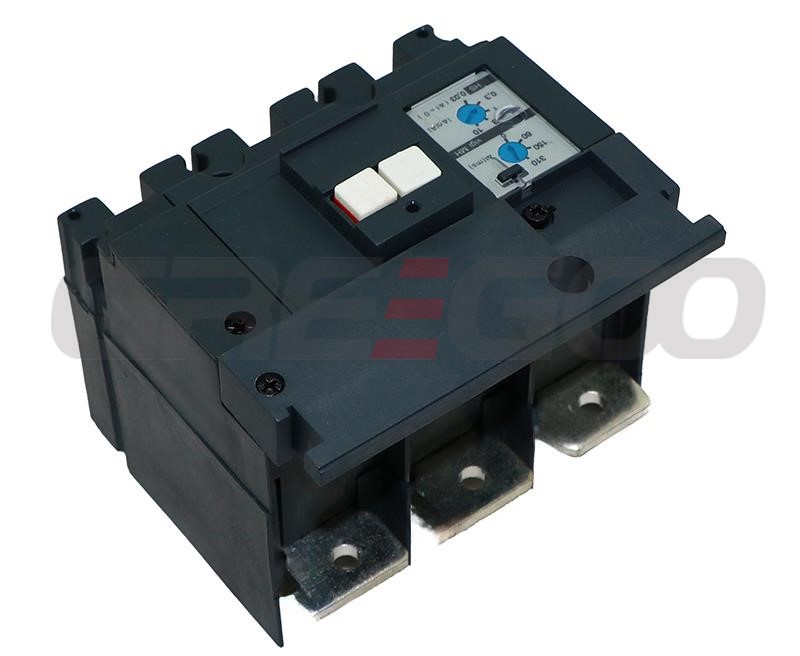

| Vigi ME | Vigi MH | Vigi MB | |
| Number of poles | 3, 4(1) | 3, 4(1) | 3, 4(1) |
| GM2-100 | ■ | ■ | - |
| GM2-160 | ■ | ■ | - |
| GM2-250 | - | ■ | - |
| GM2-400 | - | - | ■ |
| GM2-630 | - | - | ■ |
| Protection characteristics | |||
| Sensitivity | fixed | adjustable | adjustable |
| IΔn (A) | 0.3 | 0.03 - 0.3 - 1 - 3 - 10 | 0.3 - 1 - 3 - 10 - 30 |
| Time delay | |||
| Inten ional | fixed | adjustable | adjustable |
| delay (ms) | < 40 | 0 60(2) 150(2) 310(2) | 0 60 150 310 |
| Max. breaking time (ms) | < 40 | < 40 < 140 < 300 < 800 | < 40 < 140 < 300 < 800 |
| Rated voltage V AC 50/60 Hz | 200...440 | 200... 440 - 440...550 | 200...440 - 440...550 |
(1) Vigi 3P modules may also be used on 3P circuit breakers used for single-phase or two-phase protection.
(2) If the sensitivity is set to 30 mA, there is no time delay, whatever the time-delay setting.
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products

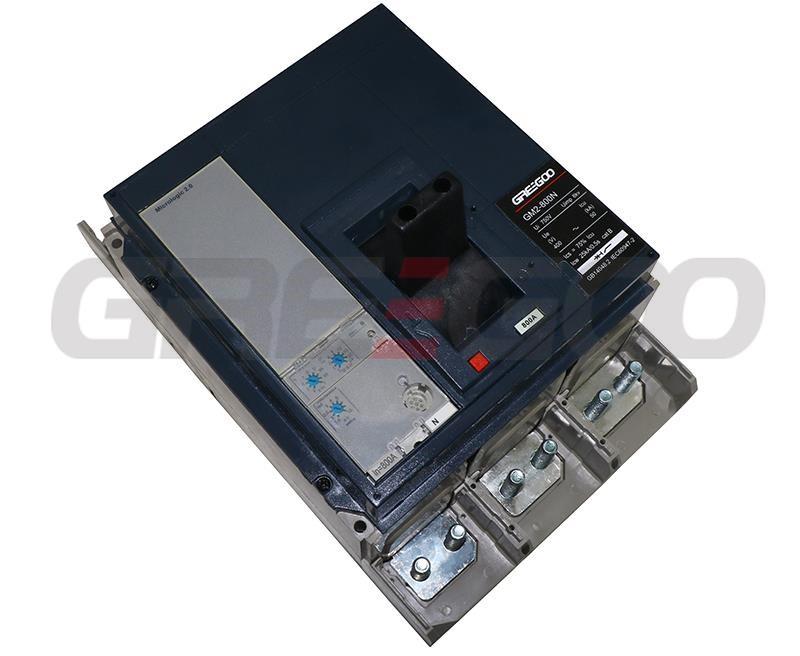

MCCB adjustable GM2-800 Electronic type
