GAD10 Safety Light Curtain

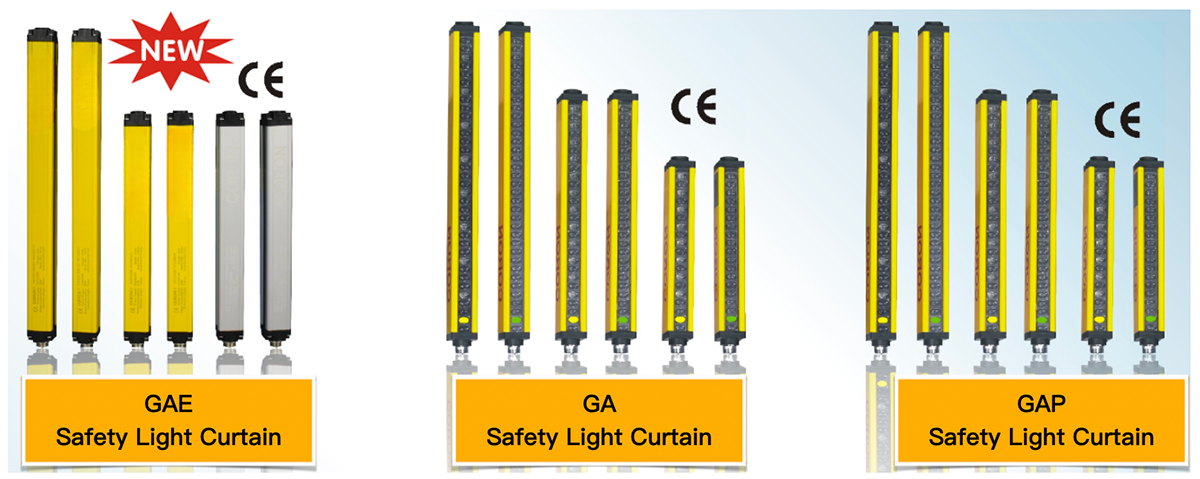

GAE - Economical type, adopts ultra-miniaturized design, compact structure, used for small hazardous machinery and equipment or areas with no or minimal vibration. NPN/PNP output, or with controller, safety relay output.
GAP - Economical type, adopts miniaturized design, compact structure, used for small to medium hazardous machinery and equipment or areas with minimal vibration. Relay output can connect to any load.
GA - Standard type, adopts miniaturized design, compact structure, used for small to medium hazardous machinery and equipment or areas with minimal vibration. NPN/PNP output, or with controller, safety relay output.

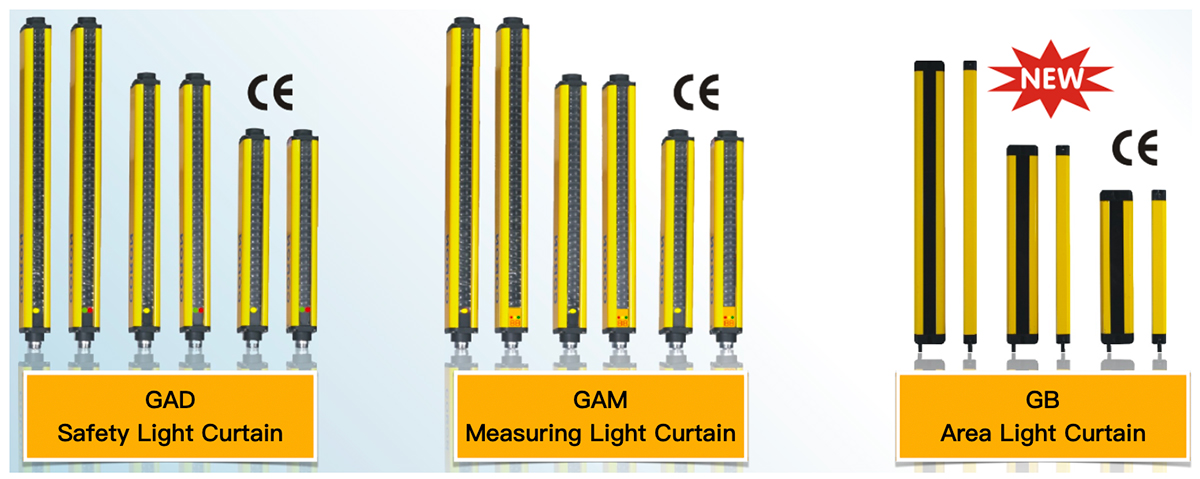

GAD - High-performance type, robust appearance, adopts high-quality protective structure and anti-vibration properties, can be used for large, heavy hazardous equipment and areas with vibration or harsh working environments. NPN/PNP output or with controller, safety relay output.
Select the required protection height and protection length of the safety light curtain. According to the protection height and protection length requirements of the object to be protected, choose the safety light curtain that fully covers the protection area.
|
Model |
Beam Spacing |
Protection Height |
Protection Length |
|
GAE |
10mm |
70-950mm |
0-2m |
|
20mm |
60-1900mm |
||
|
30mm |
90-2850mm |
||
|
40mm |
120-3800mm |
||
|
GA/GAP |
20mm |
60-1900mm |
0-3.5m |
|
40mm |
120-3800mm |
||
|
GAD |
10mm |
150-1590mm |
A：0-3m B：0-6m C：0-12m D：0-20m |
|
20mm |
210-3180mm |
||
|
30mm |
150-4770mm |
||
|
40mm |
120-6360mm |
||
|
80mm |
240-5680mm |
| Output Mode |
Relay Output | NPN and PNP Output | Dual NPN Output | Dual PNP Output | With Controller Output |
|---|---|---|---|---|---|
| Description | The safety light curtain has a built-in small relay, a set of normally open and normally closed passive contacts output, which can connect to any load. | NPN and PNP output simultaneously, you can choose one output according to actual needs, can connect to PLC, PC, or external relay. | Dual NPN output can connect to two loads, PLC, PC, or external relay, or connect to safety relay output. | Dual PNP output can connect to two loads, PLC, PC, or external relay, or connect to safety relay output. | The controller can provide the working power required by the safety light curtain, and the safety light curtain can directly drive large capacity loads through the controller. |
| Applicable | GAP | GAE GA GAD | GAE GA GAD | GAE GA GAD | GAE GA GAD |
Beam Spacing 10mm 20mm 30mm 40mm 80mm Minimum Protected Object φ15mm φ25mm φ35mm φ45mm φ85mm Protection Finger protection or objects not smaller than φ15mm Palm protection or objects not smaller than φ25mm Palm protection/Wrist protection or objects not smaller than φ35mm Arm protection/Body protection or objects not smaller than φ45mm Body protection or objects not smaller than φ85mm
|
Model |
Optical axis distance |
Detection distance |
Protection height |
Optical axis number |
Type of output |
|
GAD10△-8□ |
10mm |
|
70mm |
8 |
□1=None (Controler output) □2=S (NPN/PNP output) |
|
GAD10△-16□ |
10mm |
△1:0-3m △2:0-6m △3:0-12m |
150mm |
16 |
|
|
GAD10△-24□ |
10mm |
230mm |
24 |
||
|
GAD10△-32□ |
10mm |
310mm |
32 |
||
|
GAD10△-40□ |
10mm |
390mm |
40 |
||
|
GAD10△-48□ |
10mm |
470mm |
48 |
||
|
GAD10△-56□ |
10mm |
550mm |
56 |
||
|
GAD10△-64□ |
10mm |
630mm |
64 |
||
|
GAD10△-72□ |
10mm |
710mm |
72 |
A safety light curtain is a device used in industrial automation and machinery safety. It creates an invisible curtain of infrared beams by emitting and receiving infrared light. When an object (such as a person's hand or body) passes through the curtain, the beams are interrupted, triggering a safety mechanism that stops the machine to prevent injury.
Safety light curtains are typically used in the following scenarios:
- Machine Guarding: Installing safety light curtains around dangerous machinery can prevent operators from accidentally entering hazardous areas.
- Automated Production Lines: Installing safety light curtains at critical points on automated production lines ensures that the line stops immediately if someone enters a dangerous area.
- Robotic Workstations: Installing safety light curtains around robotic workstations can prevent people from accidentally entering the robot's working area, avoiding collisions or other accidents.
The main features of safety light curtains include:
- Fast Response Time: They can detect beam interruptions and trigger safety mechanisms in a very short time.
- High Resolution: They can detect very small objects, ensuring higher safety.
- Various Protection Heights: Different heights of light curtains can be selected according to needs to suit different application scenarios.
- Easy Installation and Maintenance: They are usually designed in a modular structure, making them easy to install and maintain.
