FRED modules
Home Products IGBT Power ModuleFast Recovery Diode ModulesFRED modules
Product Details
FRED modules

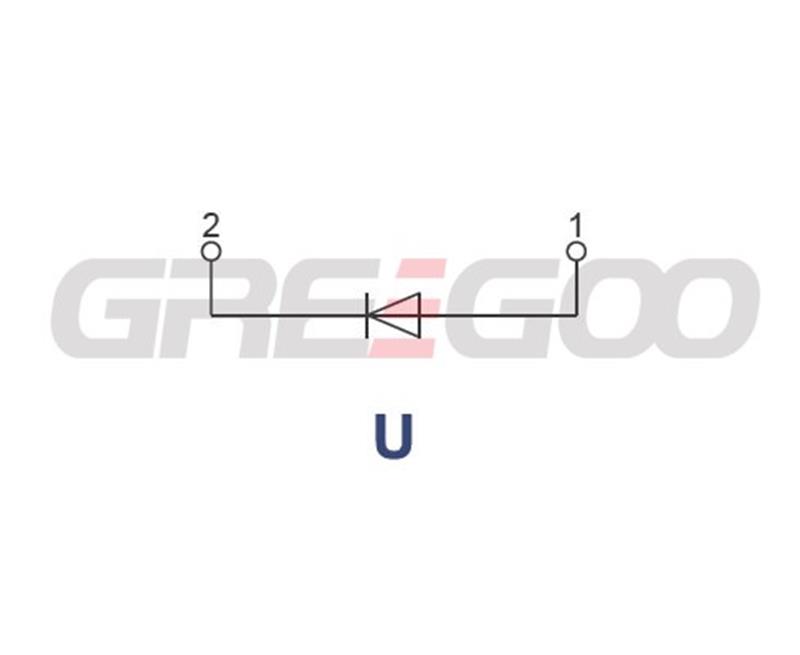

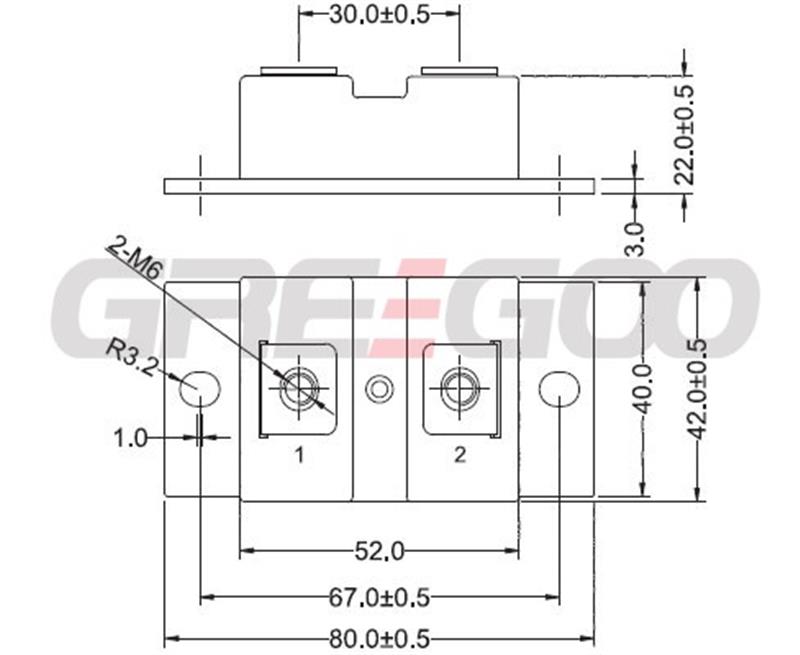

| Part | Vrrm | If(av) | Ifsm | Vf @ If Tj=125℃ | Trr | Rθjc | Inside | Package | |
| Number | Duty=0.5 | t=10ms | Tj=25℃ | Circuit | Dimensions | ||||
| Tc=110℃ | Tj=45℃ | ||||||||
| (V) | (A) | (A) | (V) | (A) | (ns) | ( ℃/W) | (MM) | ||
| GF300YB050U | 500 | 300 | 3800 | 1.2 | 300 | 160 | 0.11 | U | 80X42X22 |

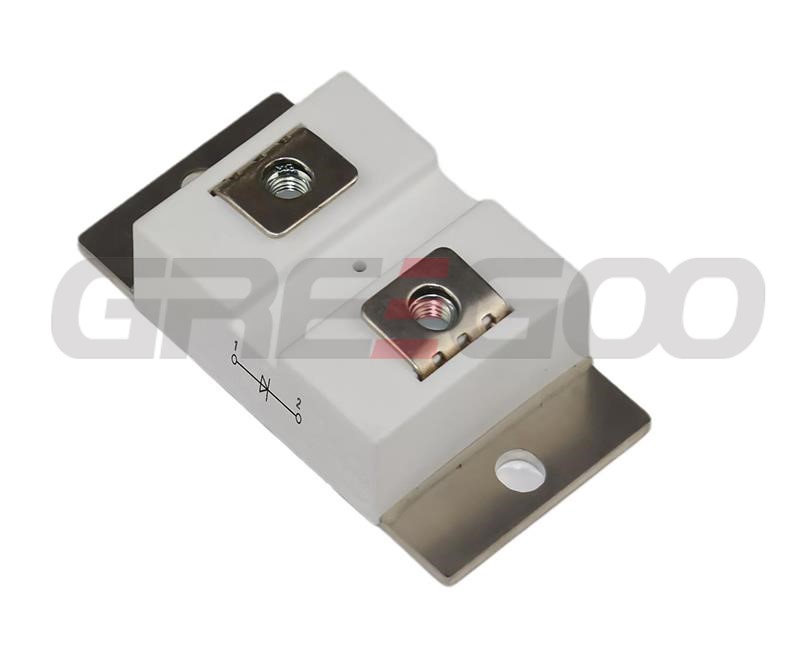

| GF300YB070U | 700 | 300 | 3800 | 1.38 | 300 | 121 | 0.12 | U | 80X42X22 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products
Fast recovery diode module
Ultra-Fast Soft Recovery Diode Module MFDK200-400
View More

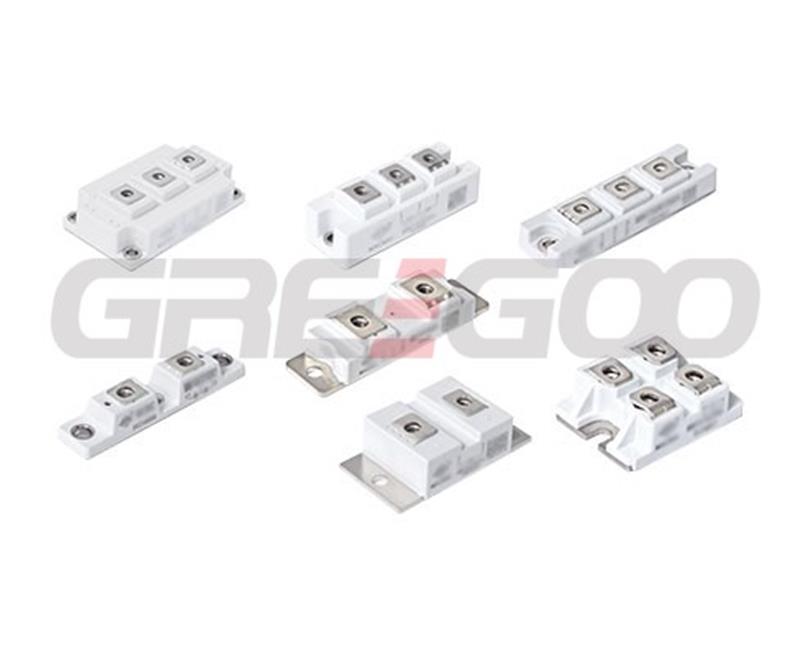

FRED modules
