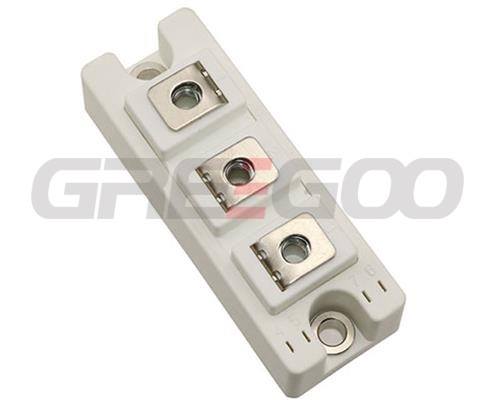

FRED Fast Recovery Epitaxial Diode Module
FRED Fast Recovery Epitaxial Diode Module
VRRM＝600V，1200V
IF（AV）＝75A～800A
VISO＝2500V（RMS）
|
Part No. |
VRRM
V |
IRRM@125℃ V=VRRM
mA |
IF(AV)TC TC=75℃
A |
IF(RMS) Tj=75℃
A |
IF(RMS) f=20KHZ TC=85℃ A |
IFSM 10ms 45℃ A |
VFM@IF(AV) Tj=25℃
V A |
trr Typ. 45℃ ns |
Rthjc
K/W |
PD max
w |
Case Style |
| MZC100TS60U MZK100TS60U |
600 | 5 | 2×100 | 2×140 | 2×70 | 2×1000 | 1.6 100 | 100 | 0.50 | 250 | TS |
| MZC150TS60U MZK150TS60U |
600 | 5 | 2×150 | 2×230 | 2×105 | 2×1500 | 1.6 150 | 100 | 0.35 | 350 | TS |
| MZC200TS60U MZK200TS60U |
600 | 10 | 2×200 | 2×300 | 2×140 | 2×2000 | 1.7 200 | 125 | 0.20 | 416 | TS |
| MZC300TS60U MZK300TS60U |
600 | 15 | 2×300 | 2×420 | 2×210 | 2×3000 | 1.7 300 | 150 | 0.18 | 690 | TS |
| MZC400TS60U MZK400TS60U |
600 | 20 | 2×400 | 2×560 | 2×280 | 2×4000 | 1.7 400 | 180 | 0.18 | 690 | TS |
| MZC75TS120U MZK75TS120U |
1200 | 5 | 2×75 | 2×105 | 2×53 | 2×750 | 1.8 75 | 130 | 0.35 | 350 | TS |
| MZC100TS120U MZK100TS120U |
1200 | 10 | 2×100 | 2×140 | 2×70 | 2×1000 | 1.9 100 | 135 | 0.30 | 416 | TS |
| MZC150TS120U MZK150TS120U |
1200 | 12 | 2×150 | 2×210 | 2×105 | 2×1500 | 1.9 150 | 145 | 0.20 | 625 | TS |
| MZC200TS120U MZK200TS120U |
1200 | 15 | 2×200 | 2×280 | 2×140 | 2×2000 | 1.9 200 | 155 | 0.18 | 695 | TS |
| MZC300TS120U MZK300TS120U |
1200 | 20 | 2×300 | 2×420 | 2×210 | 2×3000 | 1.9 300 | 190 | 0.10 | 1250 | TS |
| MZC400TS120U MZK400TS120U |
1200 | 30 | 2×400 | 2×560 | 2×280 | 2×4000 | 1.9 400 | 220 | 0.10 | 1250 | TS |
| MZD600DD60U | 600 | 30 | 600 | 840 | 420 | 6000 | 1.65 600 | 220 | 0.09 | 1400 | DD |
| MZD800DD60U | 600 | 40 | 800 | 1200 | 560 | 8000 | 1.65 800 | 240 | 0.07 | 1700 | DD |
| MZD400DD120U | 1200 | 30 | 400 | 560 | 280 | 4000 | 1.9 400 | 230 | 0.09 | 1400 | DD |
| MZD600DD120U | 1200 | 40 | 600 | 840 | 420 | 6000 | 1.9 600 | 250 | 0.08 | 1500 | DD |
