GVC5N-80A/1.5KV Vacuum Contactor (newly Optimized design)
Home Products Vacuum Contactor1.14KV Vacuum ContactorGVC5N-80A/1.5KV Vacuum Contactor (newly Optimized design)
Product details
GVC5N-80A/1.5KV Vacuum Contactor (newly Optimized design)
| Part numbers | GVC5N-80A/1.5KV | |
| Nominal Current | A | 80 |
| Nominal Voltage | kV | 1.5 |
| Rated Making Capacity | A | 800 |
| Rated Breaking Capacity | A | 640 |
| Pick-up power | VA | 240 |
| Holding Power | W | 10 |
| Mechanical Life | Cycles | 1×106 |
| Electric Life | Cycles | 6×104 |
| Control Power Voltage | V(AC/DC) | 36/220 |
| Auxiliary contacts | 2NO 1NC | |
| Auxiliary contacts capacity | AC-15: Ue: AC380V le:0.7A DC-13: Ue: DC220V le:0.1A |
|
| Weight | Kg | 1.8 |

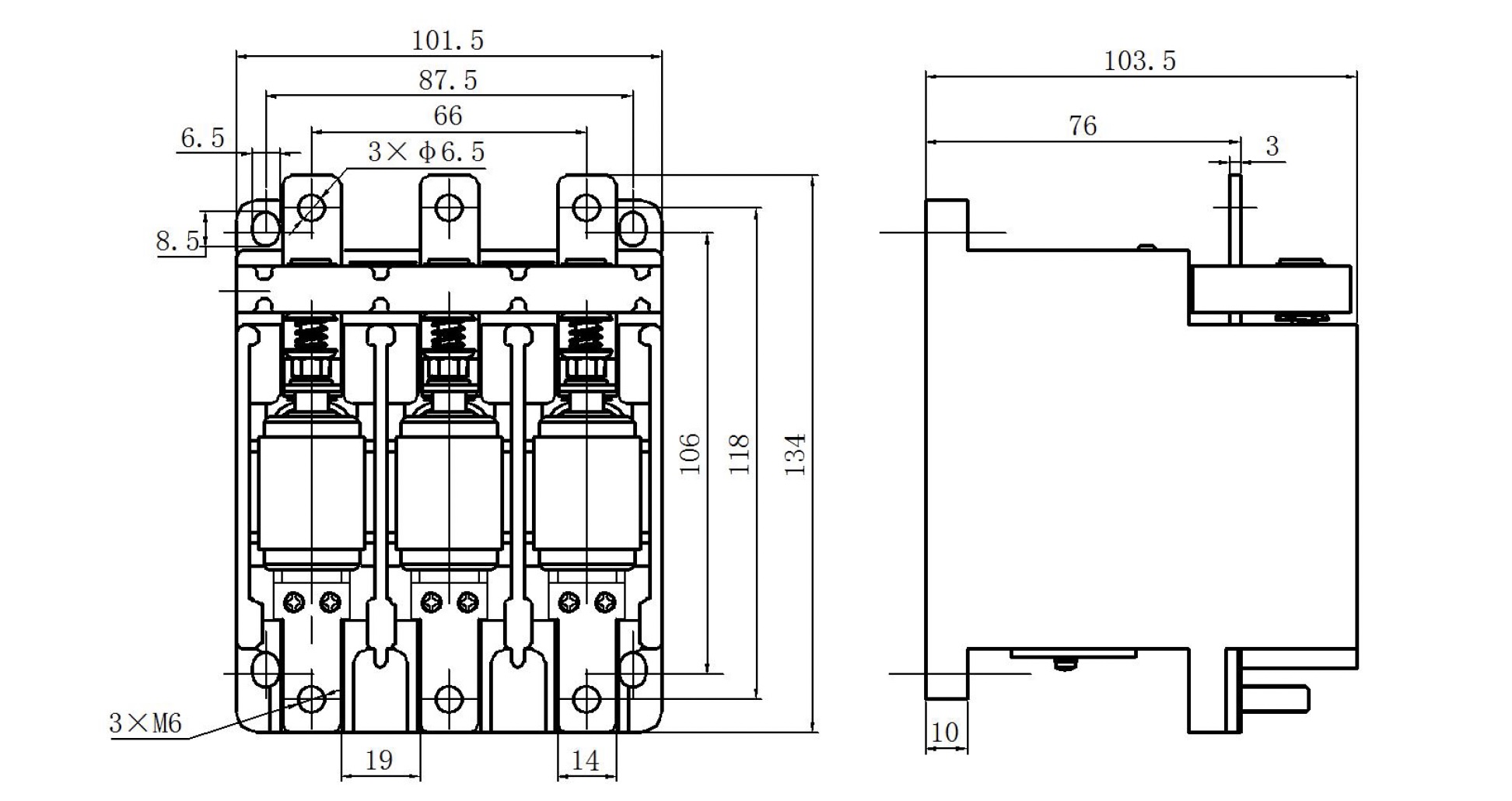

Dimensions
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
