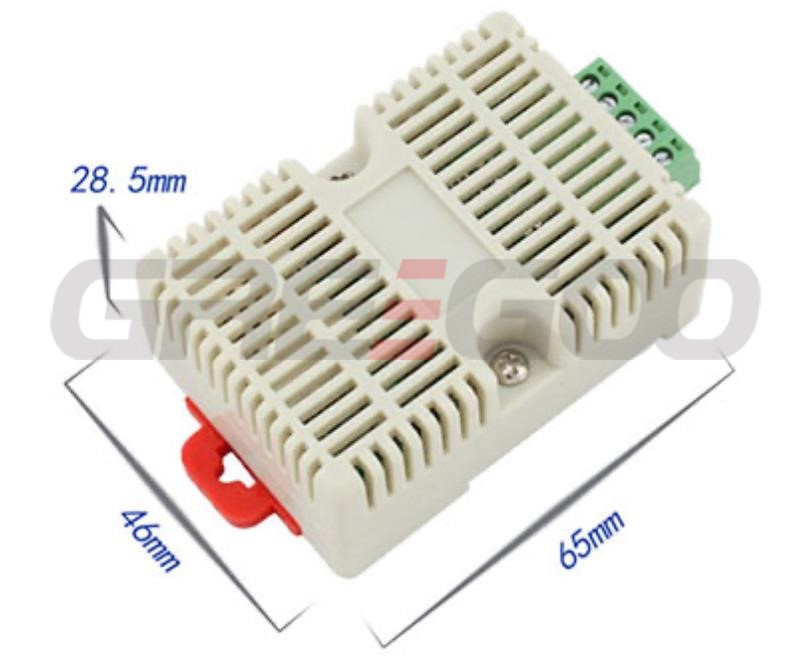

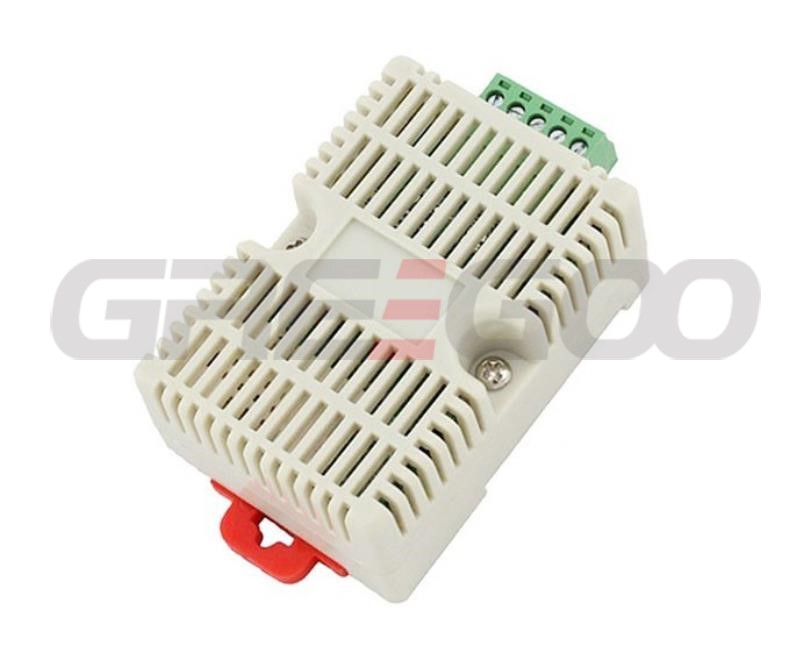

DIN Rail Mounted RS485 Output Temperature and Humidity Transmitter

Temperature Control Instrument - DIN Rail Mounted RS485 Output Temperature and Humidity Transmitter

This DIN rail mounted RS485 output temperature and humidity transmitter is widely used in communication rooms, warehouse buildings, and other places that require temperature and humidity monitoring for self-control purposes. The sensor has three isolated components: input power supply, temperature measuring unit, and signal output. It is safe, reliable, visually appealing, and easy to install. It adopts a measurement unit imported from Switzerland for precise measurements. The dedicated 485 circuit ensures stable communication. It can be powered within a wide voltage range of 10-30V, making it versatile and convenient to install.

  • Equipped with an 86 shell LCD display, it provides real-time temperature and humidity readings.
  • Uses a measurement unit imported from Switzerland for precise measurements.
  • Utilizes a dedicated analog circuit with a wide range of applications.
  • Can be powered within a wide voltage range of 10-30V, offering versatility and convenience.
  • Compatible with both four-wire and three-wire connections.

Power supply: 10-30VDC
Humidity measurement range: 0-100%RH
Temperature measurement range: -40°C to 80°C (customizable)
Humidity accuracy: ±3%RH (default)
Temperature accuracy: ±0.5°C (default)
Storage environment: -40°C to 80°C
Output signals: 485, relay (optional), buzzer (optional)
Parameter configuration: Software settings
